LUMI 10

LUMI 10

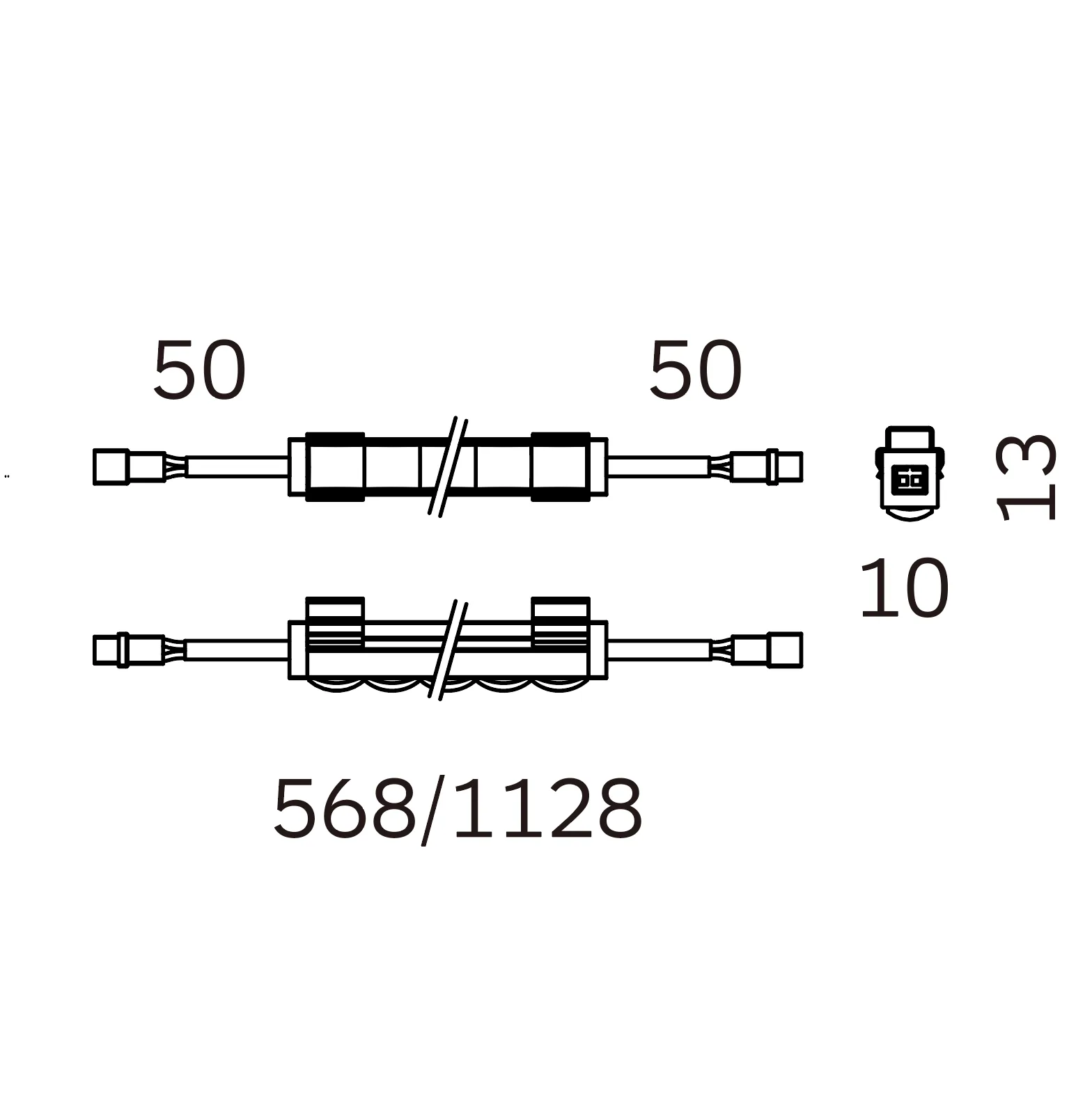

LUMI 10 dimension drawing
Product familyLUMI
Model95.01012
Dimensions568*10*13mm
Power20W/M
Luminous flux989lm
Efficacy97lm/W
Voltage24V
CCT2700K/3000K/4000K
CRICRI90

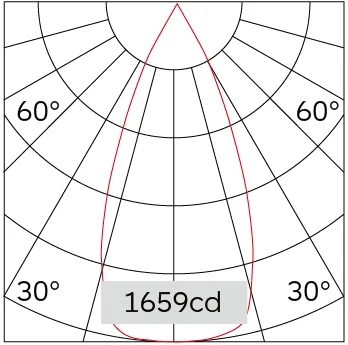

Beam angle45°
IP ratingIP20
FinishWhite/Black
MountingSurface Mounted
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

45°
45°

Accessories

Compatible accessories

Fixed Mounting Spring Clip

Adjustable Mounting Spring clip

Magnet

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 195 KBDownload ↗Product imageWEBP · EN · 11 KBDownload ↗Dimension drawingWEBP · EN · 26 KBDownload ↗
