LUMI 6

LUMI 6

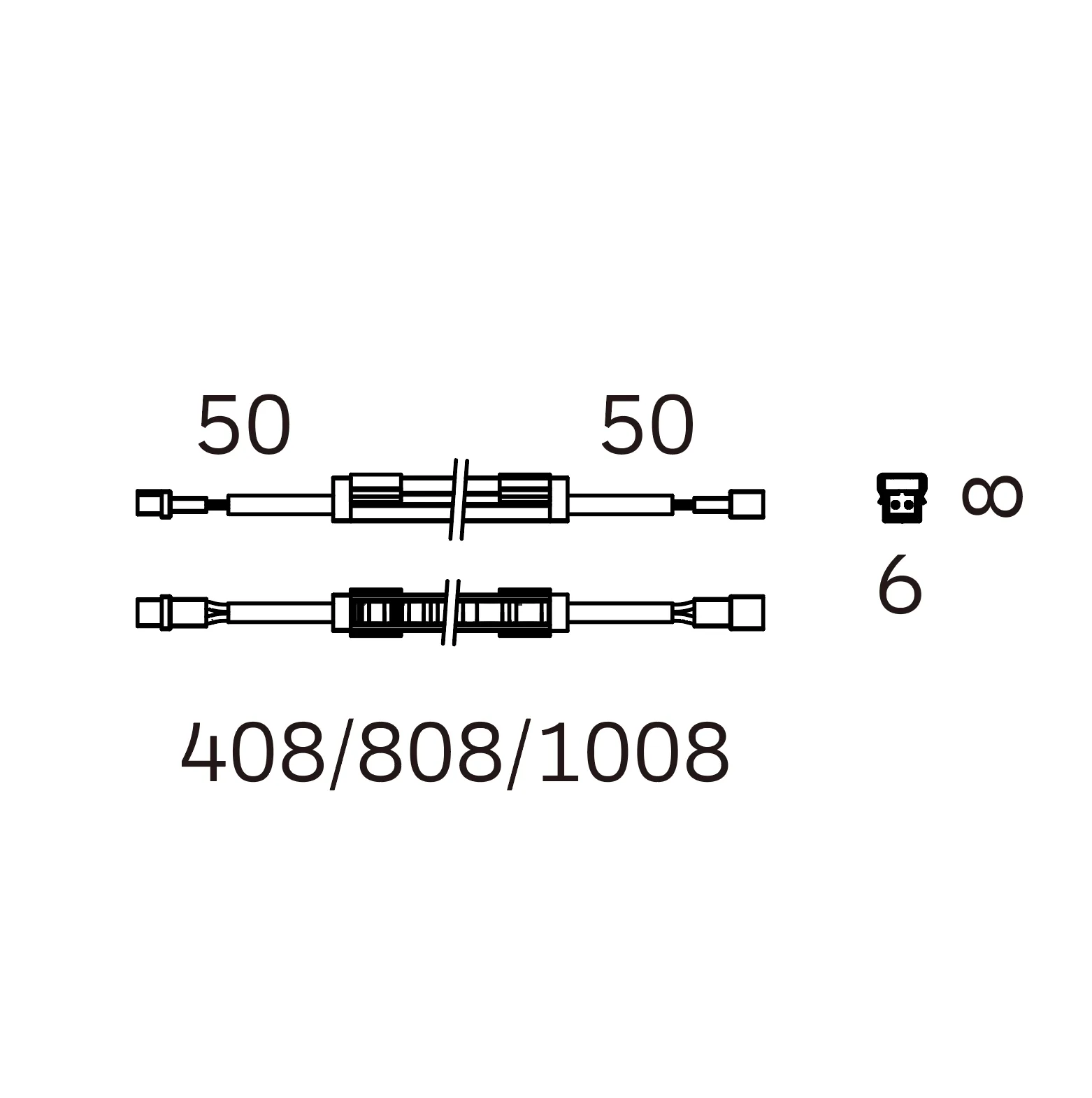

LUMI 6 dimension drawing
Product familyLUMI
Model95.00613
Dimensions408*6*8mm
Power16W/M
Luminous flux648.8lm
Efficacy77lm/W
Voltage24V
CCT2700K/3000K/4000K
CRICRI90

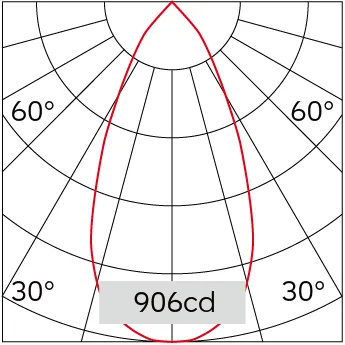

Beam angle52°
IP ratingIP20
FinishWhite/Black
MountingSurface Mounted
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

52°
52°

Accessories

Compatible accessories

Fixed Mounting Spring Clip

Adjustable Mounting Spring clip

Magnet

Technical files

Technical Downloads

DatasheetPDF · EN · Generated PDFDownload ↗IES / LDTZIP · EN · 274 KBDownload ↗Product imageWEBP · EN · 7 KBDownload ↗Dimension drawingWEBP · EN · 25 KBDownload ↗
