Modular System Design
One housing can work with different lighting modules, helping projects maintain a consistent appearance while adapting to changing lighting tasks.
SPECTRUM MODULAR TRACK LIGHT SYSTEM
One housing. Interchangeable modules. Professional lighting flexibility.
* SPECTRUM is a professional modular track light family developed for architectural retail and display lighting projects.
* With interchangeable optical modules and accessory options, SPECTRUM allows one visual design language to support accent lighting, wall display lighting and flexible merchandising layouts.
* The range is suitable for retail stores, luxury boutiques, shopping malls, museums and gallery environments.
Key Specifications
Applications: Retail / Luxury Boutique / Shopping Mall / Museum & Gallery
Diameter Range: Ø45 / Ø60 / Ø75 / Ø90
Power Range: 8W-35W
Options: Anti-glare cross louver / zoom module / barn door
Control: ON/OFF / TRIAC / DALI where available
* With interchangeable optical modules and accessory options, SPECTRUM allows one visual design language to support accent lighting, wall display lighting and flexible merchandising layouts.
* The range is suitable for retail stores, luxury boutiques, shopping malls, museums and gallery environments.
Key Specifications
Applications: Retail / Luxury Boutique / Shopping Mall / Museum & Gallery
Diameter Range: Ø45 / Ø60 / Ø75 / Ø90
Power Range: 8W-35W
Options: Anti-glare cross louver / zoom module / barn door
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size
SPECTRUM 45
Wattage: 8W
Size: Ø45*125mm
Lumen Output: 655lm
Beam Angle: 20°/25°/39°/51°
Accessories

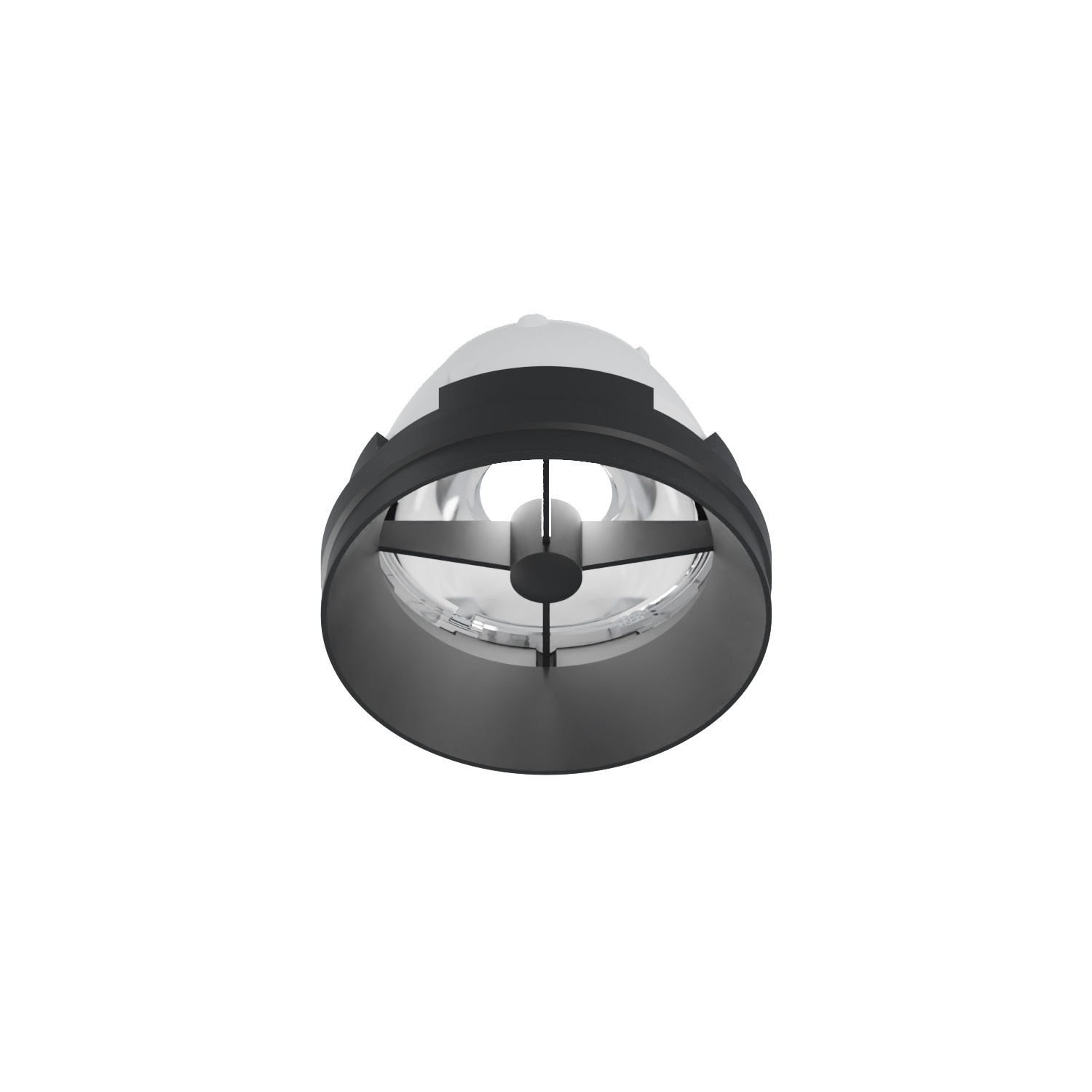

+ Anti-glare Cover

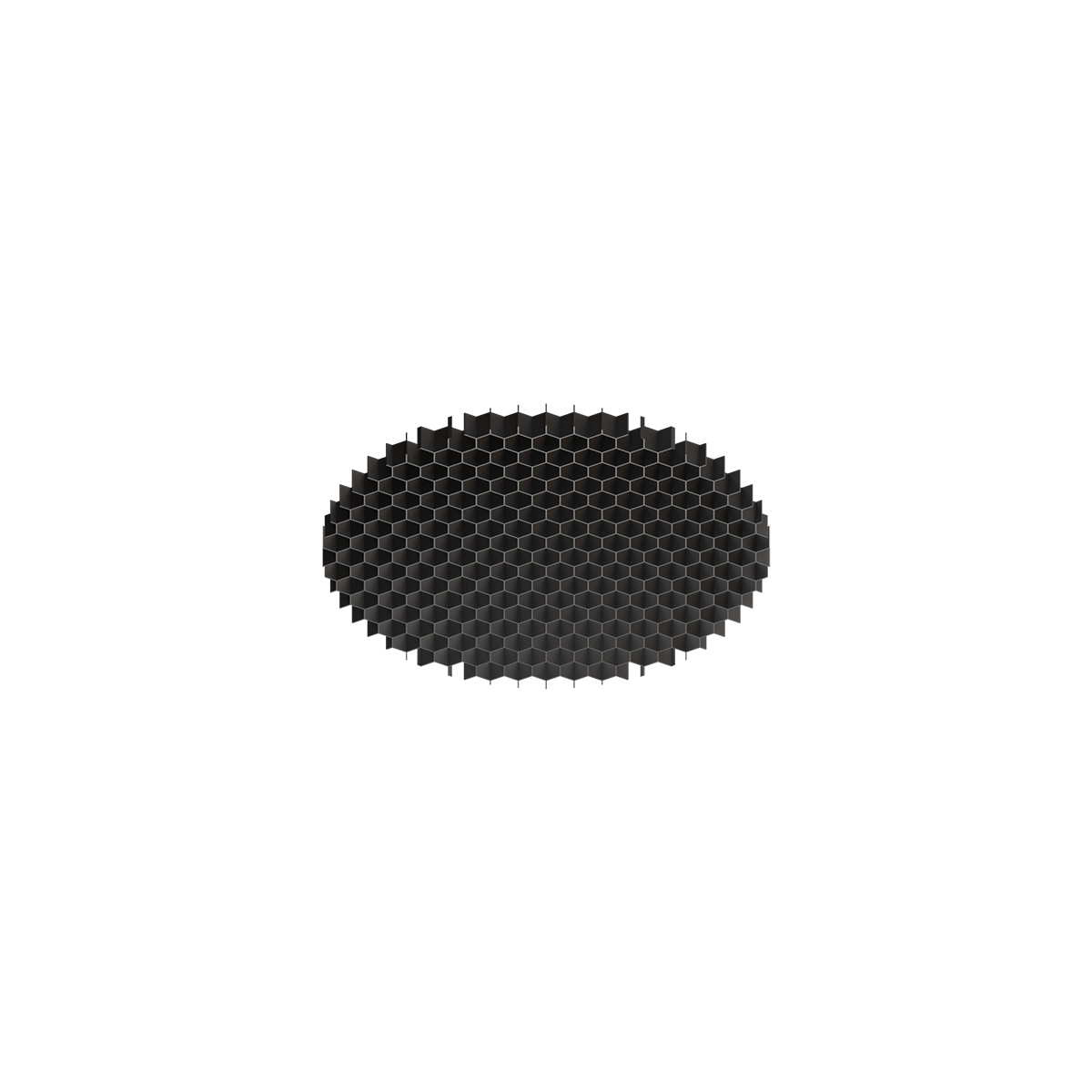

Honeycomb

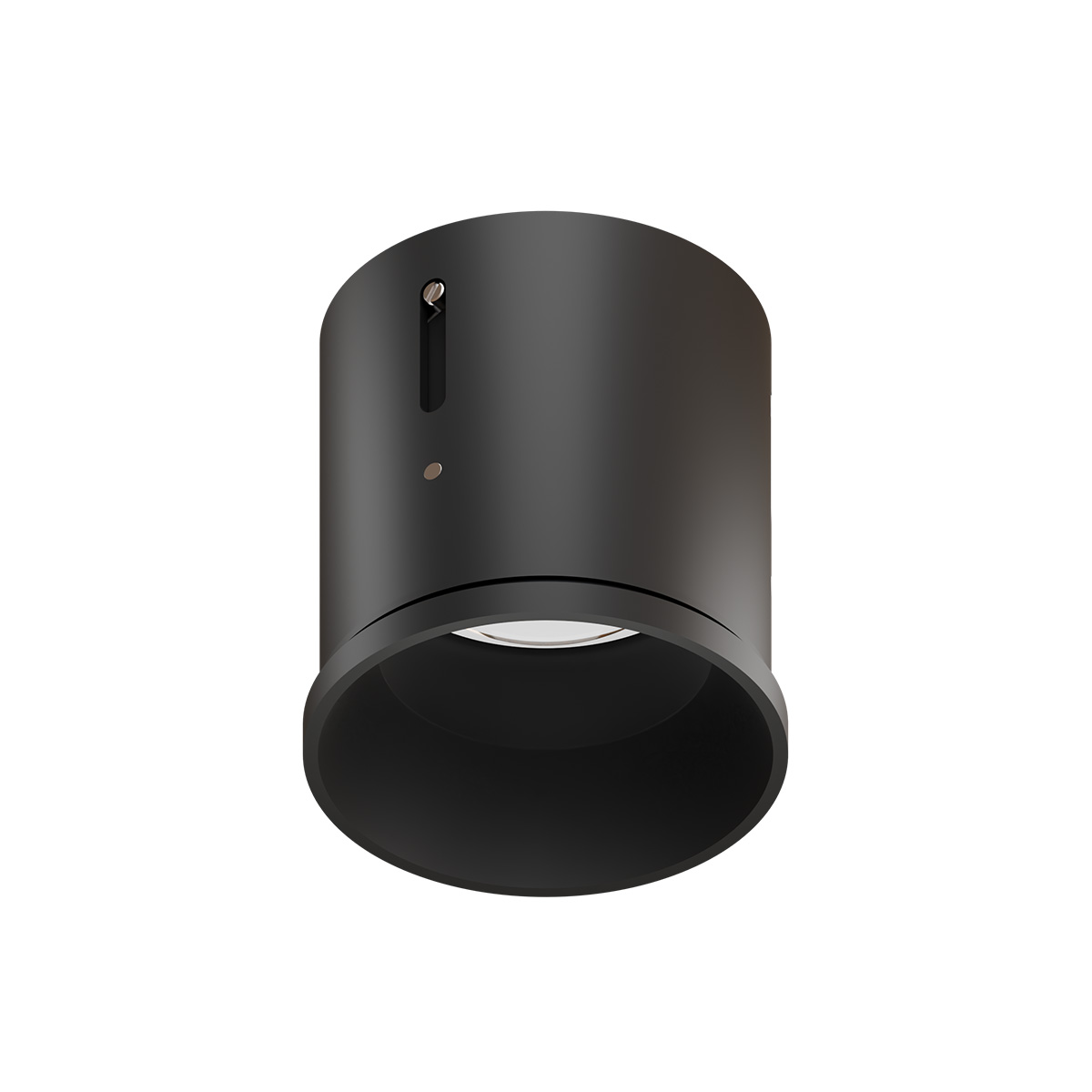

Zoom optical
View details →+ Anti-glare CoverHoneycombZoom optical
SPECTRUM 55
Wattage: 15W
Size: Ø55*140mm
Lumen Output: 1244lm
Beam Angle: 17°/28°/39°/49°
Accessories+ Anti-glare Cover

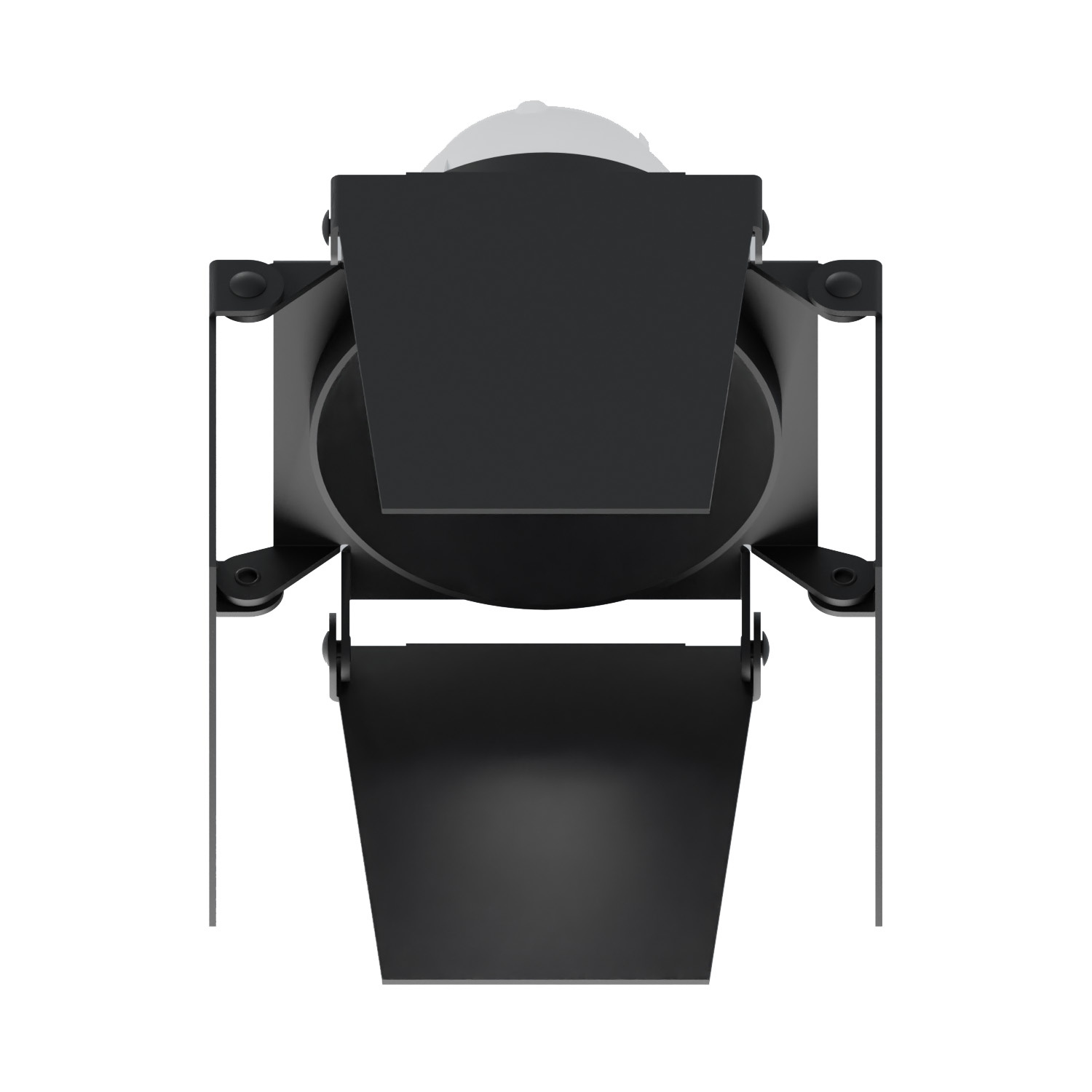

Anti-glare BrandoorZoom optical
View details →+ Anti-glare CoverAnti-glare BrandoorZoom optical
SPECTRUM 65
Wattage: 20W
Size: Ø65*160mm
Lumen Output: 2388lm
Beam Angle: 19°/24°/39°/51°
Accessories+ Anti-glare CoverAnti-glare BrandoorZoom optical
View details →+ Anti-glare CoverAnti-glare BrandoorZoom optical
SPECTRUM 90
Wattage: 37W
Size: Ø90*160mm
Lumen Output: 4573lm
Beam Angle: 18°/25°/38°/51°
Accessories+ Anti-glare CoverAnti-glare BrandoorZoom optical
View details →+ Anti-glare CoverAnti-glare BrandoorZoom opticalWhy Choose SPECTRUM
SPECTRUM helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for retail / luxury boutique / shopping mall / museum & gallery projects.
Characteristics
What defines SPECTRUM
Multiple Size Options
Available from Ø45 to Ø90, SPECTRUM supports compact displays, general retail areas and larger commercial spaces.
Accessory Flexibility
Optional cross louver, zoom module and barn door accessories give designers more control over glare, beam spread and visual focus.
Professional Display Performance
Designed for merchandise, art and architectural details where accurate focus and controlled illumination matter.
Applications
Where SPECTRUM Performs Best
SPECTRUM should be specified as a modular professional track-light family for retail, boutiques, malls and gallery-style display areas. Use it when one visual design needs multiple beam effects, accessory options and controlled accent lighting, with final beam size and contrast confirmed through datasheets and IES/LDT files.
Luxury Retail Lighting
SPECTRUM is suitable for luxury retail where merchandise requires precise accent lighting but the store also needs a consistent family appearance across different zones. Its modular optical and accessory options allow designers to tune display contrast without changing the overall luminaire language.
- Recommended mounting height: about 2.8–4.2 m for luxury retail and boutique ceilings
- Beam start: 20°/25° for hero products and mannequins, 39°/51° for broader wall bays or tables
- Accessory note: use anti-glare louver or barn door where direct view or spill light is a concern
- Selection difference: choose SPECTRUM when one family must cover multiple display effects; choose simpler ECO for value-driven repetitive layouts
Shopping Mall Lighting
For shopping malls and larger retail floors, SPECTRUM works as an adjustable accent layer for shopfronts, promotion islands, category walls and tenant display areas where merchandise layouts change over time.
- Recommended mounting height: about 3.0–4.5 m depending on tenant ceiling and target distance
- Recommended distance: medium throws for shopfront bays, end-cap displays and promotional tables; verify spot size with IES/LDT files
- Control note: DALI is useful for mall tenants that need scenes, dimming groups or time-based operation
- Design limit: not a substitute for uniform mall ambient lighting; use it as an accent/display layer
Museum & Gallery Lighting
SPECTRUM can support gallery-style display areas where high colour quality, controlled beams and accessory-based glare control are needed, especially when the project does not require ARTAX-level projection shaping.
- Use for focused exhibit or retail-gallery displays rather than precision gobo/shutter projection
- Anti-glare accessory options help reduce direct view into the optic
- Confirm illuminance, beam size and conservation requirements with IES/LDT files before final aiming
- Choose ARTAX instead when the brief requires adjustable focus, shutters, gobos or shaped beam edges
Retail Display Lighting
For display tables, wall shelving and seasonal retail layouts, SPECTRUM gives designers beam and accessory flexibility while keeping the ceiling line visually consistent across the store.
- Narrow beams suit small objects and hero displays; wider beams suit grouped merchandise
- Zoom or accessory options can help adapt to changing display sizes
- Commission final aiming after merchandising is installed, not only from ceiling plans
- Coordinate track type, finish, driver and dimming before approval
Projects
Projects using SPECTRUM
See how SPECTRUM supports professional lighting results across relevant architectural applications.
Retail
Shopping Mall
Track Lighting installed in SM Mall Philippines in Philippines, showing SM mall retail cosmetics floor with extensive ceiling track lighting.
Product usedSPECTRUM 45
Beam angle25°
ControlDALI
Retail
Emsphere Mall Retail Store
Track Lighting installed in SM Shopping Mall Philippines in Philippines, showing mall cosmetics retail area with extensive ceiling track lighting.
Product usedSPECTRUM 55
Beam angle28°
ControlTRIAC
RETAIL
Shoe Store
Track Lighting installed in a retail project in Thailand, showing orange textured retail window display with black track lighting.
Product usedSPECTRUM 55/SPECTRUM 90
Beam angle28° / 38°
ControlDALI
System catalogue
Download SPECTRUM system catalogue
Download the latest family catalogue, technical files and specification resources for the SPECTRUM track light system.
Project support
Request SPECTRUM for your next project
Get quotation support, samples and technical files for SPECTRUM modular track lighting.
