Precision Asymmetric Optics
The asymmetric optical system directs light efficiently onto vertical surfaces, creating smooth wall illumination with reduced hot spots and visible scalloping.
MAGENTRA ASYMMETRIC MAGNETIC WALL WASHER
Smooth vertical illumination. Uniform wall washing. Flexible magnetic system.
* MAGENTRA Wall Washer is a professional asymmetric magnetic luminaire designed to deliver smooth and uniform vertical illumination for architectural interiors.
* Its precision optical design minimizes hot spots and scalloping, creating clean wall surfaces that enhance retail displays, artworks and architectural features.
* The range integrates seamlessly into Artdon's low-voltage magnetic track system, providing flexible positioning for commercial, hospitality and gallery lighting projects.
Key Specifications
Applications: Retail / Gallery / Museum / Hospitality
Lengths: 243 / 483 / 723mm
Power Range: 10W–27W
Optics: Asymmetric Wall Washer
Construction: Full Aluminium Housing
Control: ON/OFF / 0–10V / DALI where available
* Its precision optical design minimizes hot spots and scalloping, creating clean wall surfaces that enhance retail displays, artworks and architectural features.
* The range integrates seamlessly into Artdon's low-voltage magnetic track system, providing flexible positioning for commercial, hospitality and gallery lighting projects.
Key Specifications
Applications: Retail / Gallery / Museum / Hospitality
Lengths: 243 / 483 / 723mm
Power Range: 10W–27W
Optics: Asymmetric Wall Washer
Construction: Full Aluminium Housing
Control: ON/OFF / 0–10V / DALI where available
Available products
Choose the right size
Why Choose MAGENTRA
MAGENTRA Wall Washer is designed to create smooth, uniform vertical illumination while eliminating scalloping and uneven brightness on walls.
Its precision asymmetric optical system highlights architectural surfaces, product displays and artworks with excellent visual consistency, making every wall appear cleaner and more refined.
As part of the Artdon magnetic lighting platform, it allows designers to reposition luminaires quickly without modifying the ceiling layout, providing maximum flexibility throughout the project lifecycle.
Ideal for retail stores, museums, galleries, hospitality and premium commercial interiors where professional wall washing is essential.
Characteristics
What defines MAGENTRA
Uniform Vertical Illumination
Multiple module lengths support consistent brightness across different wall heights and widths, helping designers achieve a cleaner and more balanced lighting effect.
Flexible Magnetic Positioning
The magnetic installation allows quick repositioning along the track, making it easier to adjust wall-washing layouts during installation or future space changes.
Full Aluminium Construction
The full aluminium body supports effective heat dissipation, long-term durability and reliable performance in demanding retail, gallery and hospitality projects.
Applications
Where MAGENTRA Performs Best
MAGENTRA Low Voltage Wall Washer is for vertical illumination on retail walls, gallery surfaces and feature corridors where even wall brightness is more important than object accent. Plan wall offset, mounting height and module spacing early; for many 2.7–4.0 m spaces, start testing around 0.4–0.8 m from the wall.
Retail Wall Washing
Use MAGENTRA Wall Washer for fashion walls, shelf runs and brand graphics that need smooth vertical brightness. It is most effective when the track is parallel to the wall and the offset is tested with the actual shelf depth and wall finish.
- Best for merchandise walls, brand graphics and shelf runs
- Creates vertical brightness rather than narrow object accents
- Start layout testing around 0.4–0.8 m wall offset, then verify with IES
- Combine with spot modules for mannequins and feature tables
Museum & Gallery Walls
For galleries and museums, MAGENTRA Wall Washer helps produce calmer, more even artwork walls than repeated spot beams. Final spacing must be checked against artwork height, conservation limits and wall texture so the top and lower wall do not become uneven.
- Suitable for continuous artwork walls and interpretation panels
- Even wall brightness improves visual order in exhibition rooms
- Confirm lux level, uniformity and conservation requirements
- Use individual spotlights for sculptures or deep display cases
Hospitality Corridors
In hotels, clubs and restaurants, MAGENTRA Wall Washer can light textured walls, corridor art and feature surfaces while keeping direct glare low. It should be set out with the interior wall material because stone, timber and metallic finishes reveal unevenness quickly.
- Good for hotel corridors, restaurant feature walls and lounge backdrops
- Emphasizes vertical surfaces to make spaces feel brighter and deeper
- Test grazing risk on textured stone, timber or metallic finishes
- Use dimming to balance mood scenes and maintenance brightness
Residential Feature Walls
For villas and apartments, MAGENTRA Wall Washer works on art walls, timber panels and wardrobe runs where a continuous vertical glow is desired. It should be selected when the goal is wall clarity, not when the room needs a single movable reading or display spotlight.
- Suitable for art walls, wardrobe fronts and decorative wall panels
- Low-voltage track allows a clean linear ceiling detail
- Coordinate track offset before ceiling construction
- Use adjustable spot modules for focused objects or reading positions
Projects
Projects using MAGENTRA
See how MAGENTRA delivers precision and performance in real-world projects.
Residential
Luxury Villa Entrance Hall
MAGENTRA track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.

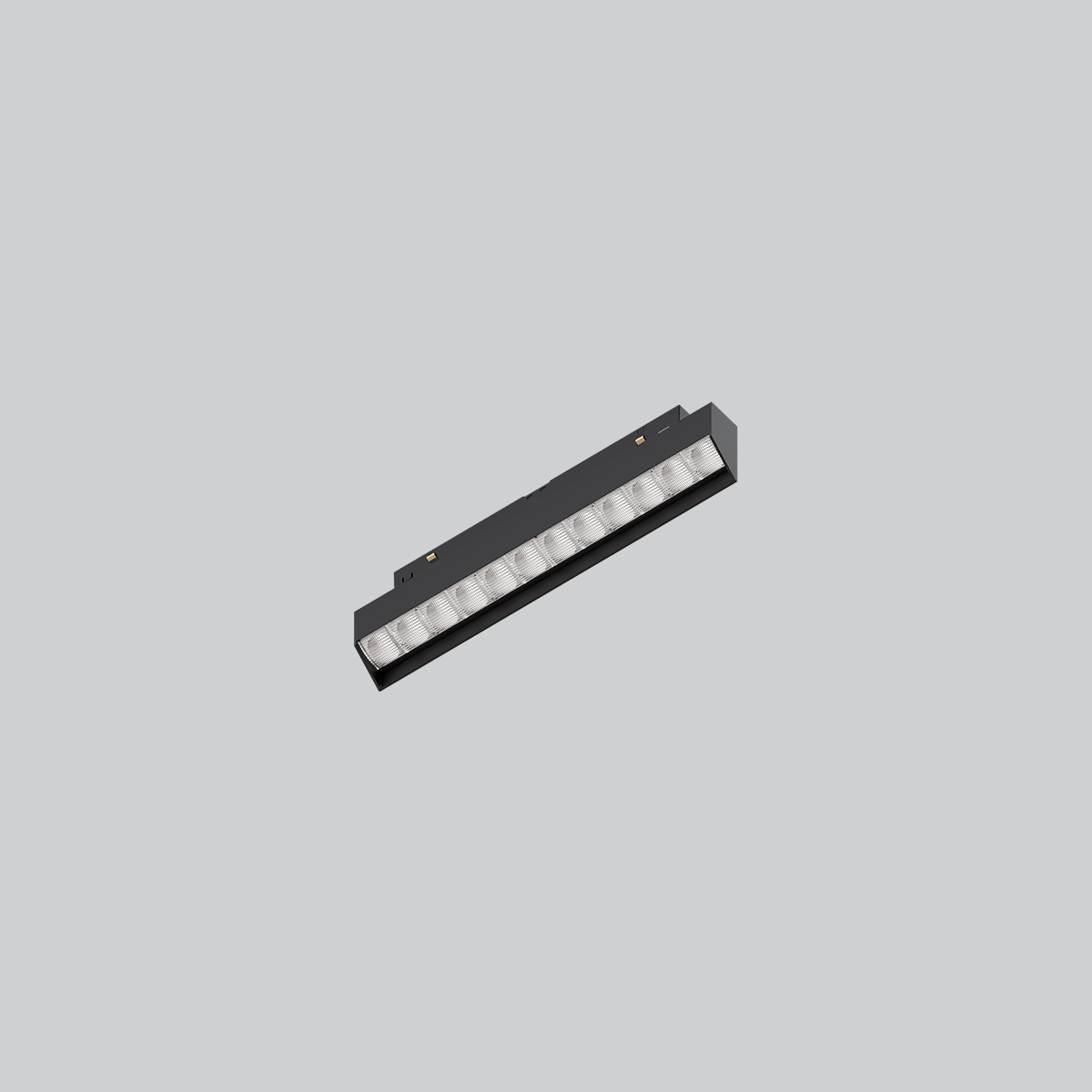

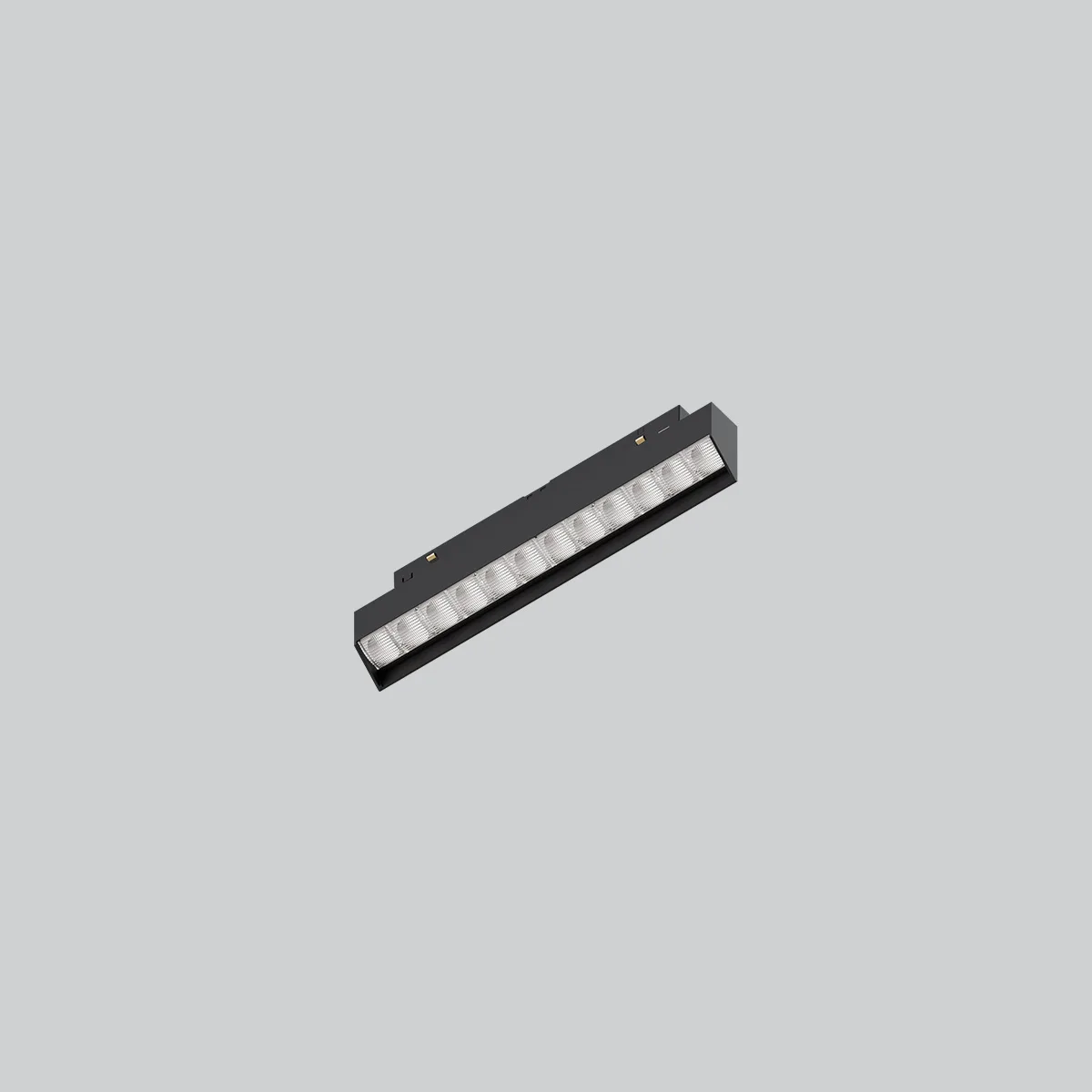

Product usedMAGENTRA 243
Beam angle40°
ControlDALI
Residential
Living Room Ambient Glow
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.

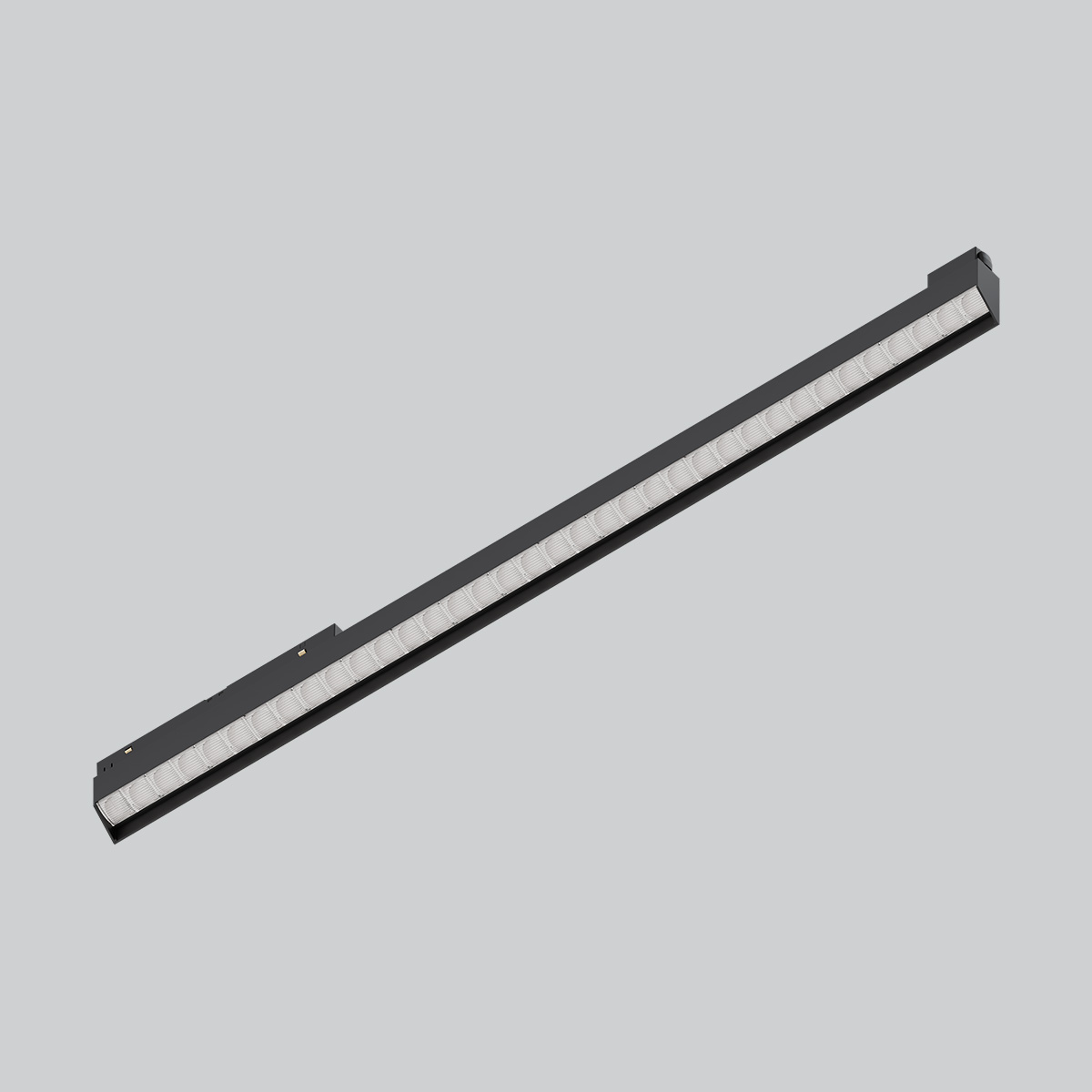

Product usedMAGENTRA 723
Beam angle40°
Control0-10V
Residential
Living Room Ambient Glow
MAGENTRA provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.

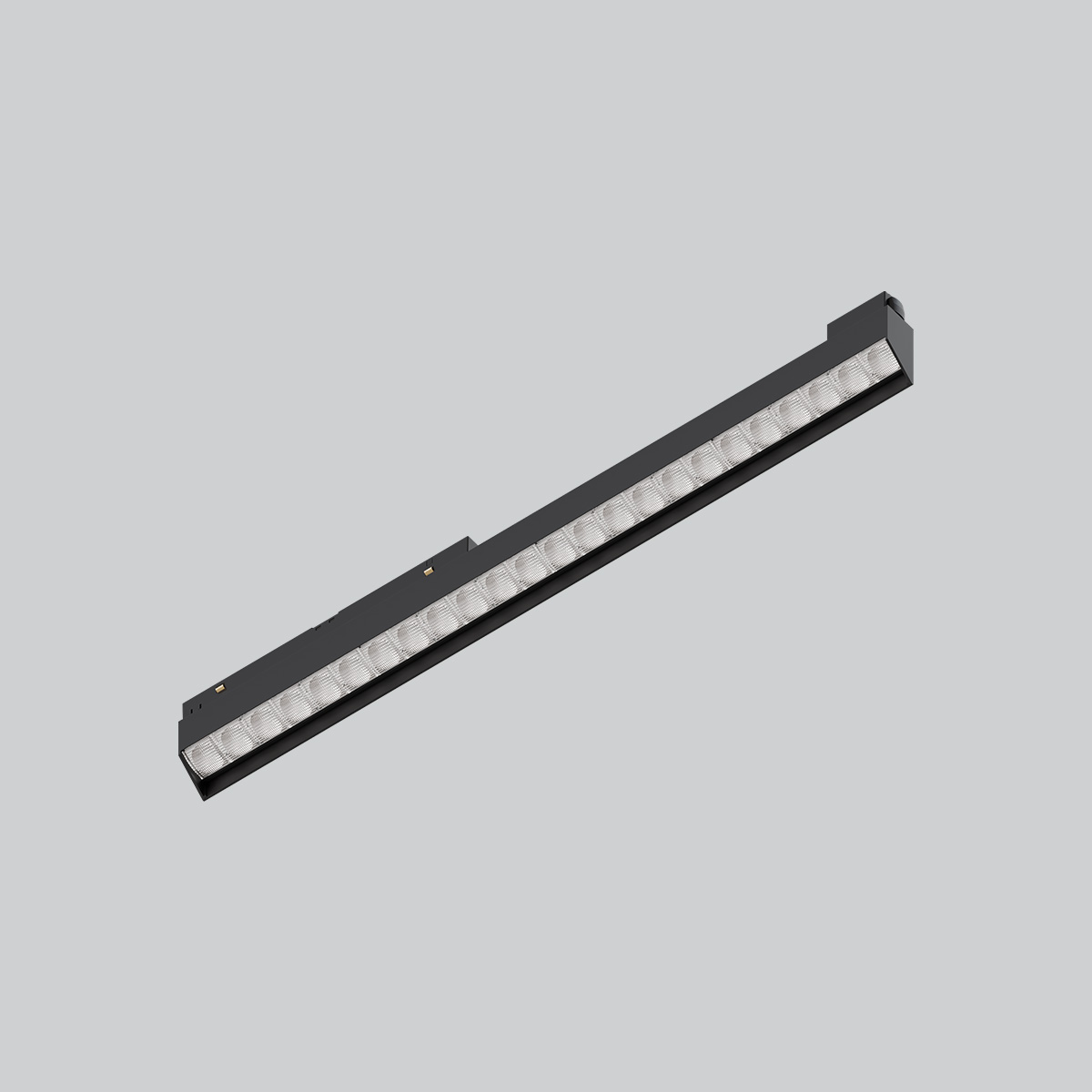

Product usedMAGENTRA 483
Beam angle40°
ControlDALI
System catalogue
Download MAGENTRA system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request MAGENTRA for your next project
Get quotation support, samples and technical files for this product family.
