Modular System Design
One housing can work with different lighting modules, helping projects maintain a consistent appearance while adapting to changing lighting tasks.
SPECTRUM MAGNETIC SPOTLIGHT SYSTEM
One family. Multiple sizes. Precision accent lighting.
* SPECTRUM Magnetic is a professional modular spotlight family developed for low-voltage magnetic track lighting systems in architectural and commercial projects.
* With four fixture diameters, multiple wattages and a wide selection of beam angles, SPECTRUM creates one consistent visual language for precise accent lighting across different project scales.
* The range is suitable for retail stores, hospitality spaces, offices and residential interiors where flexible installation, visual comfort and reliable lighting performance are required.
Key Specifications
Applications: Retail / Hospitality / Office / Residential
Diameter Range: Ø25 / Ø35 / Ø45 / Ø55
Power Range: 4W–25W
Versions: Fixed / Adjustable
Construction: Full aluminium housing
Control: ON/OFF / 0-10V / DALI
* With four fixture diameters, multiple wattages and a wide selection of beam angles, SPECTRUM creates one consistent visual language for precise accent lighting across different project scales.
* The range is suitable for retail stores, hospitality spaces, offices and residential interiors where flexible installation, visual comfort and reliable lighting performance are required.
Key Specifications
Applications: Retail / Hospitality / Office / Residential
Diameter Range: Ø25 / Ø35 / Ø45 / Ø55
Power Range: 4W–25W
Versions: Fixed / Adjustable
Construction: Full aluminium housing
Control: ON/OFF / 0-10V / DALI
Available products
Choose the right size
SPECTRUM 25
Wattage: 4W
Size: Ø25*60mm
Lumen Output: 197lm
Beam Angle: 17° / 26° / 31° / 53°

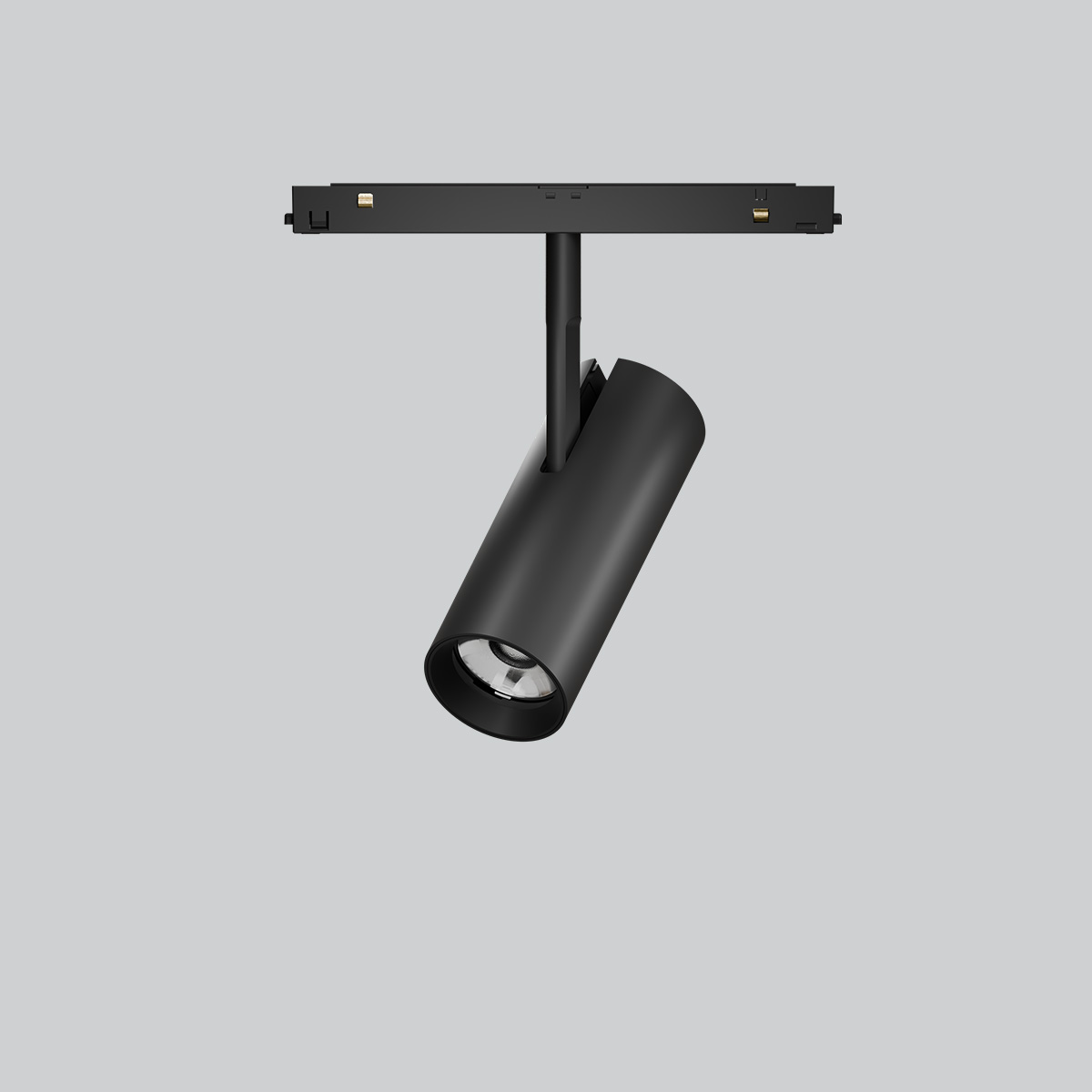

SPECTRUM 35
Wattage: 9W
Size: Ø35*90mm
Lumen Output: 612lm
Beam Angle: 16° / 23° / 38° / 49°
Accessories

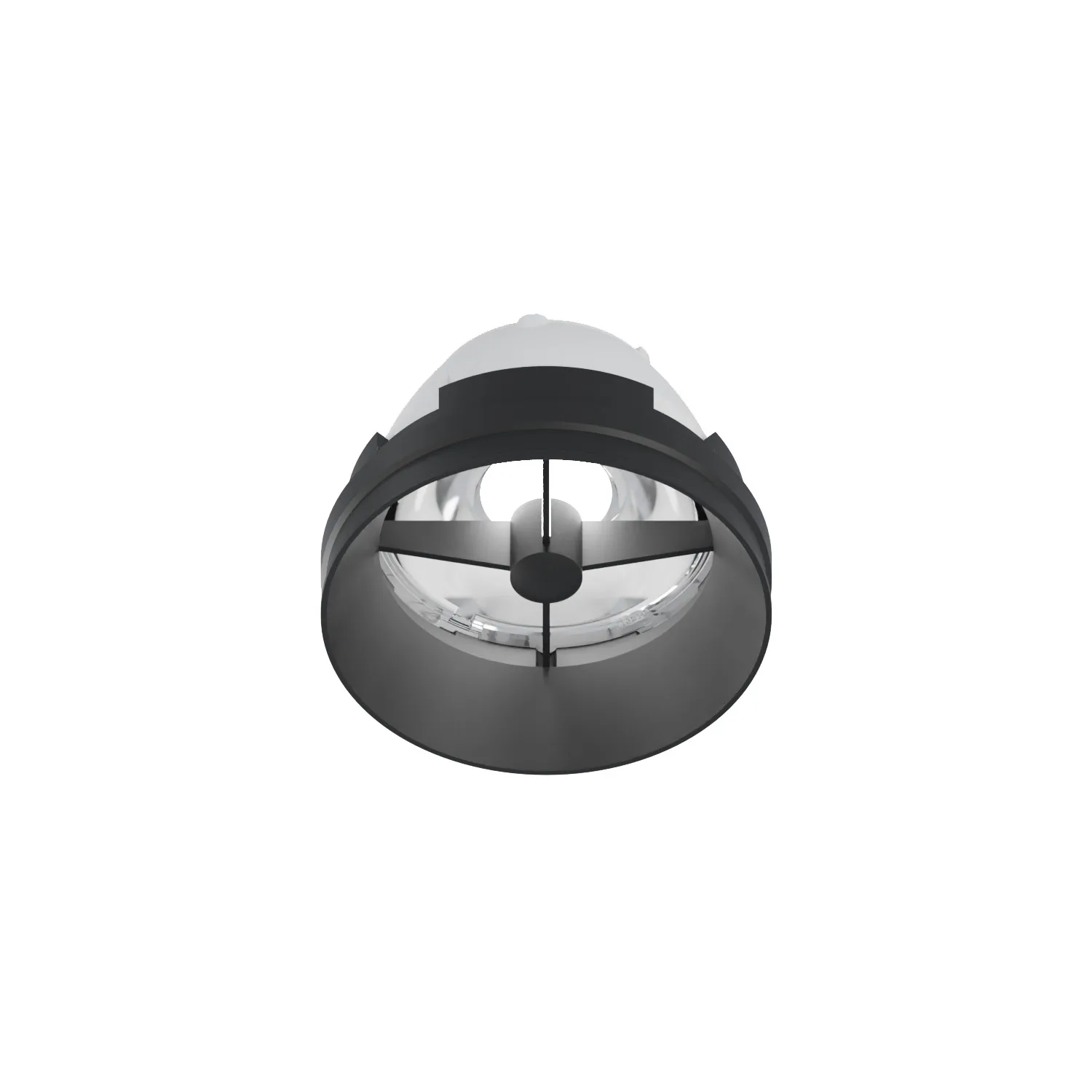

+ Anti-glare Cover
View details →+ Anti-glare Cover
SPECTRUM 45
Wattage: 15W
Size: Ø45*125mm
Lumen Output: 1083lm
Beam Angle: 19° / 24° / 36° / 43°
Accessories+ Anti-glare Cover

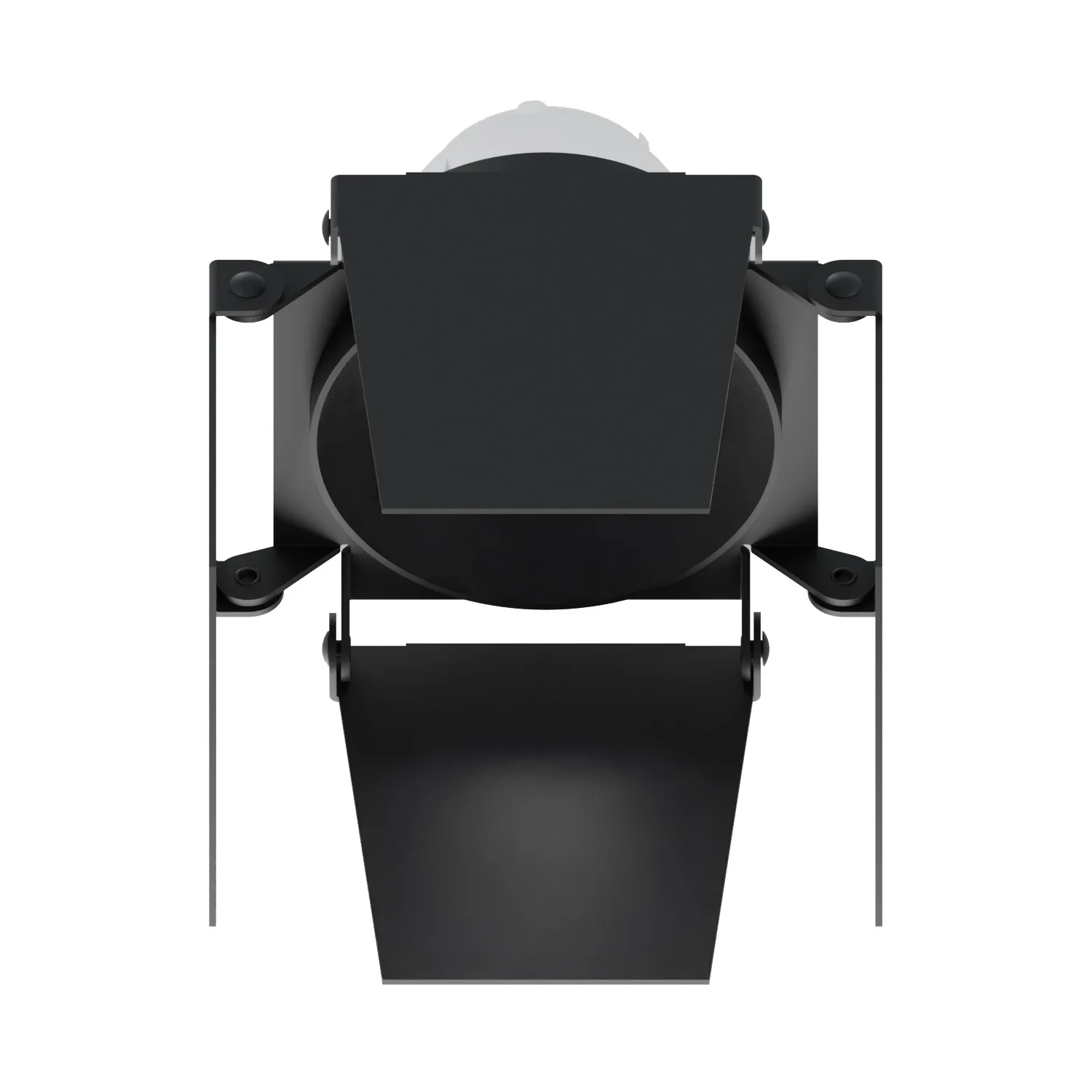

Anti-glare Brandoor
View details →+ Anti-glare CoverAnti-glare Brandoor
SPECTRUM 55
Wattage: 25W
Size: Ø55*140mm
Lumen Output: 2615lm
Beam Angle: 20° / 31° / 43° / 52°
Accessories+ Anti-glare CoverAnti-glare Brandoor
View details →+ Anti-glare CoverAnti-glare BrandoorWhy Choose SPECTRUM
SPECTRUM Magnetic combines premium optical performance with the flexibility of magnetic lighting systems.
Designed for architects and lighting designers, it delivers consistent lighting quality, multiple configuration options and reliable long-term performance for commercial projects.
Suitable for retail, hospitality, office and residential applications.
Characteristics
What defines SPECTRUM
Multiple product sizes
Multiple beam angles enable accurate accent lighting while maintaining excellent visual comfort.
Visual comfort lighting
Quick installation and repositioning make lighting layouts easy to modify without changing the ceiling.
Project flexible lighting system
Die-cast aluminum housing ensures efficient thermal management and long-term reliability.
Applications
Where SPECTRUM Performs Best
SPECTRUM Low Voltage is for compact low-voltage track layouts where retail, gallery and residential teams need precise accent light from a smaller system. Use it for 2.6–3.8 m interiors, close merchandise displays and flexible layouts where modules may be repositioned after opening.

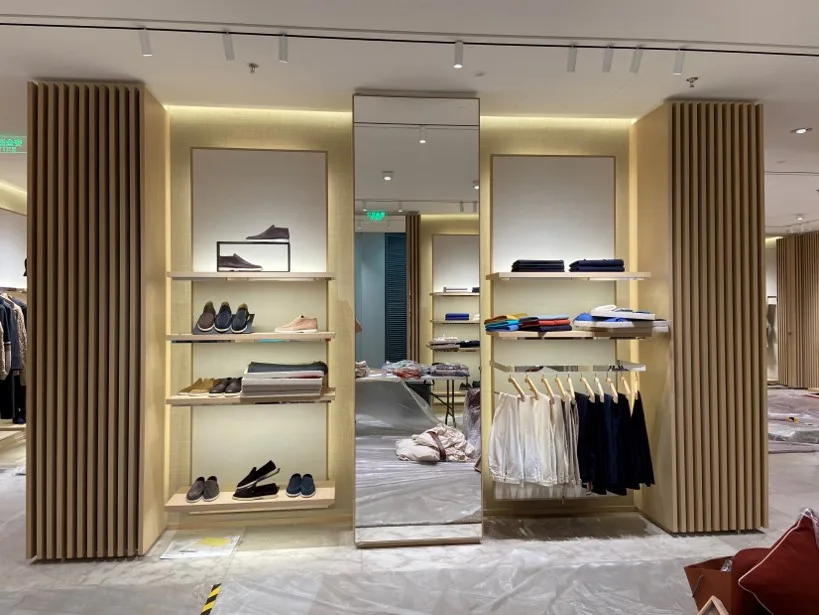

Luxury Retail Lighting
Use SPECTRUM Low Voltage over shelves, mannequins and wall bays where the fixture should stay visually small but still deliver defined accent light. Start with close-to-medium beam angles for 2.6–3.5 m ceilings, then verify final aiming with IES files for dark finishes or high-contrast merchandise.
- Best for boutique ceilings
- wall bays and display tables
- Compact low-voltage track appearance compared with line-voltage track heads
- Coordinate beam angle with shelf depth
- mannequin distance and aiming position
- Check driver capacity and track loading when modules are moved or added

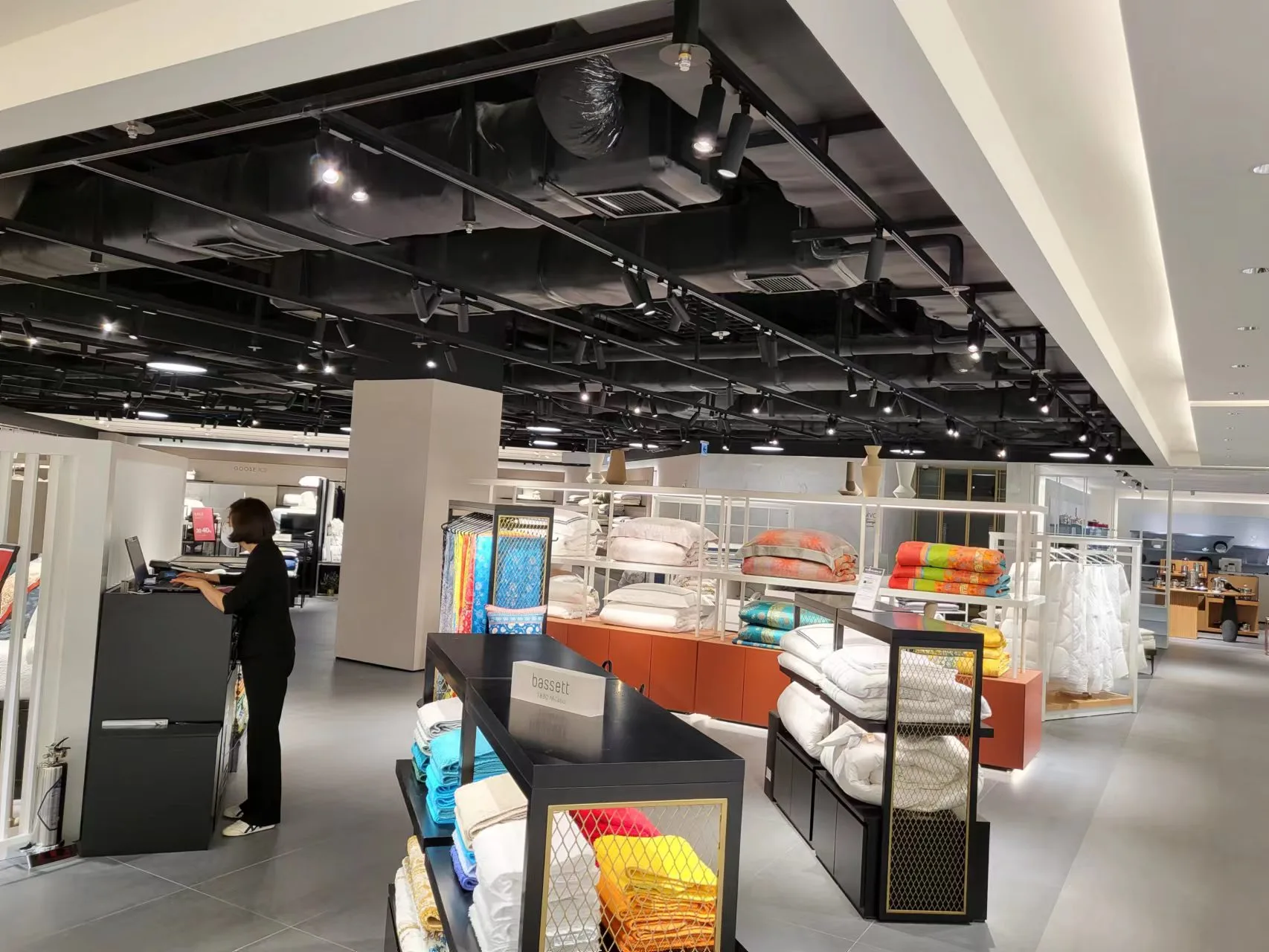

Shopping Mall Lighting
For shopping malls, SPECTRUM Low Voltage works best in tenant shopfronts, pop-up areas and small feature zones rather than very high atriums. It gives the designer a cleaner ceiling line and easier module adjustment when display layouts change seasonally.
- Suitable for tenant stores
- kiosks and medium-height public retail zones
- Use repeated aiming positions to keep storefront lighting consistent
- Plan extra track capacity for future merchandising changes
- Choose higher-output families for tall atriums or long-throw accent tasks

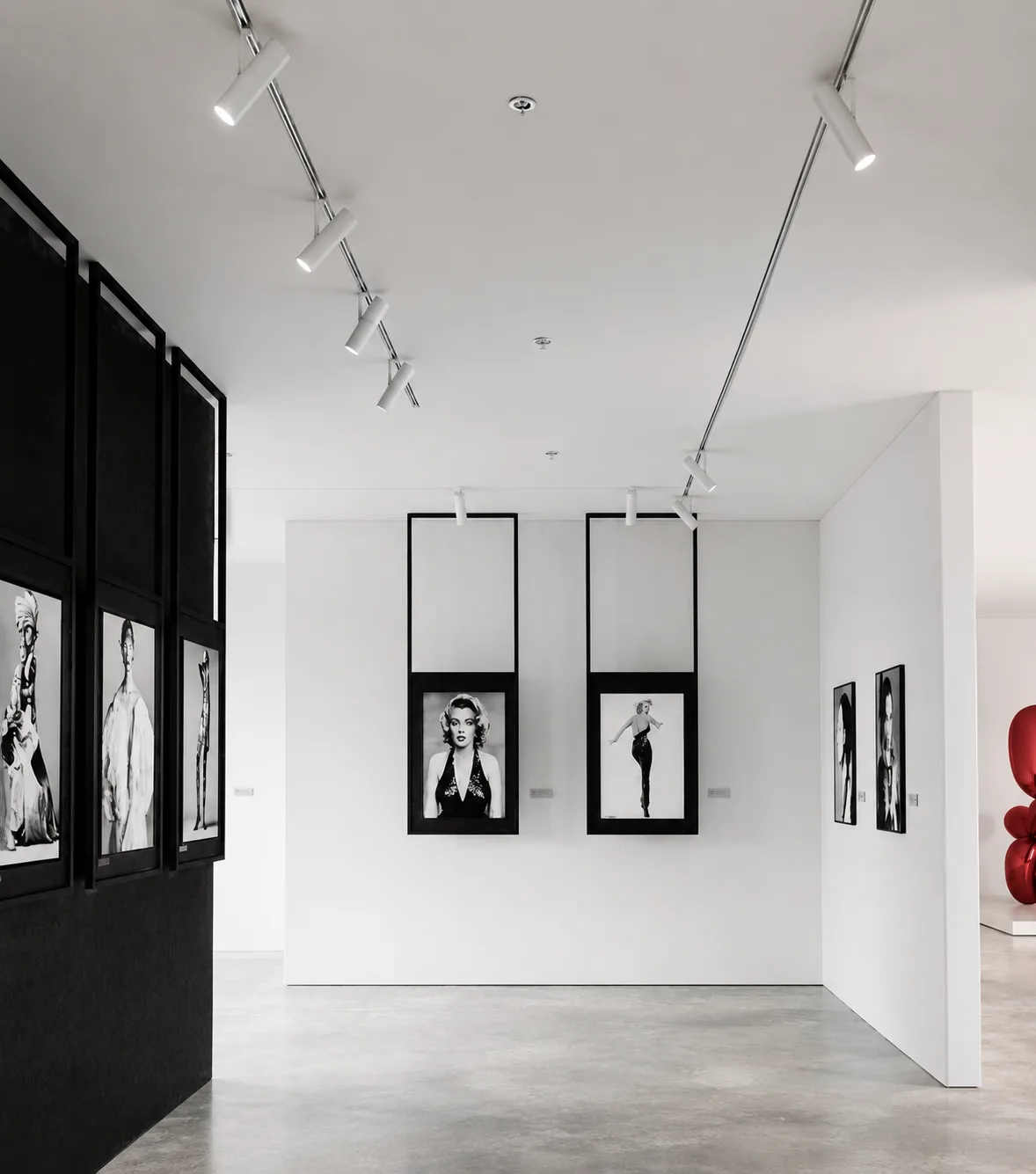

Museum & Gallery Lighting
SPECTRUM Low Voltage suits small galleries, temporary exhibitions and cultural displays where ceiling hardware needs to remain quiet. Use narrow or medium beams for artwork and object lighting, with final lux levels checked against conservation requirements.
- Good for low-to-medium ceiling gallery rooms and temporary exhibitions
- Small module scale helps reduce visual distraction around artworks
- Use beam control to separate artwork
- wall and circulation lighting
- Confirm illuminance limits and glare from visitor viewpoints
Residential Accent Lighting
In residential interiors, SPECTRUM Low Voltage provides adjustable accent lighting for art walls, wardrobes and open living areas without the heavier look of commercial track heads. Keep mounting heights around 2.5–3.2 m and avoid overloading the track with too many modules.
- Useful for art walls
- wardrobes
- kitchen displays and living rooms
- Low-voltage modules support a cleaner residential ceiling detail
- Combine with linear ambient light for softer general illumination
- Coordinate transformer location
- access and dimming before installation
Projects
Projects using SPECTRUM
See how SPECTRUM delivers precision and performance in real-world projects.

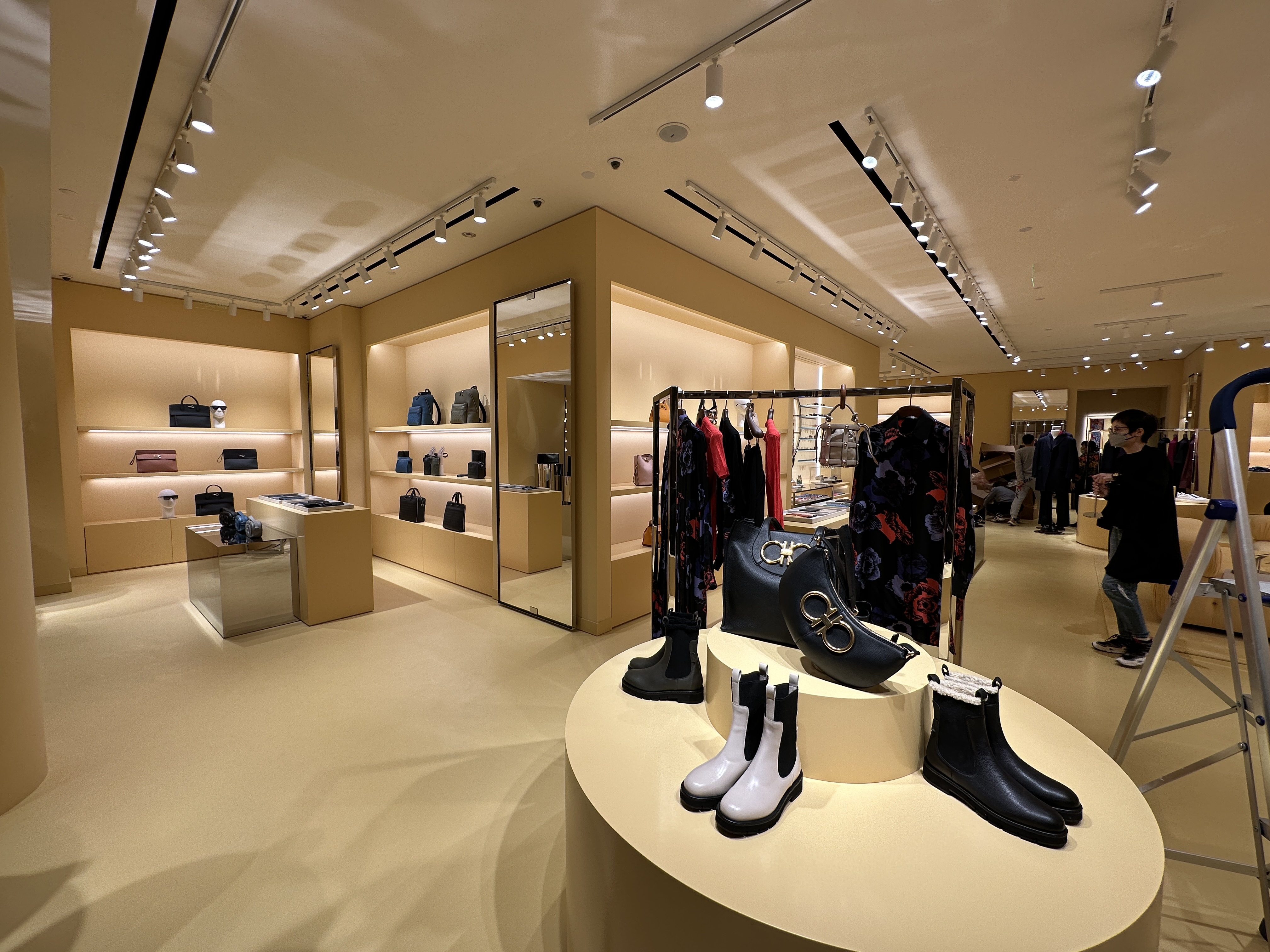

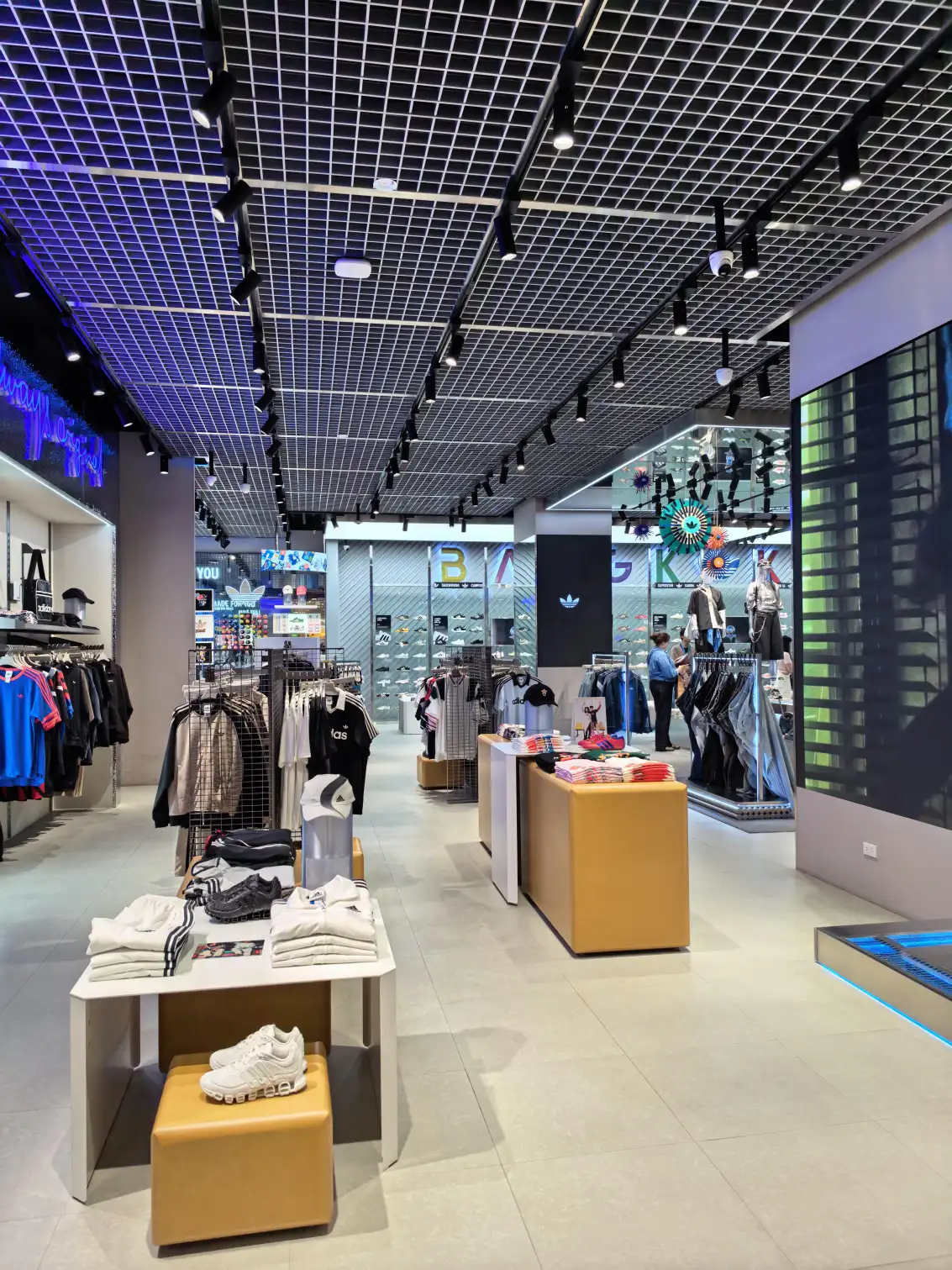

Retail
Retail Lighting Project
SPECTRUM track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedSPECTRUM 35/SPECTRUM 45
Beam angle23°/36°
ControlDALI

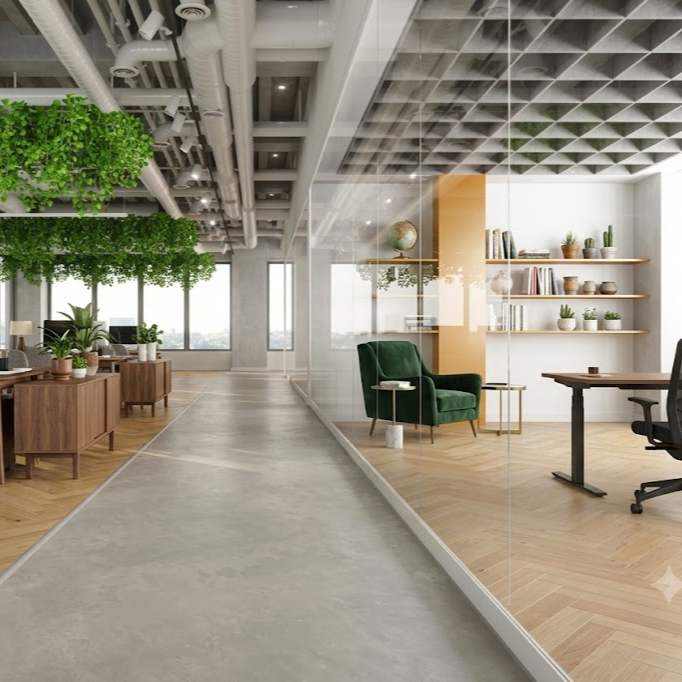

Office
Modern Office
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedSPECTRUM 55
Beam angle31°
Control0-10V
Hospitality
Hotel Restaurant
SPECTRUM provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedSPECTRUM 45/SPECTRUM 55
Beam angle24° / 31°
ControlDALI
System catalogue
Download SPECTRUM system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request SPECTRUM for your next project
Get quotation support, samples and technical files for this product family.
