BEAMX 62

BEAMX 62
BEAMX 62 dimension drawing
Product familyBEAMX
Model62.06226
DimensionsØ62*120mm
Power20W
Luminous flux1958lm
Efficacy82.9lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90
Beam angle17° / 27° / 37° / 51°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

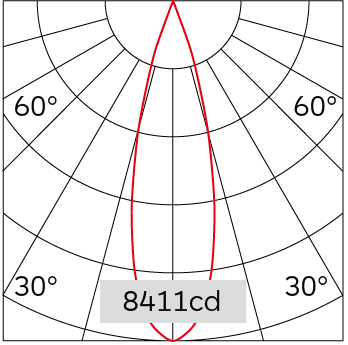

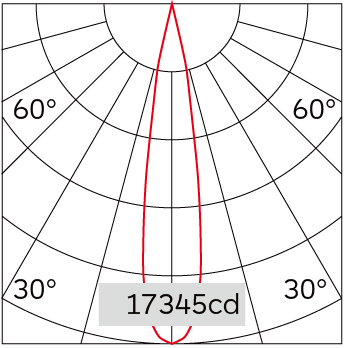

17°
27°

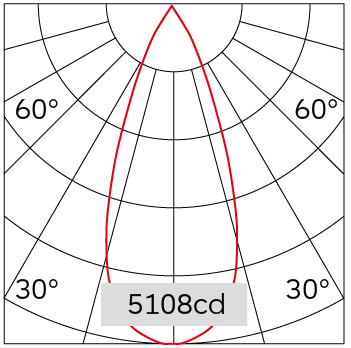

37°

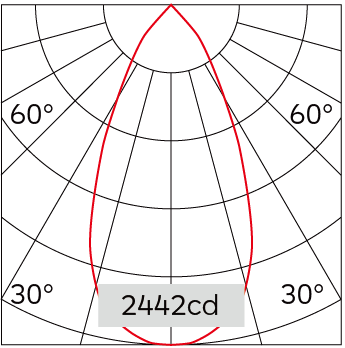

51°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in BEAMX

View family →
BEAMX 45

BEAMX 45

Wattage: 10W

Size: Ø45*80mm

Lumen Output: 903lm

Beam Angle: 20° / 27° / 40° / 55°
BEAMX 53

BEAMX 53

Wattage: 15W

Size: Ø53*100mm

Lumen Output: 1396lm

Beam Angle: 17° / 27° / 37° / 51°
