BEAMX 53

BEAMX 53
BEAMX 53 dimension drawing
Product familyBEAMX
Model62.05312
DimensionsØ53*100mm
Power15W
Luminous flux1396lm
Efficacy93lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90

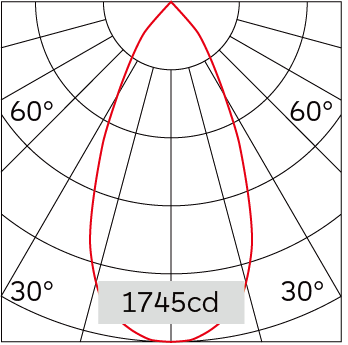

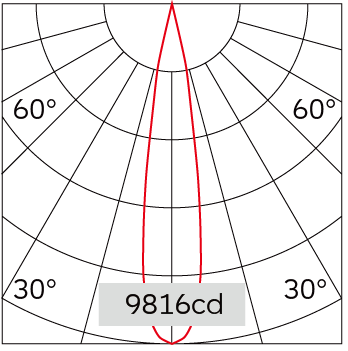

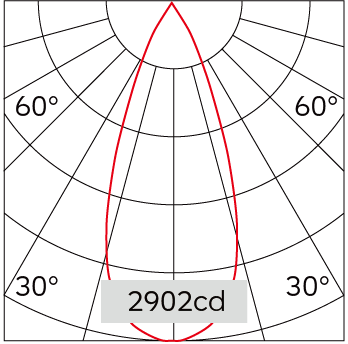

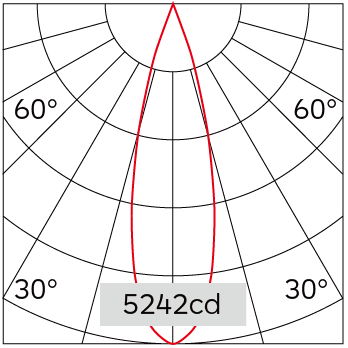

Beam angle17° / 27° / 37° / 51°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

17°
27°
37°
51°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
