MINI 45

MINI 45

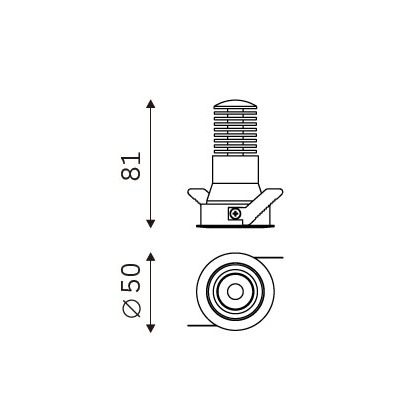

MINI 45 dimension drawing
Product familyMINI
Model51.04511
DimensionsØ50*81mm
Cut-outØ45mm
Power6W
Luminous flux368lm
Efficacy61.3lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle19° / 22° / 31° / 46°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

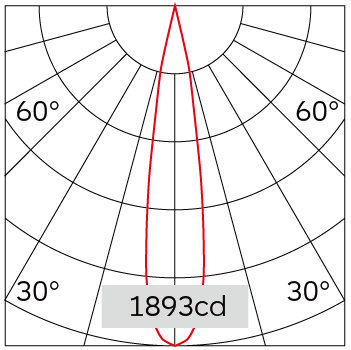

19°

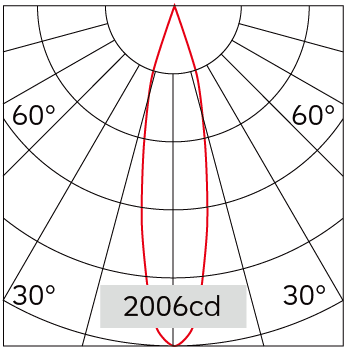

22°

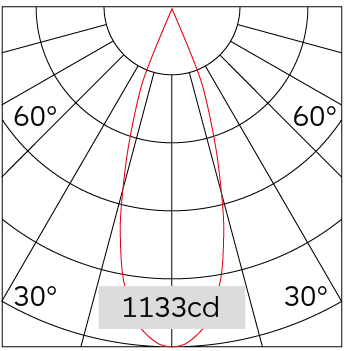

31°

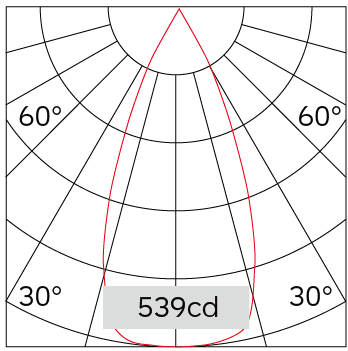

46°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
