MINI 40

MINI 40

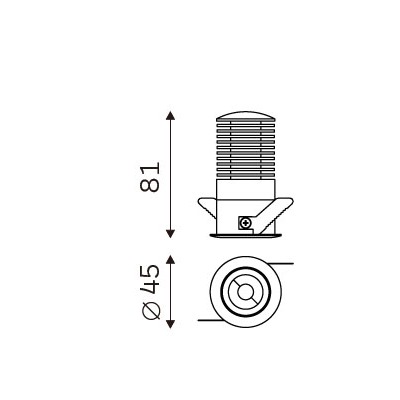

MINI 40 dimension drawing
Product familyMINI
Model51.04011
DimensionsØ45*81mm
Cut-outØ40mm
Power8W
Luminous flux471lm
Efficacy58.8lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle18° / 22° / 34° / 46°
IP ratingIP20
FinishWhite / Black
MountingRecessed
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

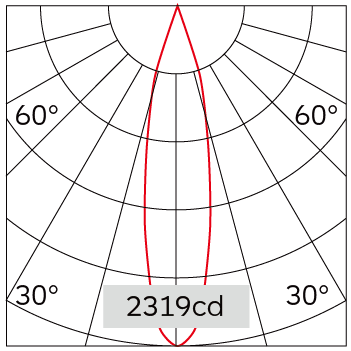

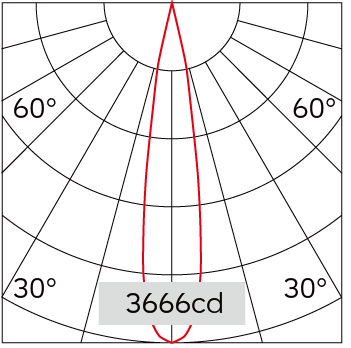

18°
22°

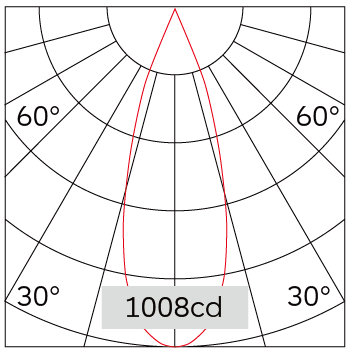

34°

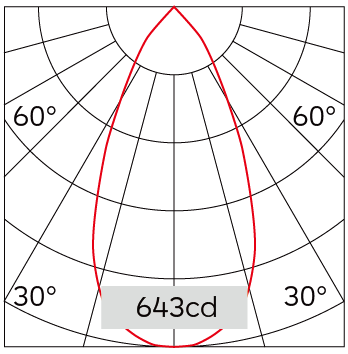

46°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
