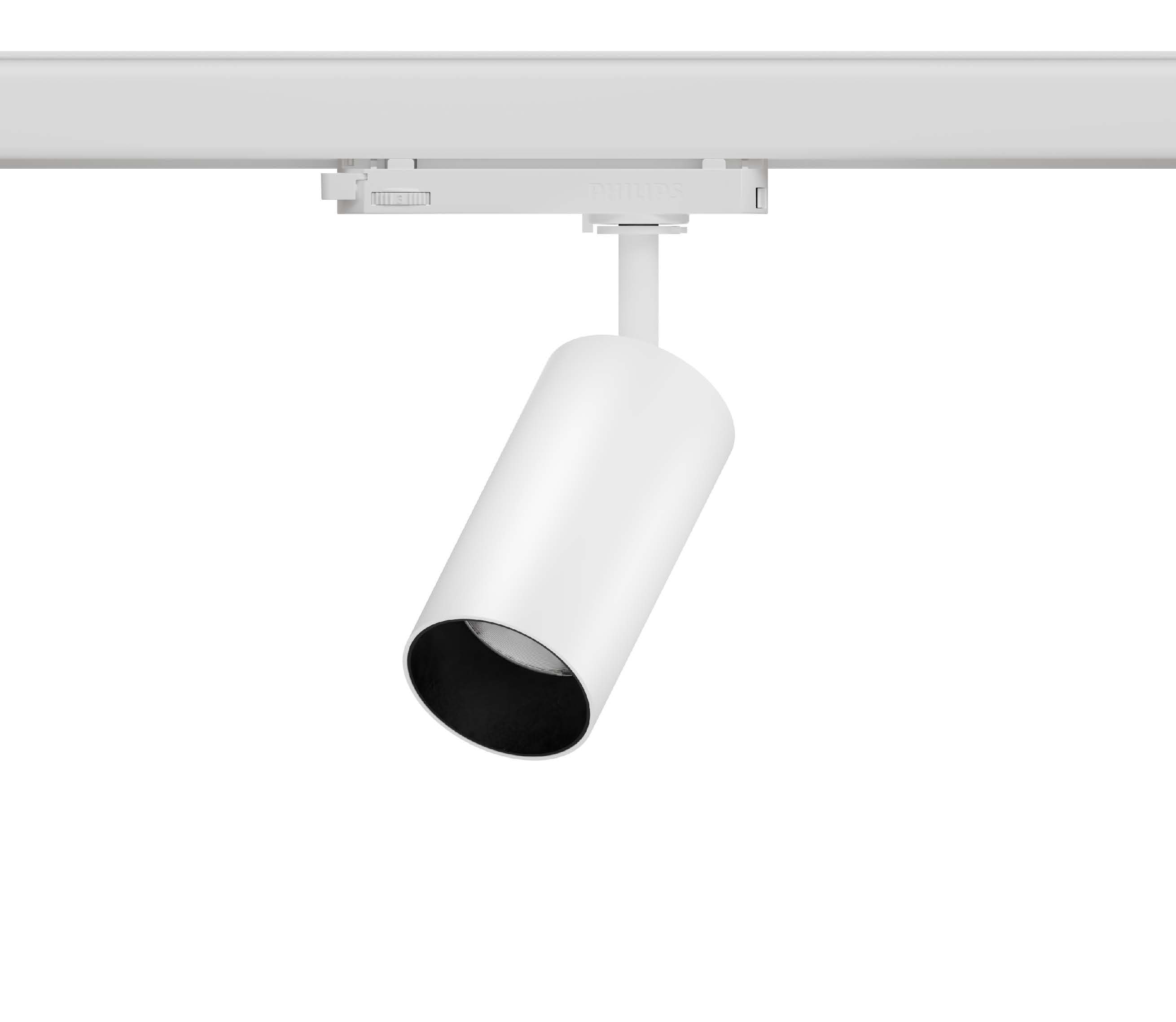

32.06229 BEAMX Track Lighting
| Connected Load | 20W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 8D/17D/27D/37D/51D |

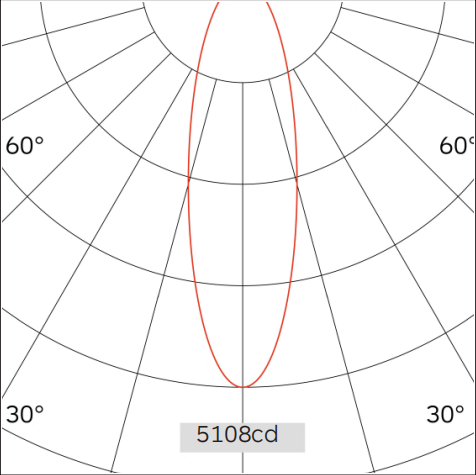

| Light Distribution | 32.06229 BEAMX Track Lighting |
| Luminous Flux Of The Luminaire | 2055lm |
| Luminaire Efficacy | 102.75lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.9Kg |
| Technical Region | Input 48V |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 37° | ||
| 1.0 | 5108.86 | 0.67 |
| 2.0 | 1277.21 | 1.33 |
| 3.0 | 567.65 | 2.00 |
| 4.0 | 319.30 | 2.67 |
| 5.0 | 204.35 | 3.34 |
Suitable for commercial spaces, such as clothing boutiques, furniture stores, brand display shops, automotive showrooms, jewelry counters, star-rated hotels, premium clubs, museums, chain retail stores, brand exhibition halls, professional showcases, cashier counters, and other accent lighting applications.
Suitable accessories
Download
Photometric Files

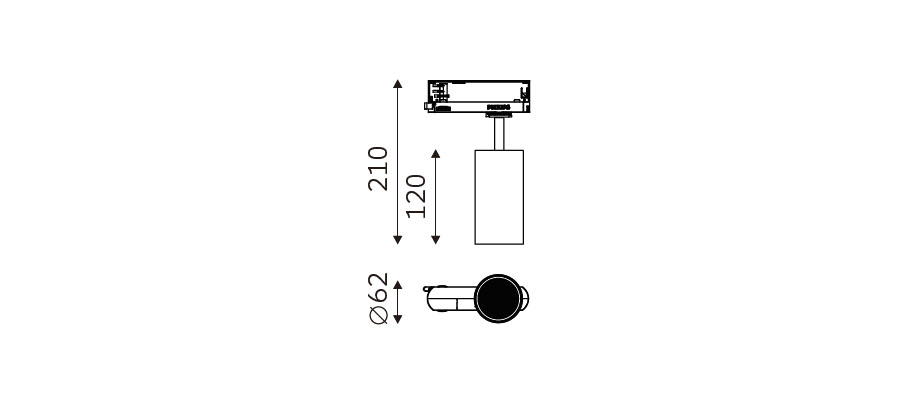

Technical Drawings
