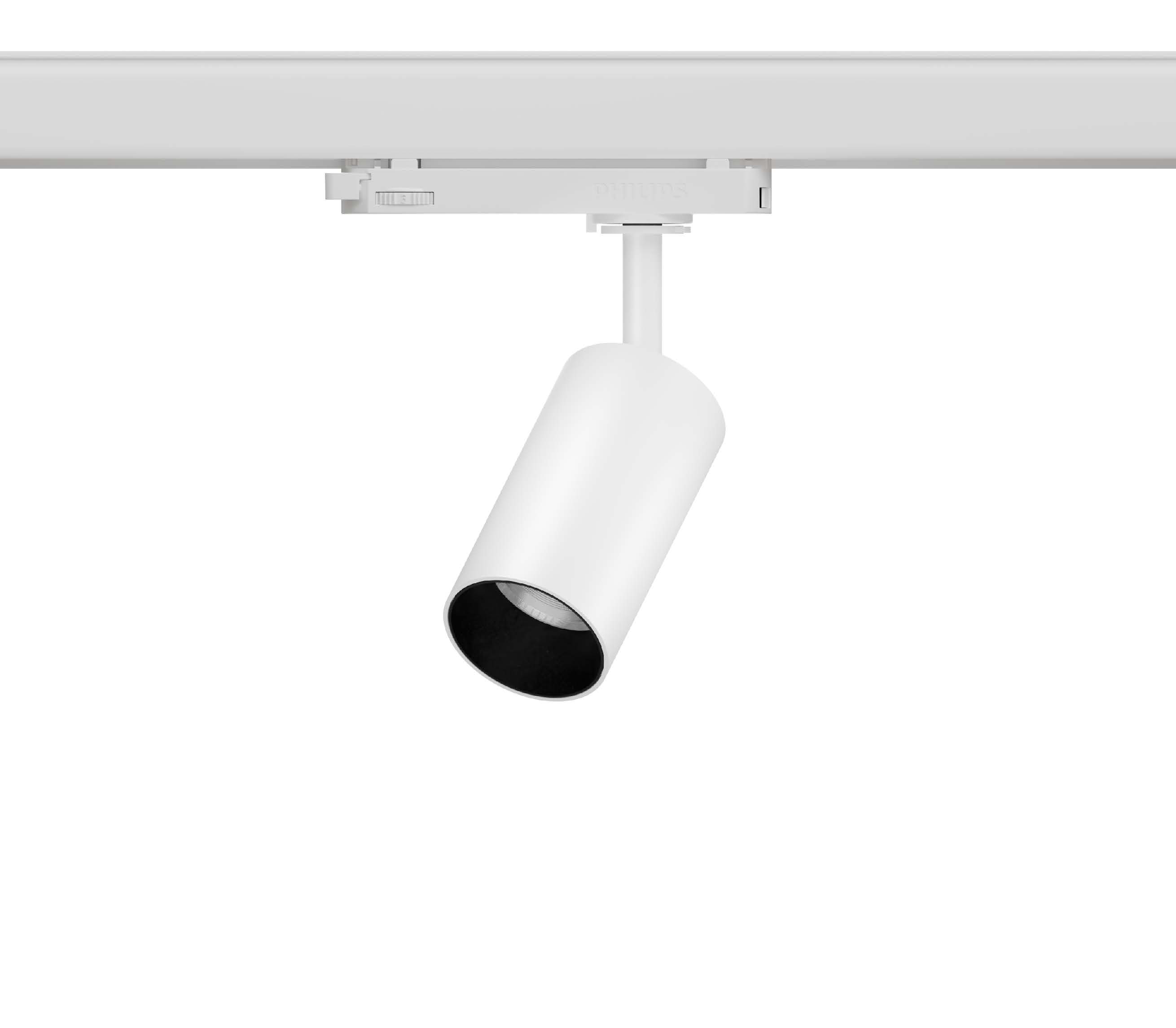

32.05315 BEAMX Track Lighting
| Connected Load | 15W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 8D/17D/27D/37D/53D |
| Light Distribution | 32.05315 BEAMX Track Lighting |
| Luminous Flux Of The Luminaire | 1465lm |
| Luminaire Efficacy | 97.7lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.6Kg |
| Technical Region | Input 48V |

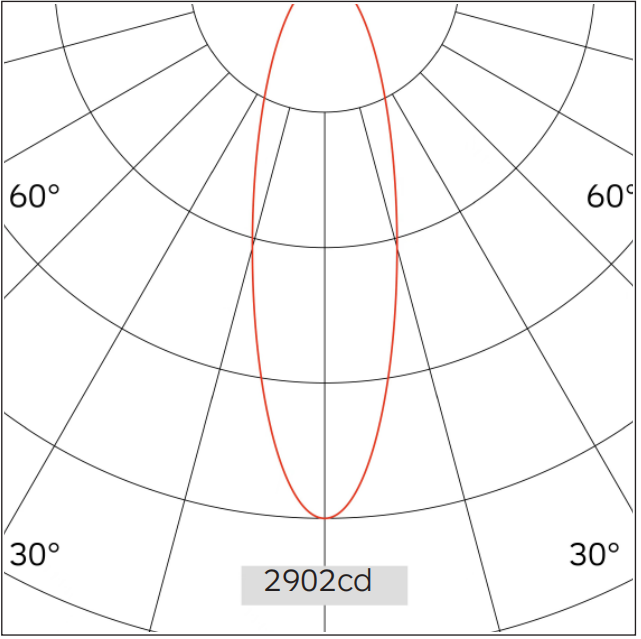

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 41° | ||
| 1.0 | 2902.12 | 0.74 |
| 2.0 | 725.53 | 1.48 |
| 3.0 | 322.46 | 2.22 |
| 4.0 | 181.38 | 2.96 |
| 5.0 | 116.08 | 3.70 |
Suitable for commercial spaces, such as clothing boutiques, furniture stores, brand display shops, automotive showrooms, jewelry counters, star-rated hotels, premium clubs, museums, chain retail stores, brand exhibition halls, professional showcases, cashier counters, and other accent lighting applications.
Suitable accessories
Download
Photometric Files

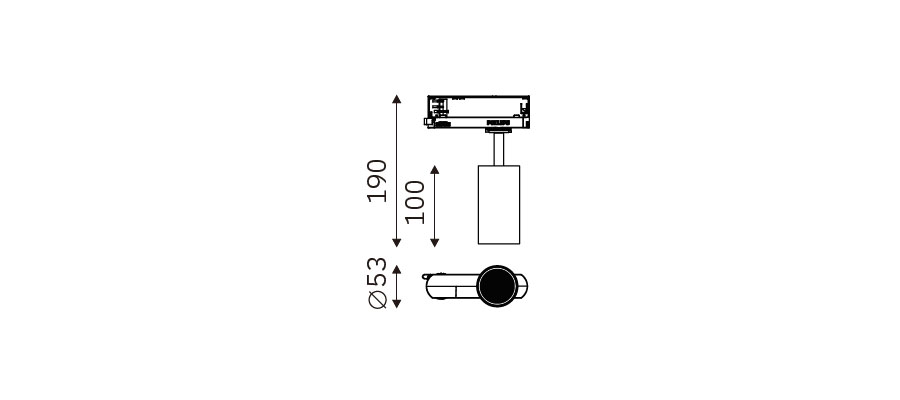

Technical Drawings
