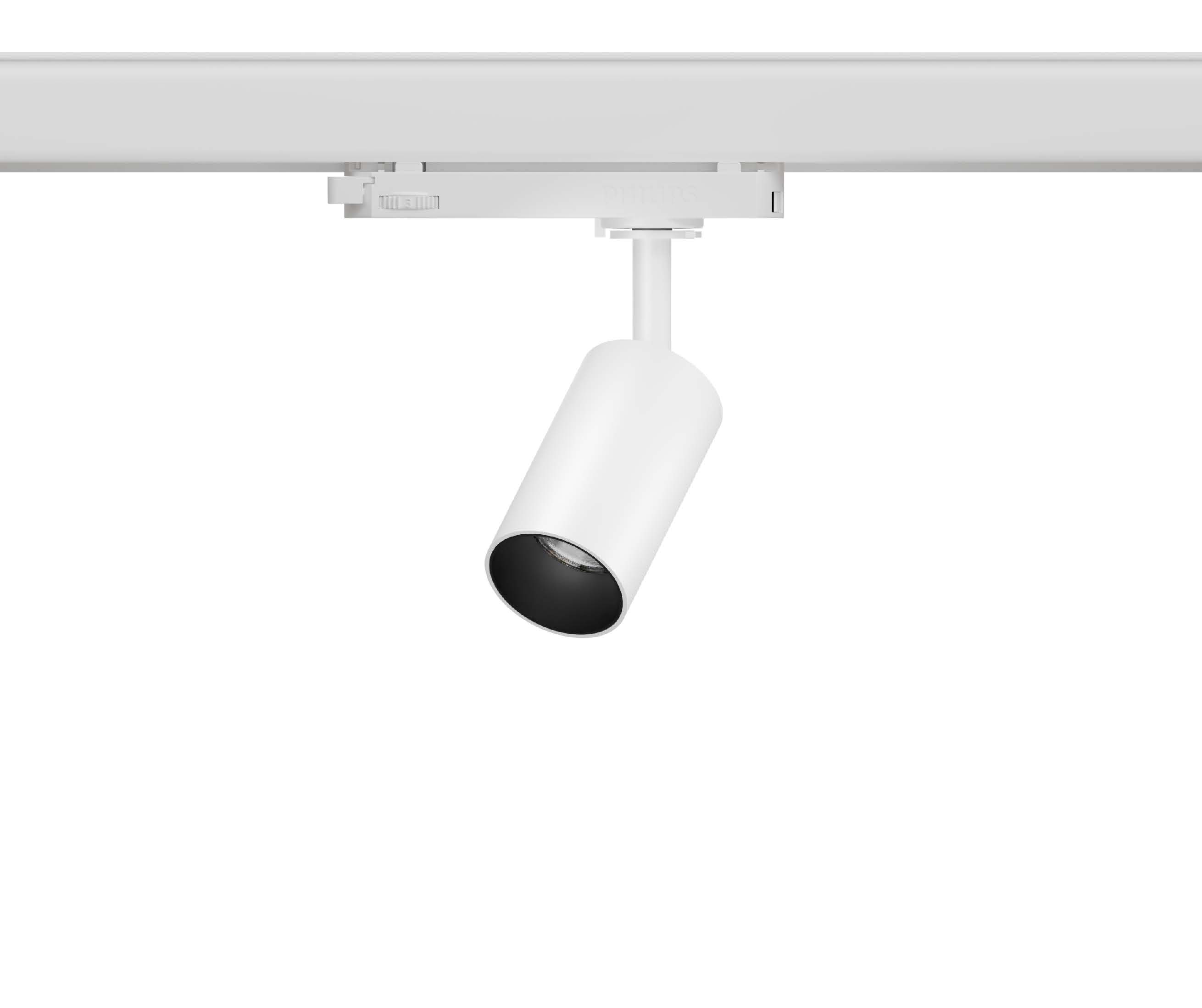

32.04536 BEAMX Track Lighting
| Connected Load | 10W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/2D/40D/55D |
| Light Distribution | 32.04536 BEAMX Track Lighting |
| Luminous Flux Of The Luminaire | 948lm |
| Luminaire Efficacy | 94.8lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | 1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.3Kg |
| Technical Region | Input 48V |

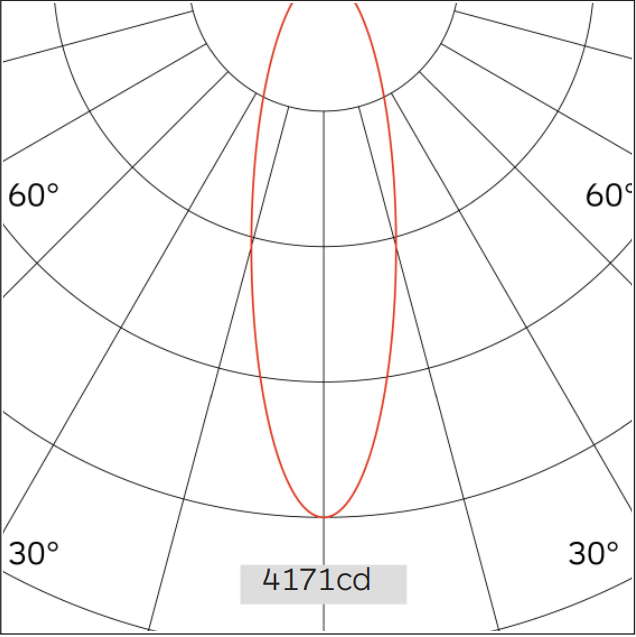

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 27° | ||
| 1.0 | 4171.66 | 0.47 |
| 2.0 | 1042.92 | 0.94 |
| 3.0 | 463.52 | 1.41 |
| 4.0 | 260.73 | 1.89 |
| 5.0 | 166.87 | 2.36 |
Suitable for commercial spaces, such as clothing boutiques, furniture stores, brand display shops, automotive showrooms, jewelry counters, star-rated hotels, premium clubs, museums, chain retail stores, brand exhibition halls, professional showcases, cashier counters, and other accent lighting applications.
Suitable accessories
Download
Photometric Files

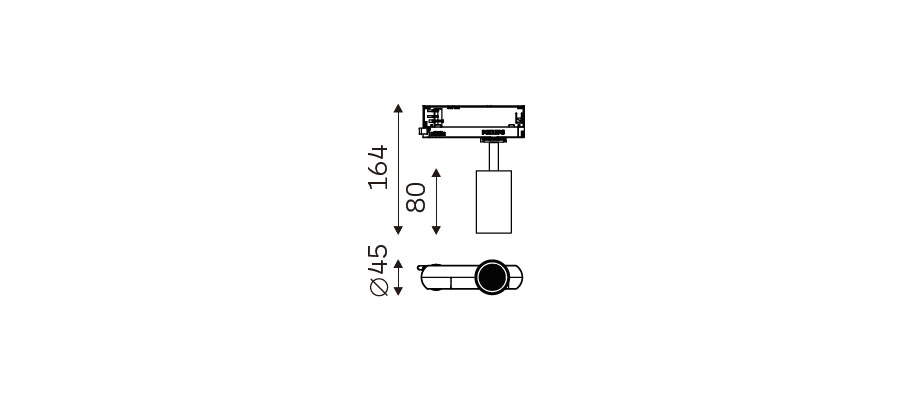

Technical Drawings
