UTH 80

UTH 80

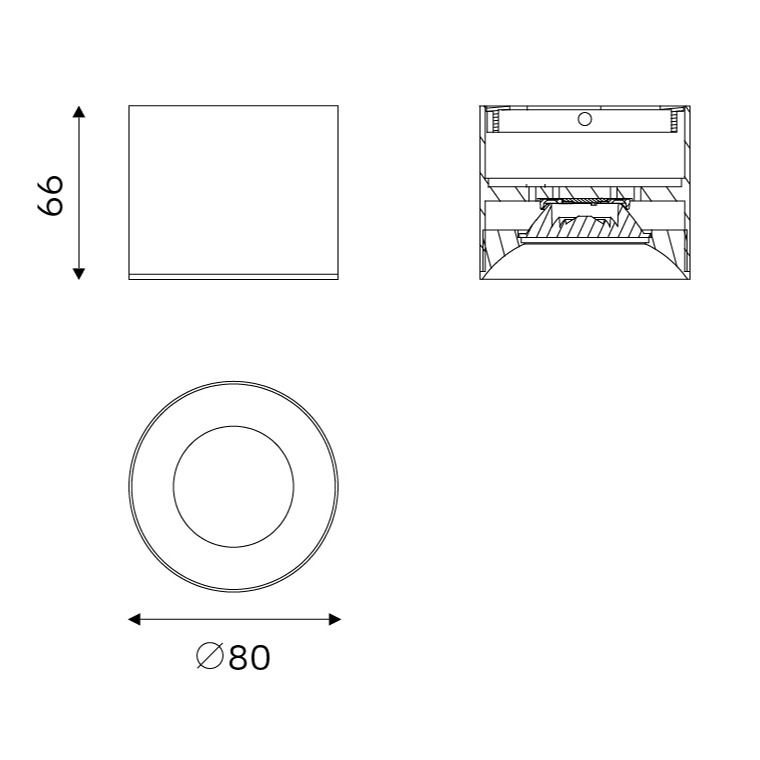

UTH 80 dimension drawing
Product familyUTH
Model91.08011
DimensionsØ80*66mm
Power10W
Luminous flux1126lm
Efficacy112.6lm/W
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle17° / 25° / 34° / 60°
IP ratingIP20
FinishWhite / Black
MountingSurface Mounted
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

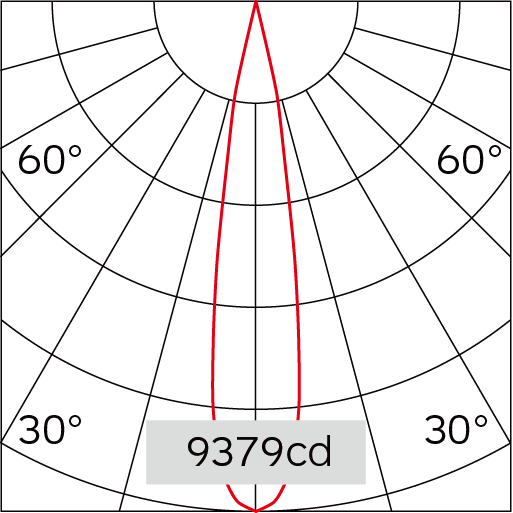

17°

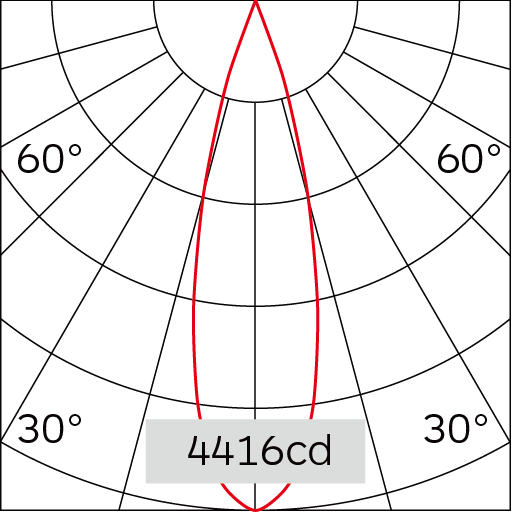

25°

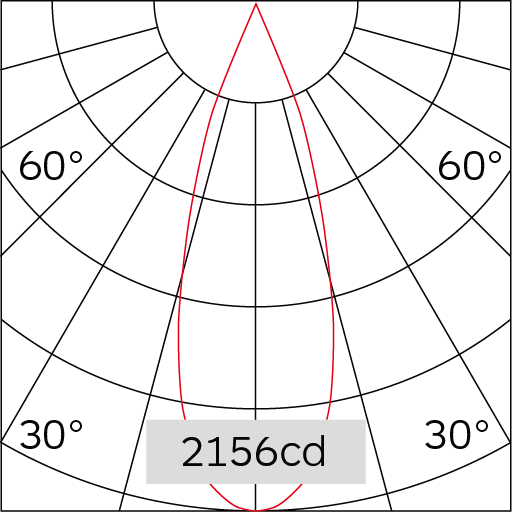

34°

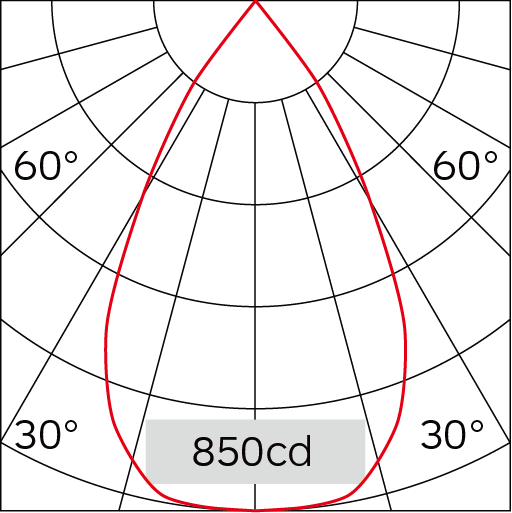

60°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗

Other sizes

More products in UTH

View family →
UTH 65

UTH 65

Wattage: 6W

Size: Ø65*55mm

Lumen Output: 562lm

Beam Angle: 21° / 27° / 35° / 60°
UTH 95

UTH 95

Wattage: 15W

Size: Ø95*72mm

Lumen Output: 1694lm

Beam Angle: 14° / 25° / 35° / 58°
