ADJ 116

ADJ 116

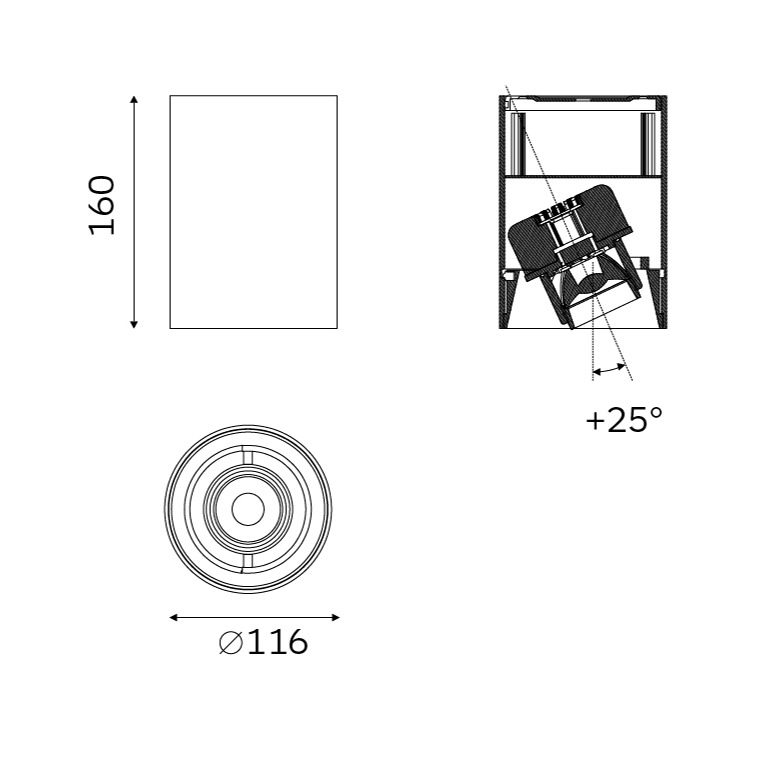

ADJ 116 dimension drawing
Product familyADJ
Model93.11611
DimensionsØ116*160mm
Power20W
Luminous flux2190lm
Efficacy109.5lm
Voltage220-240V
CCT2700K / 3000K / 4000K
CRICRI90
Beam angle19° / 25° / 41° / 53°
IP ratingIP20
FinishWhite / Black
MountingSurface Mounted
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

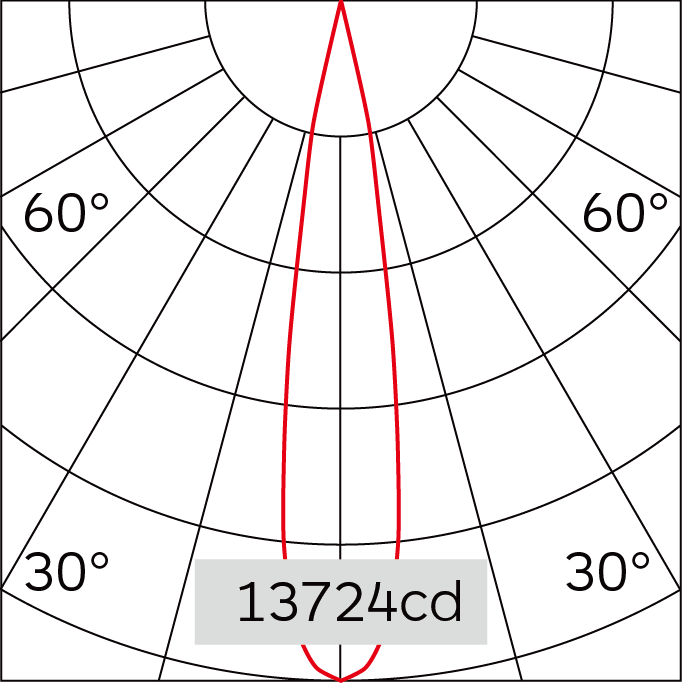

19°

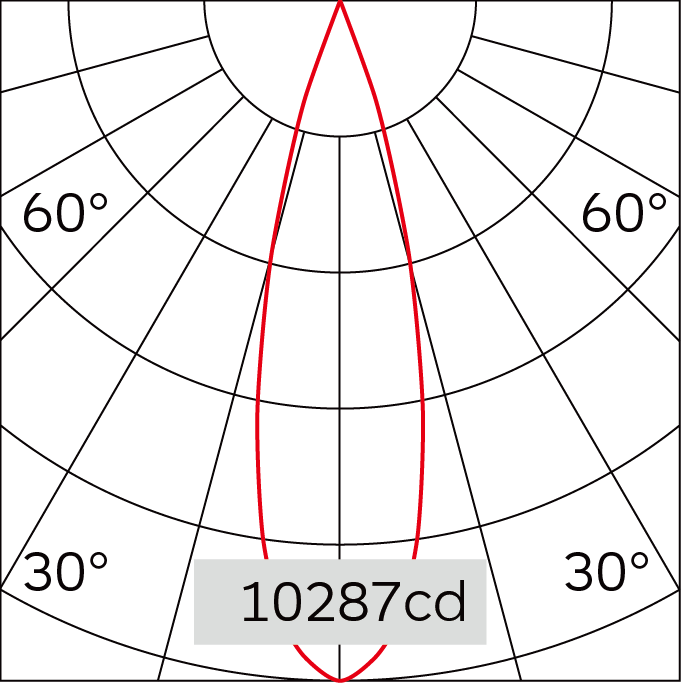

25°

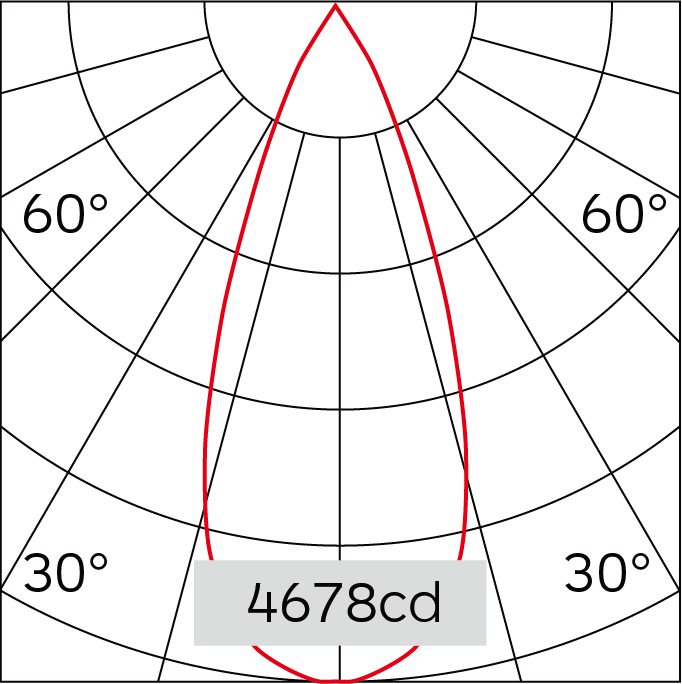

41°

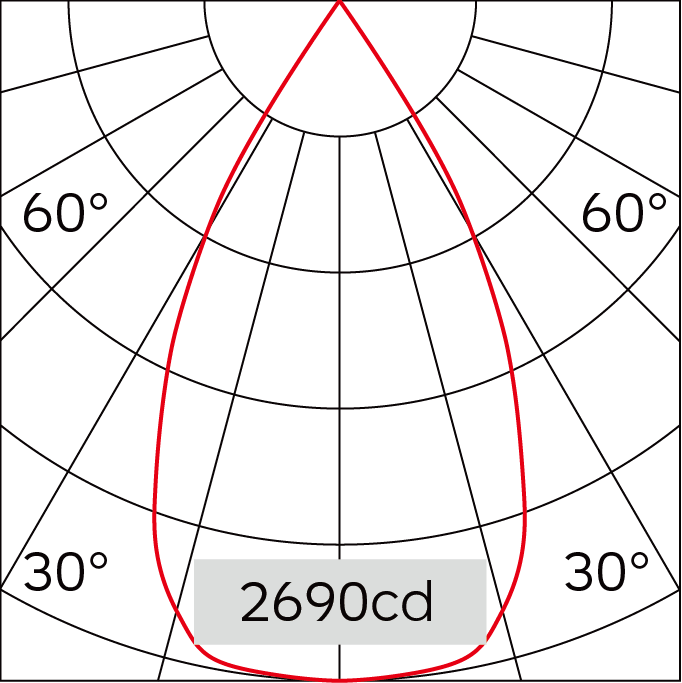

53°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
