MAGENTRA 438
Product familyMAGENTRA
Model61.02370

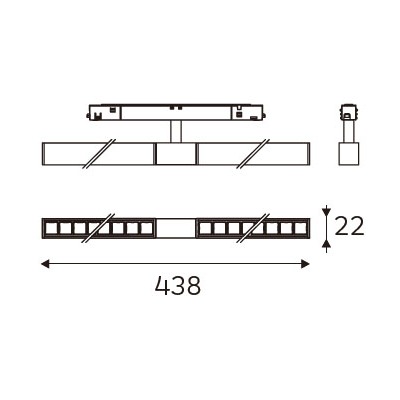

Dimensions438*22mm
Power22W
Luminous flux1839lm
Efficacy83.5lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90

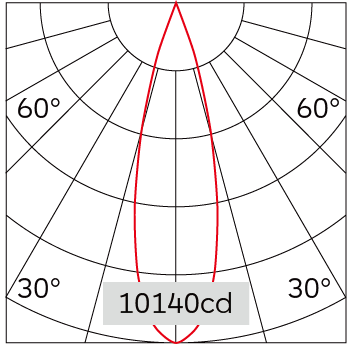

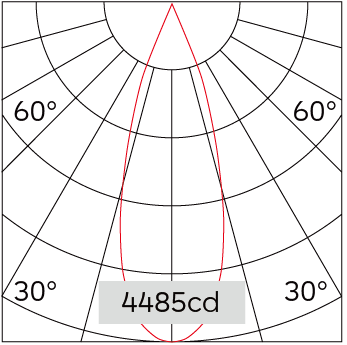

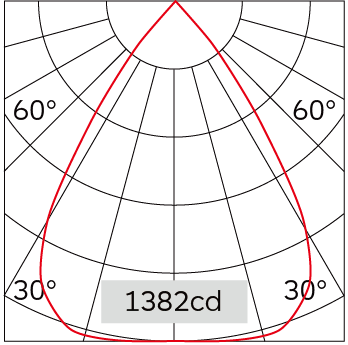

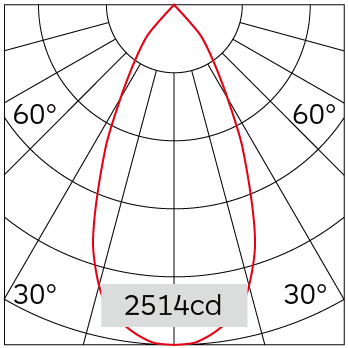

Beam angle25° / 36° / 49° / 67°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
