EMMA 45

EMMA 45
EMMA 45 dimension drawing
Product familyEMMA
Model62.04512
DimensionsØ45*100mm
Power11W
Luminous flux935lm
Efficacy85lm/W
Voltage48V
CCT2700K/3000K/4000K
CRICRI90
Beam angle19° / 29° / 44° / 56°
IP ratingIP20
FinishWhite/Black
MountingLow Voltage Track
DimmingOn/Off / Dali / Triac
Get a quoteTechnical filesPDF / Print

Product overview

Technical product information

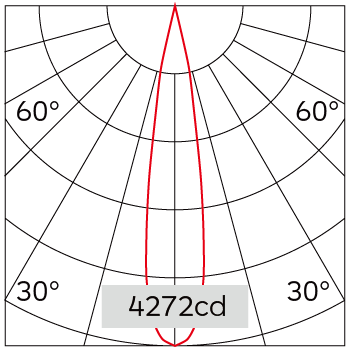

19°

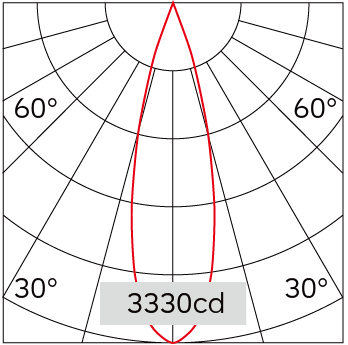

29°

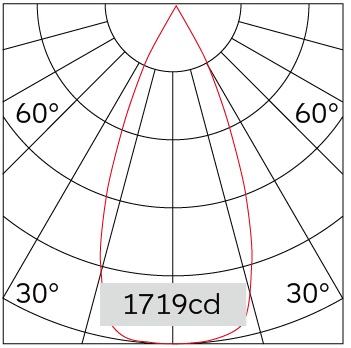

44°

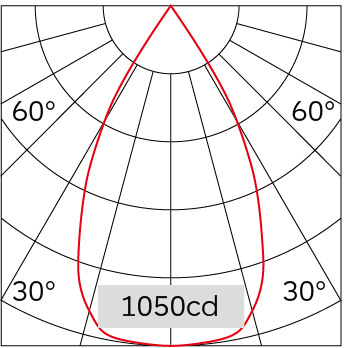

56°

Downloads

Planning files

DatasheetDownload ↗IES / LDTDownload ↗High-res imageDownload ↗Dimension drawingDownload ↗
