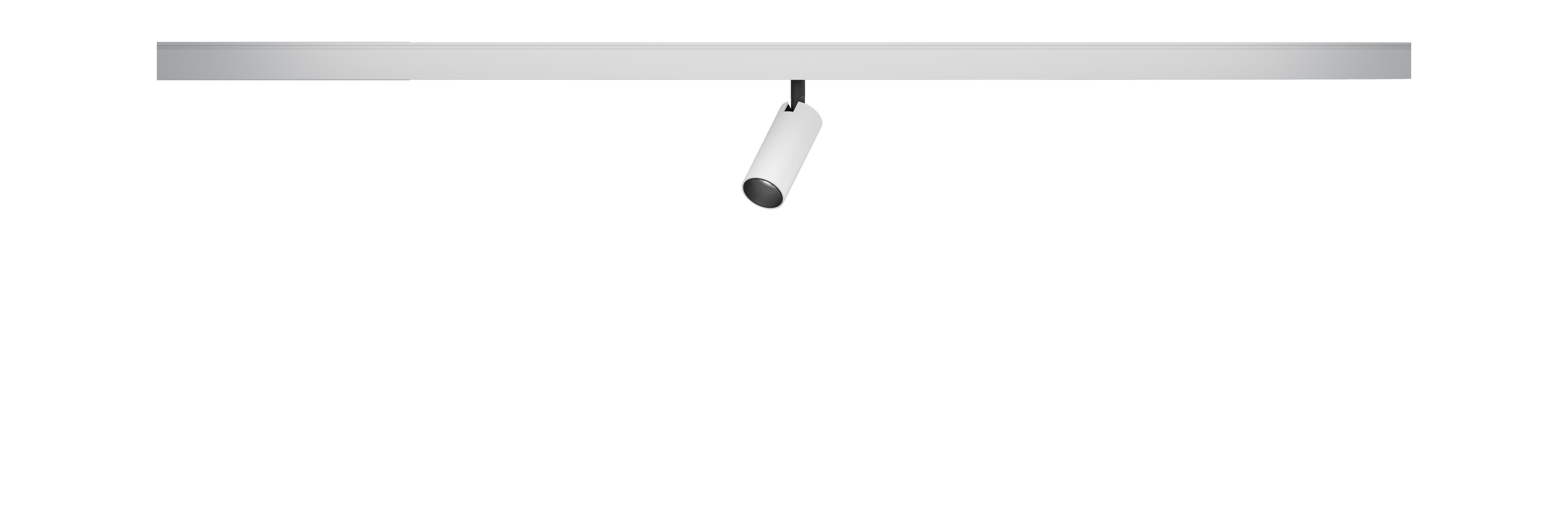

62.02511 FOS Magnetic Track Lighting
Connected Load | 3.8W |
Colour Temperature | 2700/3000/3500/4000K |
Colour Rendition Index | CRI 90 |
Optics | LENS |
Beam Angle | 17D/26D/31D/53D |
Track Phases | Low Voltage Track |
Light Distribution | 62.02511 FOS Magnetic Track Lighting |
Luminous Flux Of The Luminaire | 197lm |
Luminaire Efficacy | 52lm/W |
Colour Deviation | SDCM<5 |
Light Source | LED |
LED Type | COB |
Dimming Method | 1-10V/ Dali |
Cover Material | Aluminum |
Body Material | Aluminum |
IP Rating | IP20 |
Housing Colour | Sandy White/ Sandy Black |
Weight | 0.25Kg |
Technical Region | Input 48V |
Light Beam Table
h(m) | E(lx) | D(m) |
---|---|---|
26° | ||
1 | 591 | 0.47 |
2 | 147 | 0.94 |
3 | 65 | 1.40 |
4 | 36 | 1.87 |
5 | 23 | 2.34 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories

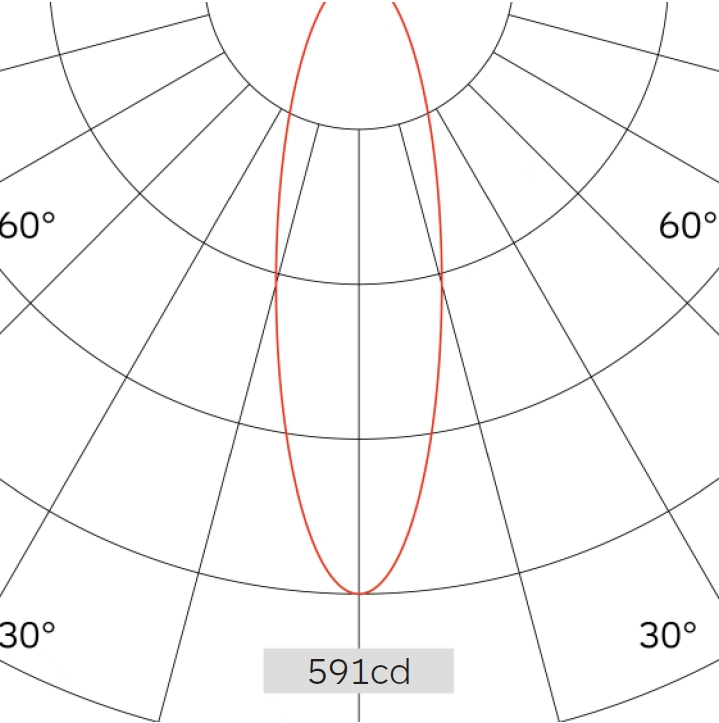

Photometric Files

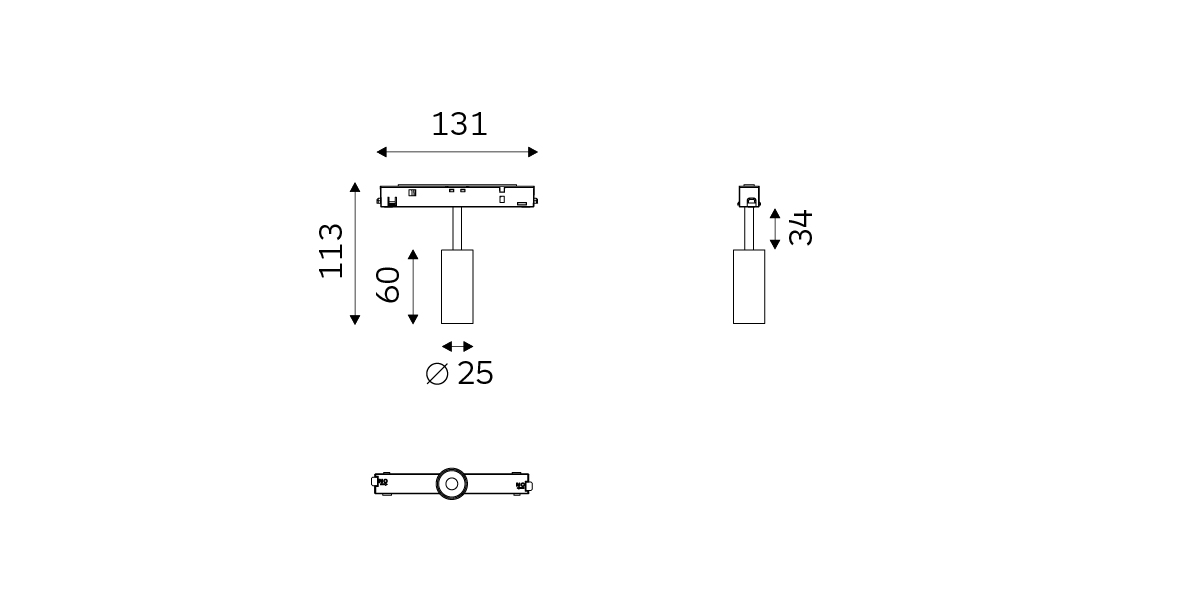

Technical Drawings
