Compact Fixed Design
The small housing supports clean ceiling layouts and efficient use of ceiling space.
SLIM HIGH EFFICIENCY RECESSED DOWNLIGHT
Small size, high lumen output and efficient fixed downlighting.
* SLIM is a small-size fixed recessed downlight designed for efficient commercial illumination.
* The range combines compact dimensions with high lumen output, making it useful for retail, office and general commercial lighting.
* SLIM is suitable for projects that need practical, efficient downlighting with a simple ceiling appearance.
Key Specifications
Applications: Retail / Office / Commercial
Diameter Range: Ø55 / Ø75 / Ø95
Power Range: 14W-40W
Version: Fixed recessed downlight
Output: High lumen output
Efficiency: High efficiency
Control: ON/OFF / TRIAC / DALI where available
* The range combines compact dimensions with high lumen output, making it useful for retail, office and general commercial lighting.
* SLIM is suitable for projects that need practical, efficient downlighting with a simple ceiling appearance.
Key Specifications
Applications: Retail / Office / Commercial
Diameter Range: Ø55 / Ø75 / Ø95
Power Range: 14W-40W
Version: Fixed recessed downlight
Output: High lumen output
Efficiency: High efficiency
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size

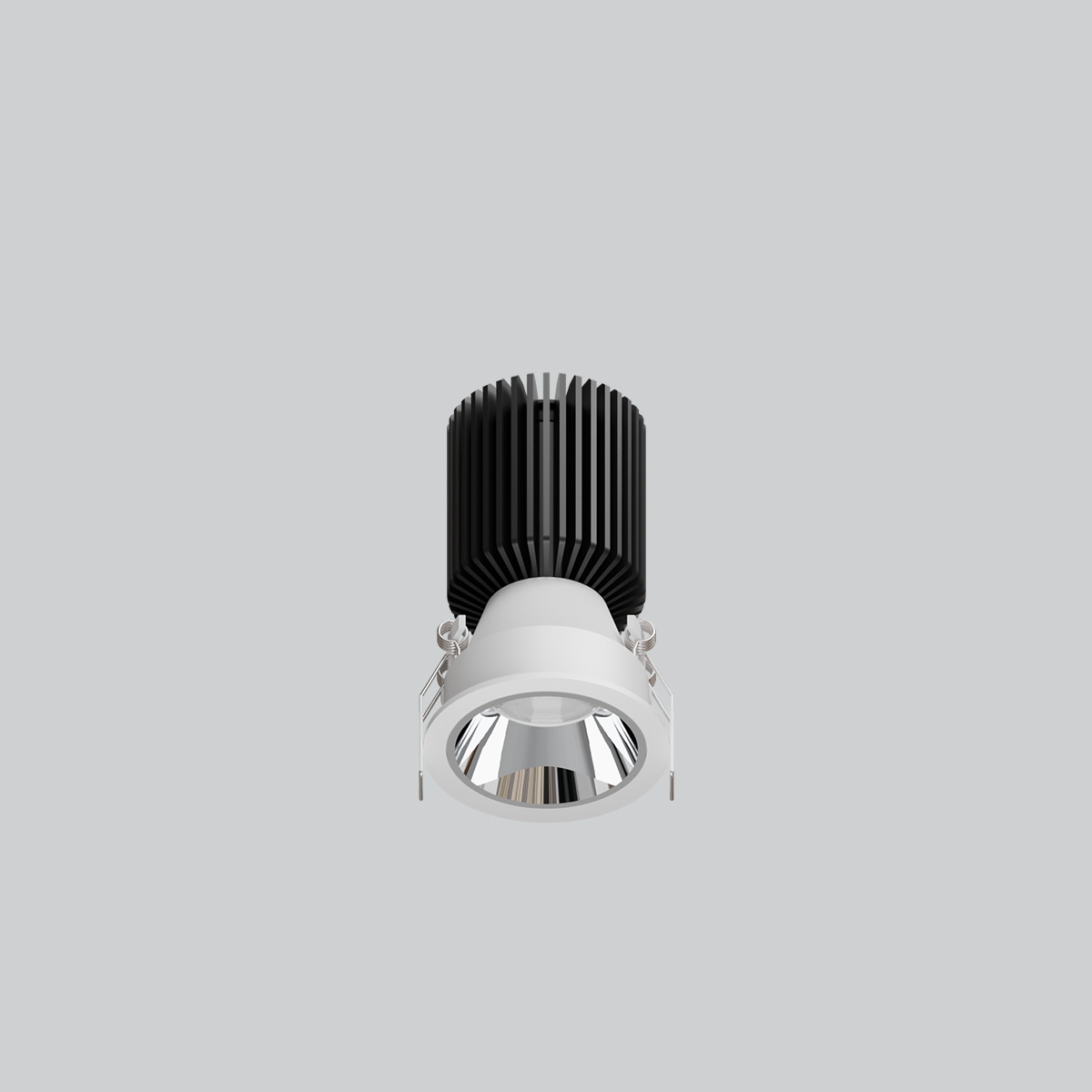

SLIM 55
Wattage: 14W
Size: Ø62*100mm
Lumen Output: 1493lm
Beam Angle: 25° / 32° / 42° / 46°

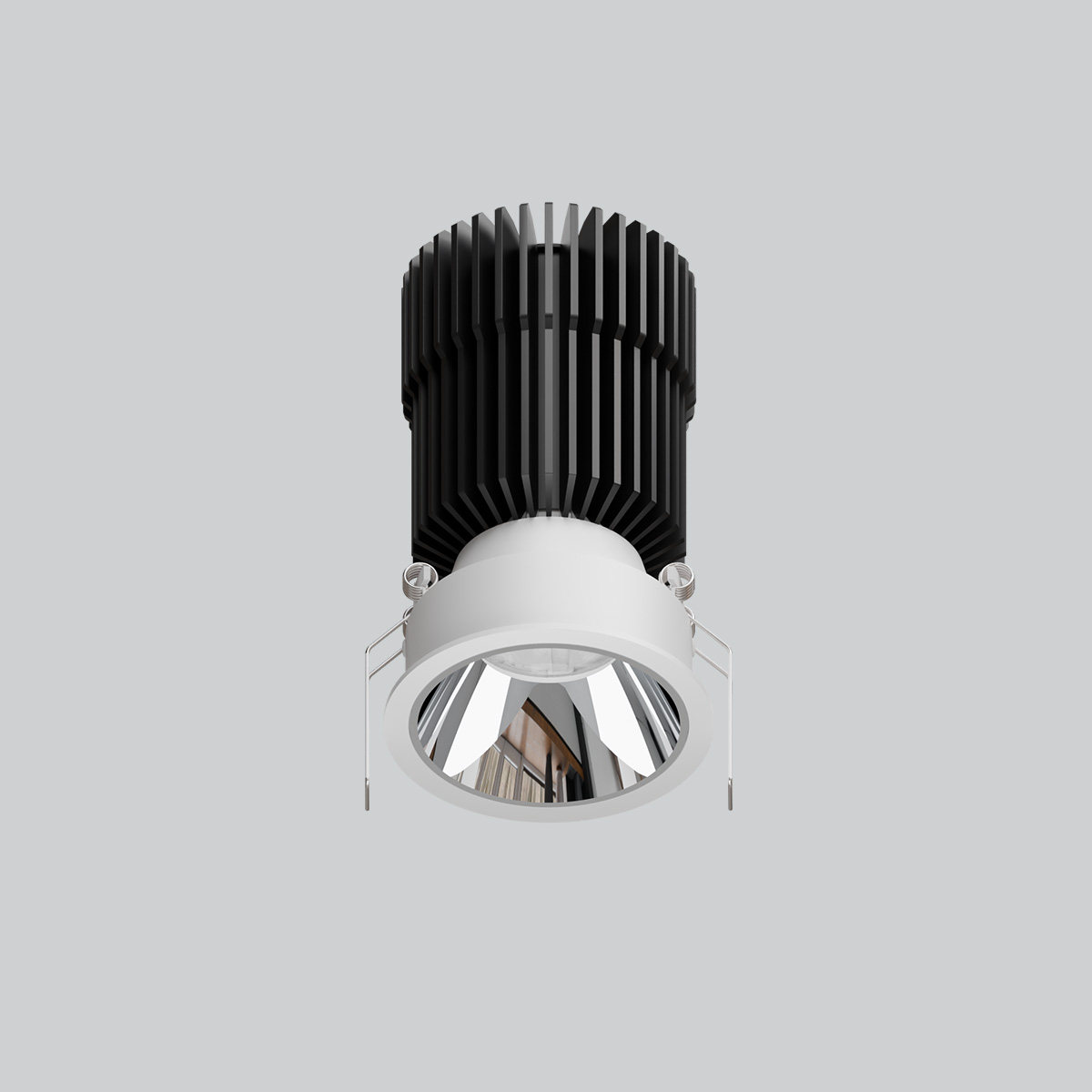

SLIM 75
Wattage: 24W
Size: Ø83*125mm
Lumen Output: 2958lm
Beam Angle: 30° / 40° / 46° / 52°

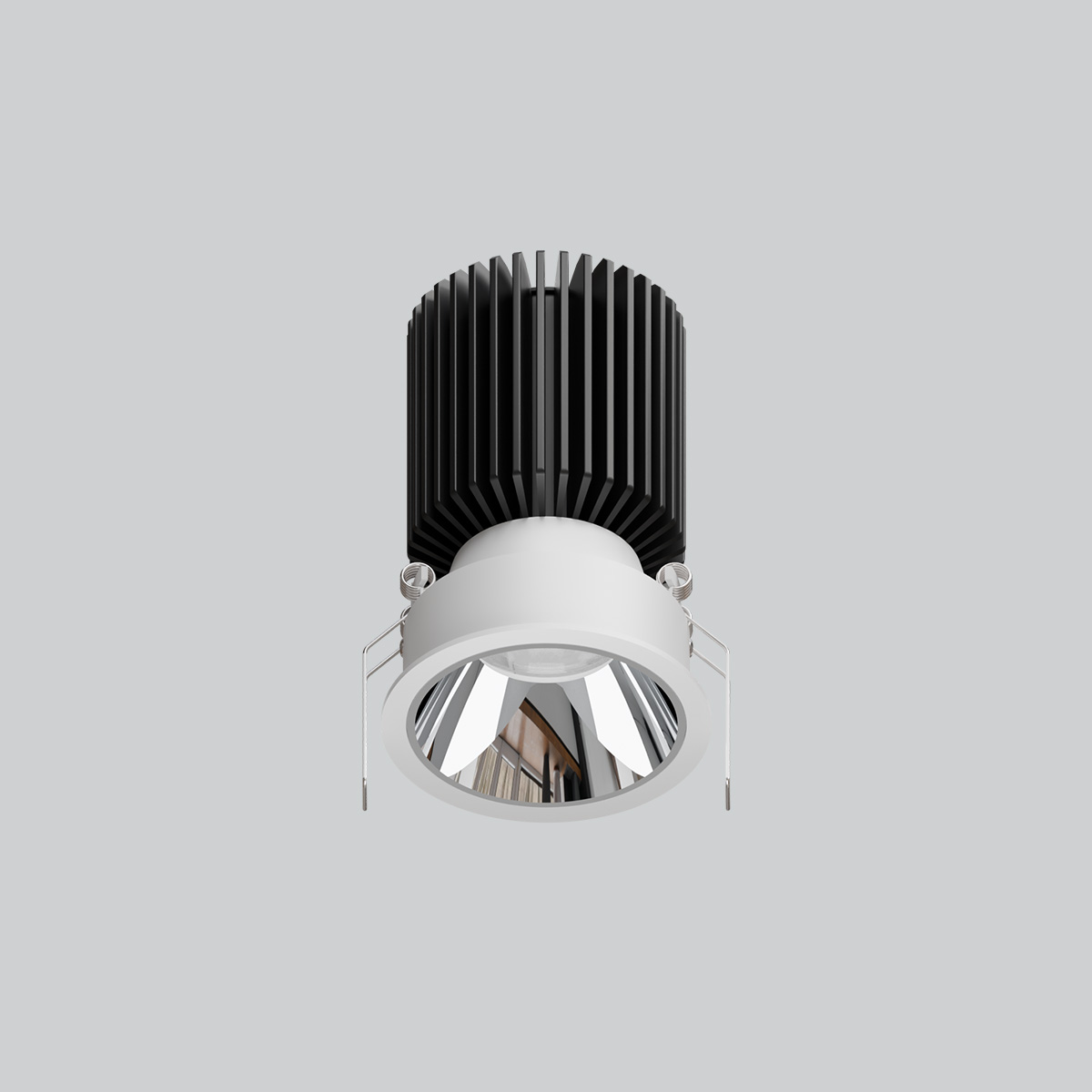

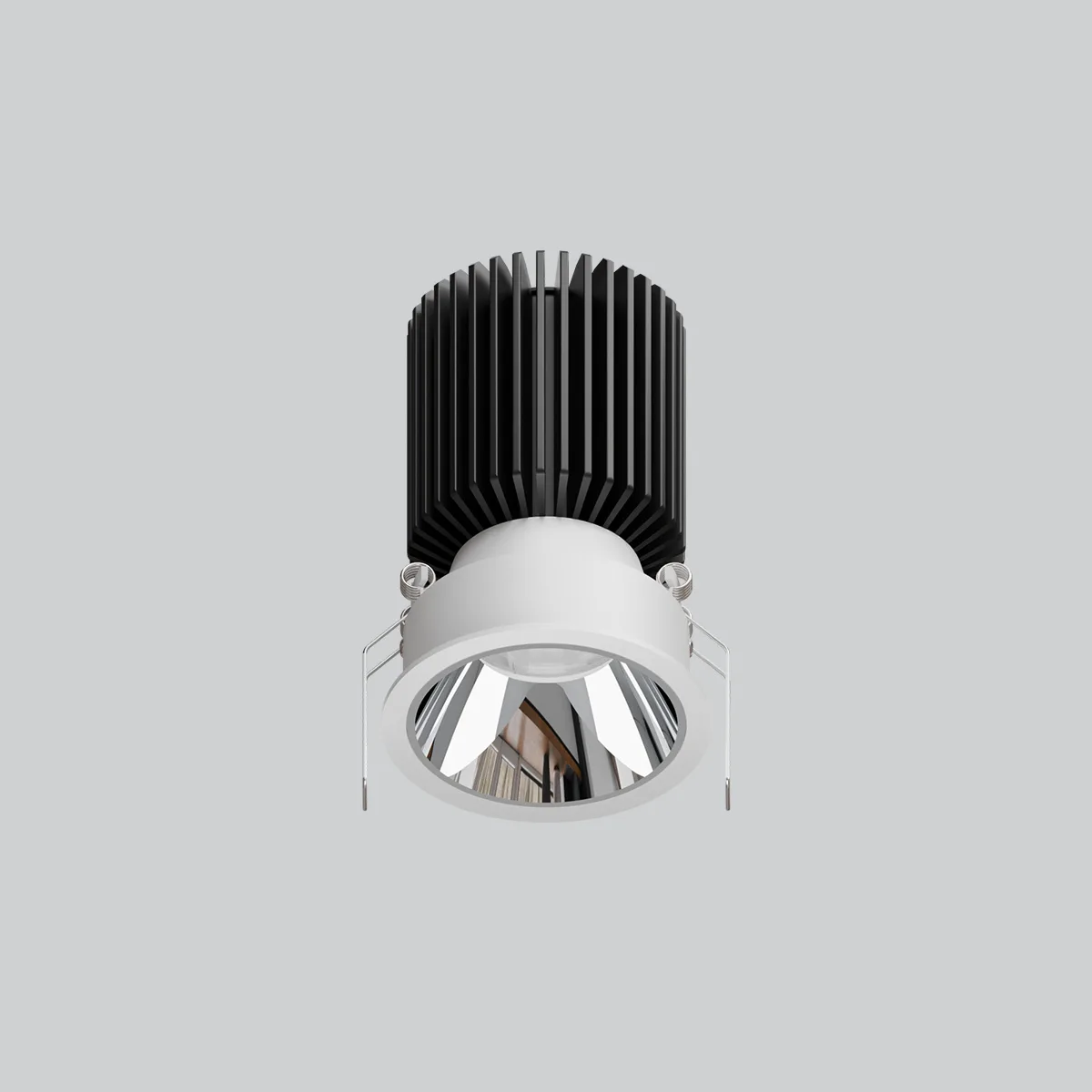

SLIM 75
Wattage: 32W
Size: Ø83*138mm
Lumen Output: 3530lm
Beam Angle: 31° / 40° / 46° / 51°

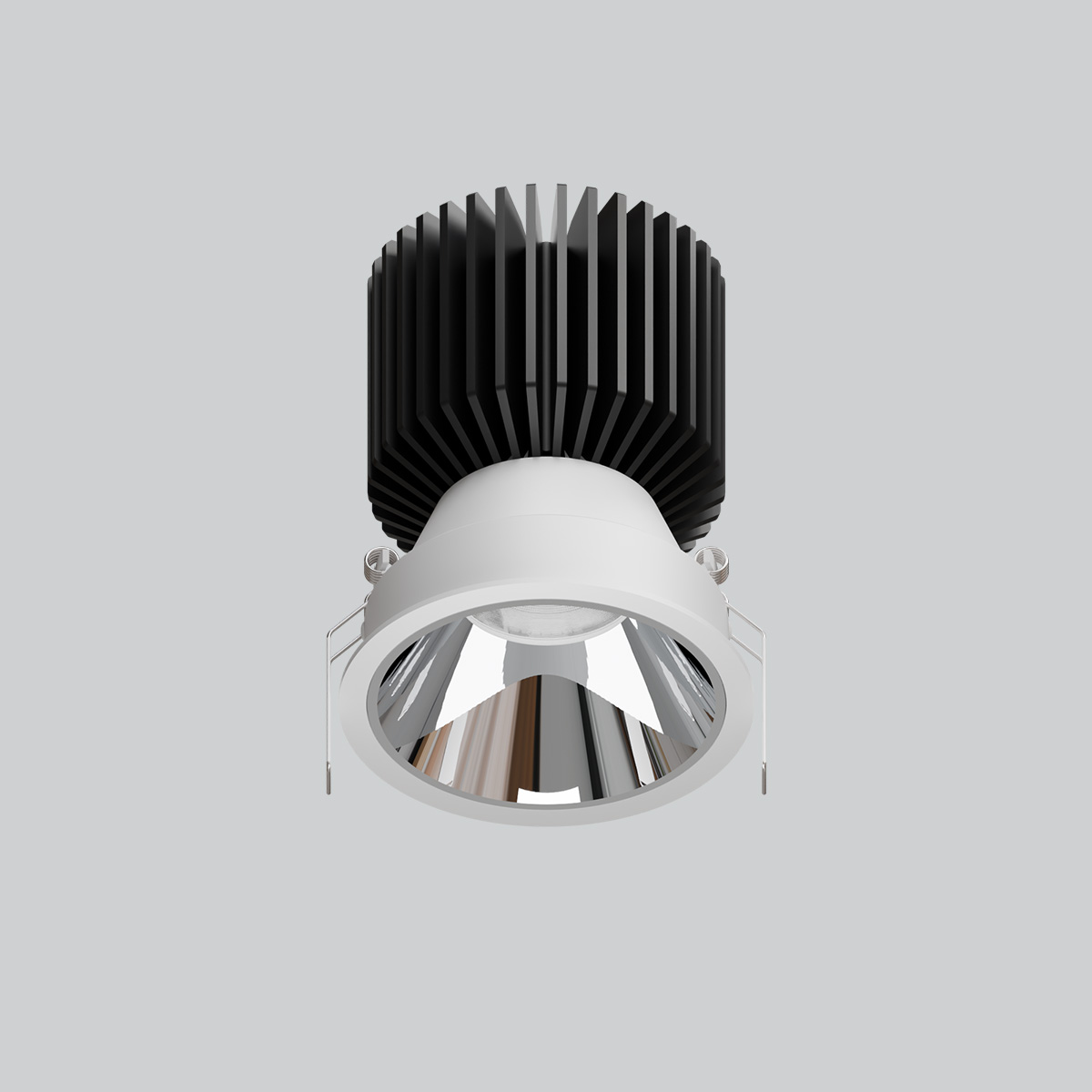

SLIM 95
Wattage: 40W
Size: Ø105*130mm
Lumen Output: 4374lm
Beam Angle: 27° / 32° / 41° / 51°
Why Choose SLIM
SLIM helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for retail / office / commercial projects.
Characteristics
What defines SLIM
High Lumen Output
SLIM provides practical brightness for commercial interiors while keeping fixture size controlled.
High Efficiency
The range supports energy-conscious commercial lighting projects.
Simple Specification
A fixed downlight format makes SLIM easy to use across repeat retail and office areas.
Applications
Where SLIM Performs Best
SLIM should be specified as a fixed high-output recessed downlight for projects that need efficient, clean ceiling illumination without adjustable aiming. Use it for retail, office and commercial areas where repeatable spacing, output and simple ceiling appearance matter.
Retail Lighting
SLIM fits retail areas that need practical recessed lighting with a neat ceiling appearance, especially where the display layout is stable and does not require frequent aiming changes.
- Recommended mounting height: about 2.8–4.0 m for typical retail ceilings
- Use fixed spacing for shelves
- circulation and stable display zones
- confirm lux and uniformity with layout calculation
- Selection difference: choose SLIM for fixed high-output downlighting
- choose INTERO or track lights when aiming changes are needed
- Design limit: not ideal for changing mannequin or seasonal display focus without repositioning fixtures
Office Lighting
For offices, SLIM can support lobbies, corridors, meeting areas and general commercial interiors where a compact fixed downlight with efficient output is preferred over visible track lighting.
- Recommended mounting height: about 2.7–3.6 m for offices
- lobbies and circulation spaces
- Glare strategy: check cut-off and spacing so brightness stays comfortable for daily work and movement
- Use with linear/task lighting where work-plane uniformity requirements are strict
- Control note: DALI is useful for open-office zones
- ON/OFF or TRIAC may suit smaller rooms
Commercial Lighting
In commercial buildings, SLIM provides a repeatable fixed downlight solution for corridors, lobbies, showrooms and service areas where efficiency and simple maintenance matter.
- Recommended use: repeated ceiling grids
- circulation routes and general commercial zones
- Size/output logic: Ø55 / Ø75 / Ø95 should match ceiling height and target brightness
- Confirm driver access
- dimming type and replacement strategy before installation
- Alternative choice: choose HIGH LUMEN PRO or track lighting for high ceilings or long-throw accents

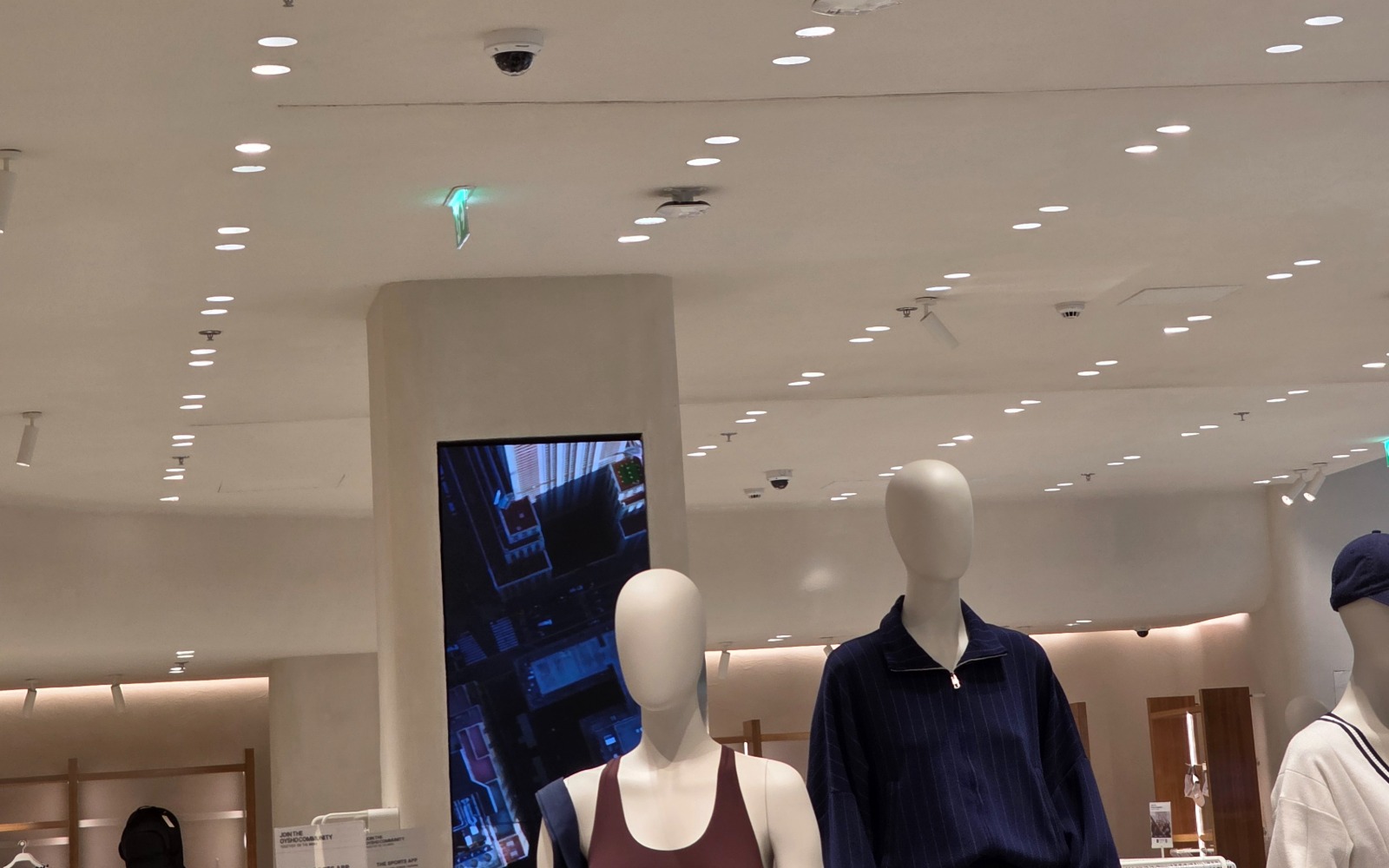

General Area Lighting
SLIM is best treated as a fixed general-area downlight. It can provide clean, practical illumination, but the final spacing should be checked through photometric calculation rather than copied from decorative layouts.
- Use wider beams for general areas and narrower beams only when local emphasis is required
- Verify spacing-to-height ratio with IES/LDT files to avoid patchy brightness
- Not intended for wall washing or precise object highlighting
- Coordinate ceiling cut-out
- finish
- driver and emergency/control requirements early
Projects
Projects using SLIM
See how SLIM delivers precision and performance in real-world projects.
Retail
Holland Bakery Store
SLIM track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedSLIM 55
Beam angle32°
ControlDALI
Retail
BARRIE Boutique
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedSLIM 75
Beam angle30°
ControlTRIAC
Retail

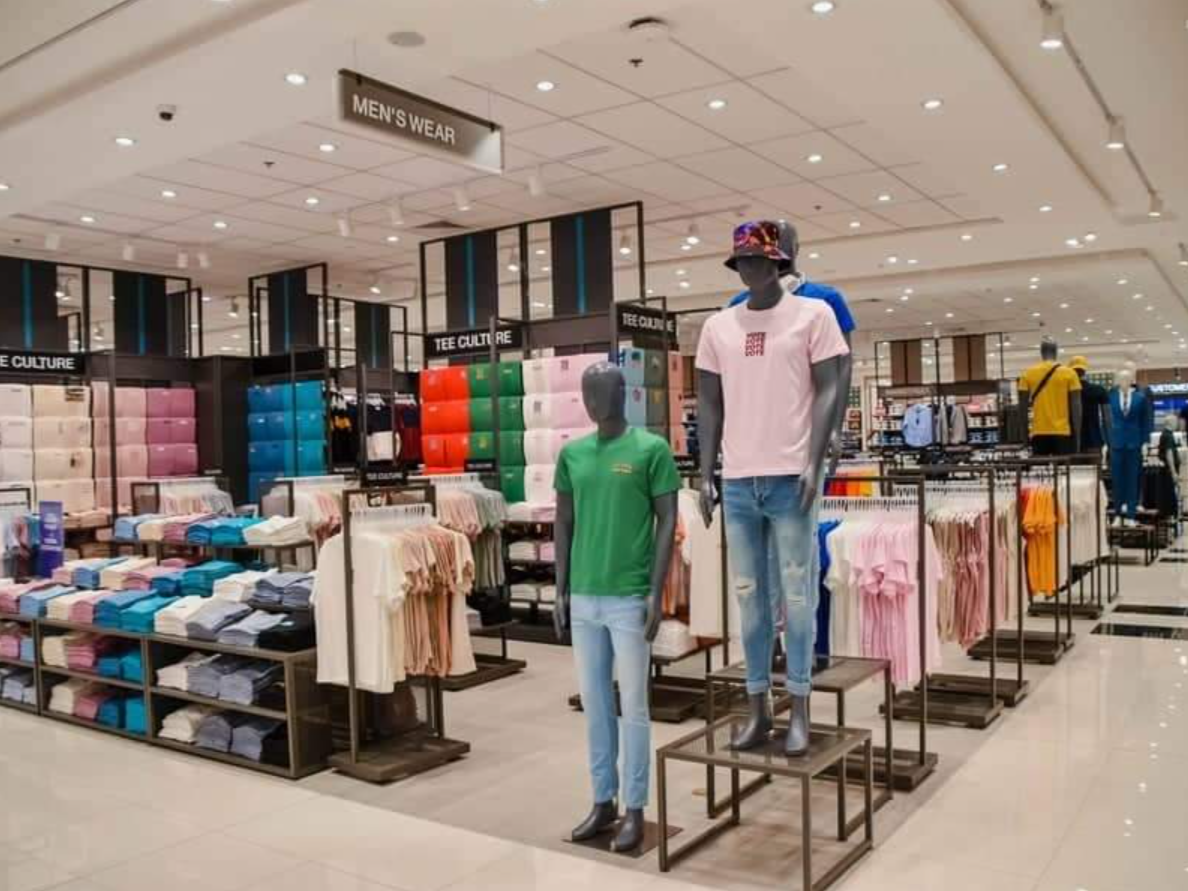

SM Store Philippines
SLIM provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedSLIM 75
Beam angle40°
ControlDALI
System catalogue
Download SLIM system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request SLIM for your next project
Get quotation support, samples and technical files for this product family.
