CNC Precision Housing
Precision manufacturing supports a clean, high-quality product appearance for premium interiors.
SILO PRECISION CNC RECESSED DOWNLIGHT
Ultra-thin trim and curved frame detailing for luxury interiors.
* SILO is a precision recessed downlight family designed for luxury interiors that require refined ceiling details.
* The CNC housing, ultra-thin trim and curved frame help the luminaire fit the ceiling cleanly while supporting a removable center module.
* The range is suitable for hotels, villas and luxury residential projects.
Key Specifications
Applications: Hotel / Villa / Luxury Residential
Diameter Range: Ø55 / Ø75 / Ø95
Power Range: 11W-28W
Housing: CNC precision housing
Trim: Ultra-thin trim
Module: Removable center module
Control: ON/OFF / TRIAC / DALI where available
* The CNC housing, ultra-thin trim and curved frame help the luminaire fit the ceiling cleanly while supporting a removable center module.
* The range is suitable for hotels, villas and luxury residential projects.
Key Specifications
Applications: Hotel / Villa / Luxury Residential
Diameter Range: Ø55 / Ø75 / Ø95
Power Range: 11W-28W
Housing: CNC precision housing
Trim: Ultra-thin trim
Module: Removable center module
Control: ON/OFF / TRIAC / DALI where available
Available products
Choose the right size

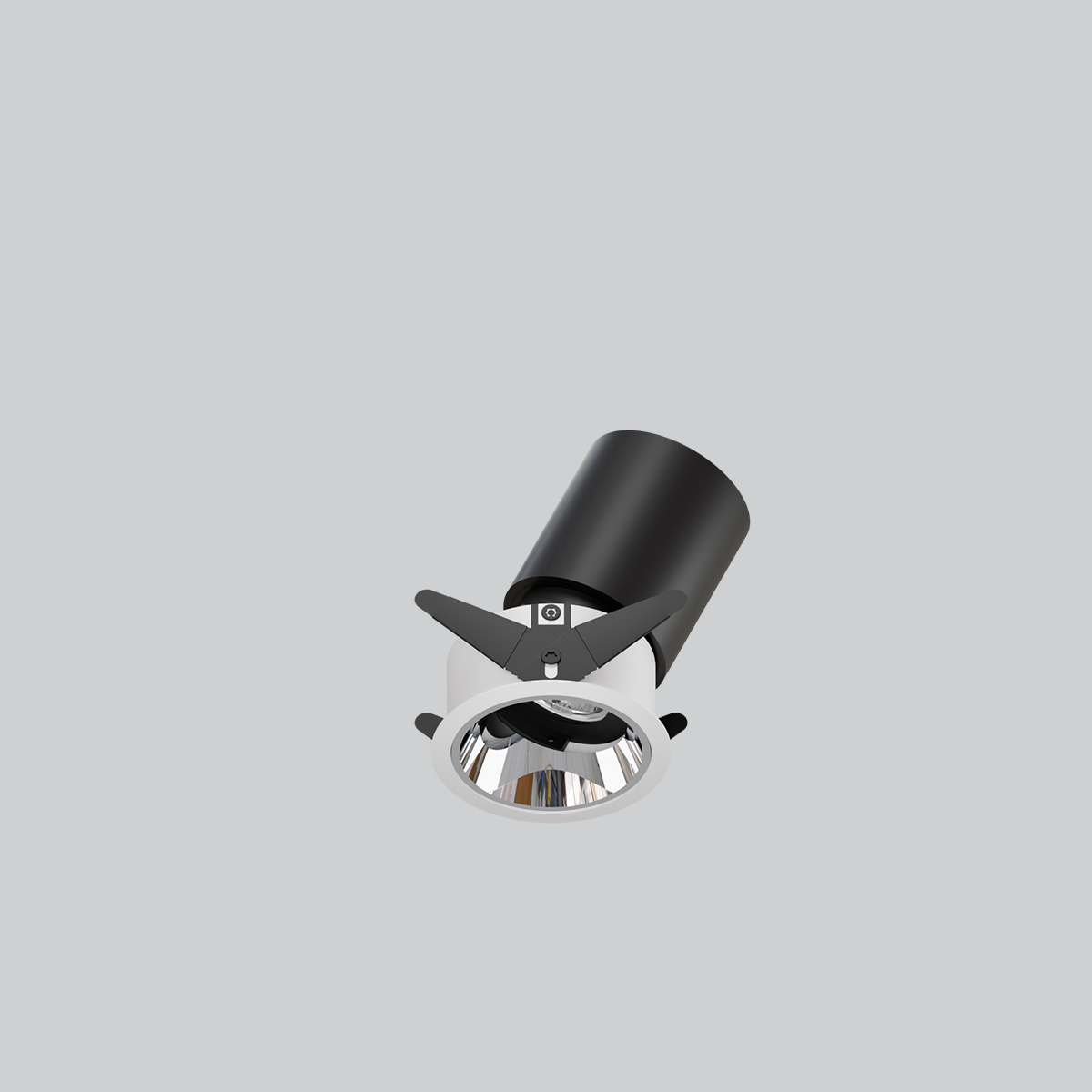

SILO 55
Wattage: 11W
Size: Ø60*90mm
Lumen Output: 734lm
Beam Angle: 17° / 20° / 29° / 40°

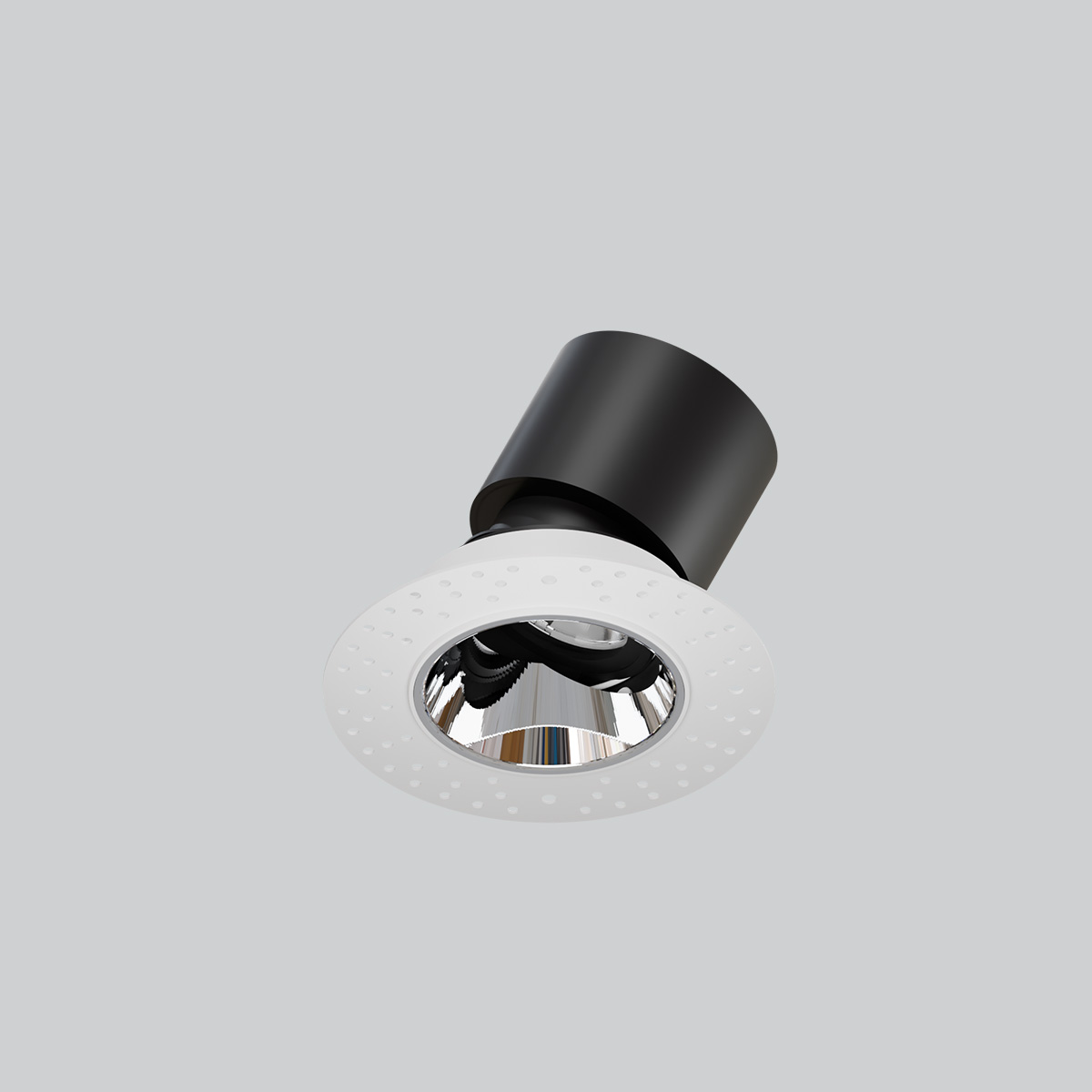

SILO 75
Wattage: 14W
Size: Ø80*95mm
Lumen Output: 1618lm
Beam Angle: 18° / 32° / 42° / 52°

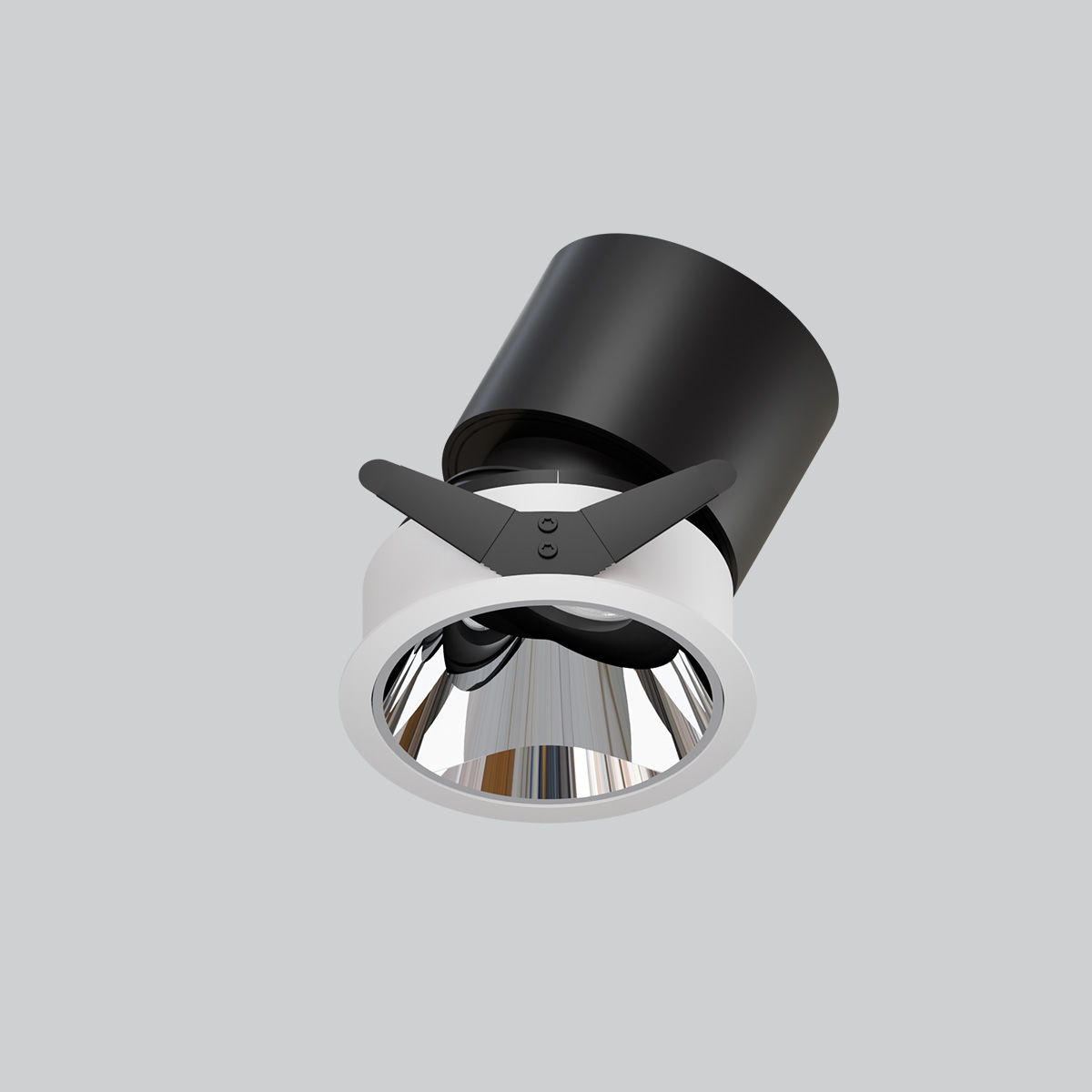

SILO 95
Wattage: 28W
Size: Ø105*140mm
Lumen Output: 2974lm
Beam Angle: 19° / 25° / 39° / 48°

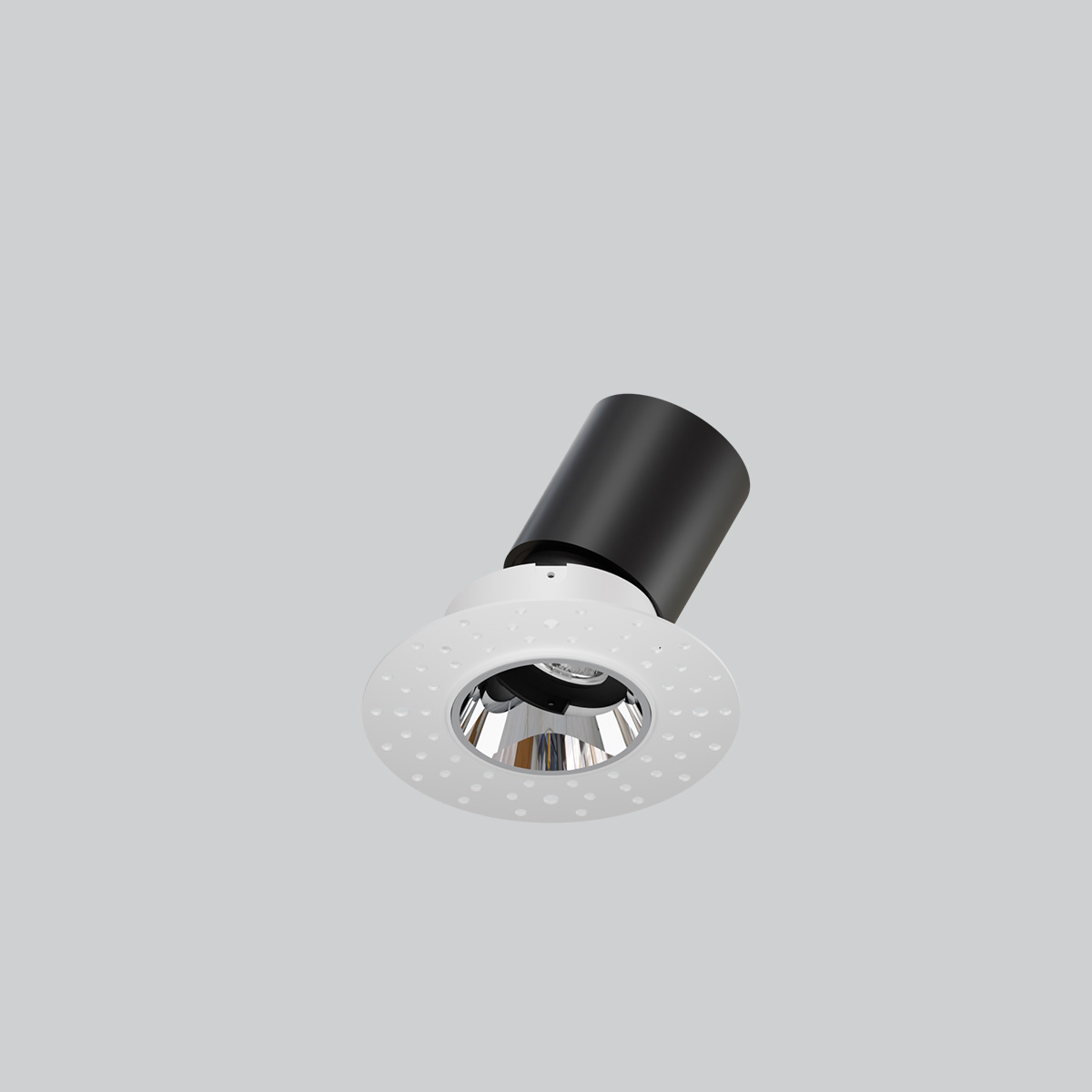

SILO 55
Wattage: 11W
Size: Ø95*90mm
Lumen Output: 734lm
Beam Angle: 17° / 20° / 29° / 40°

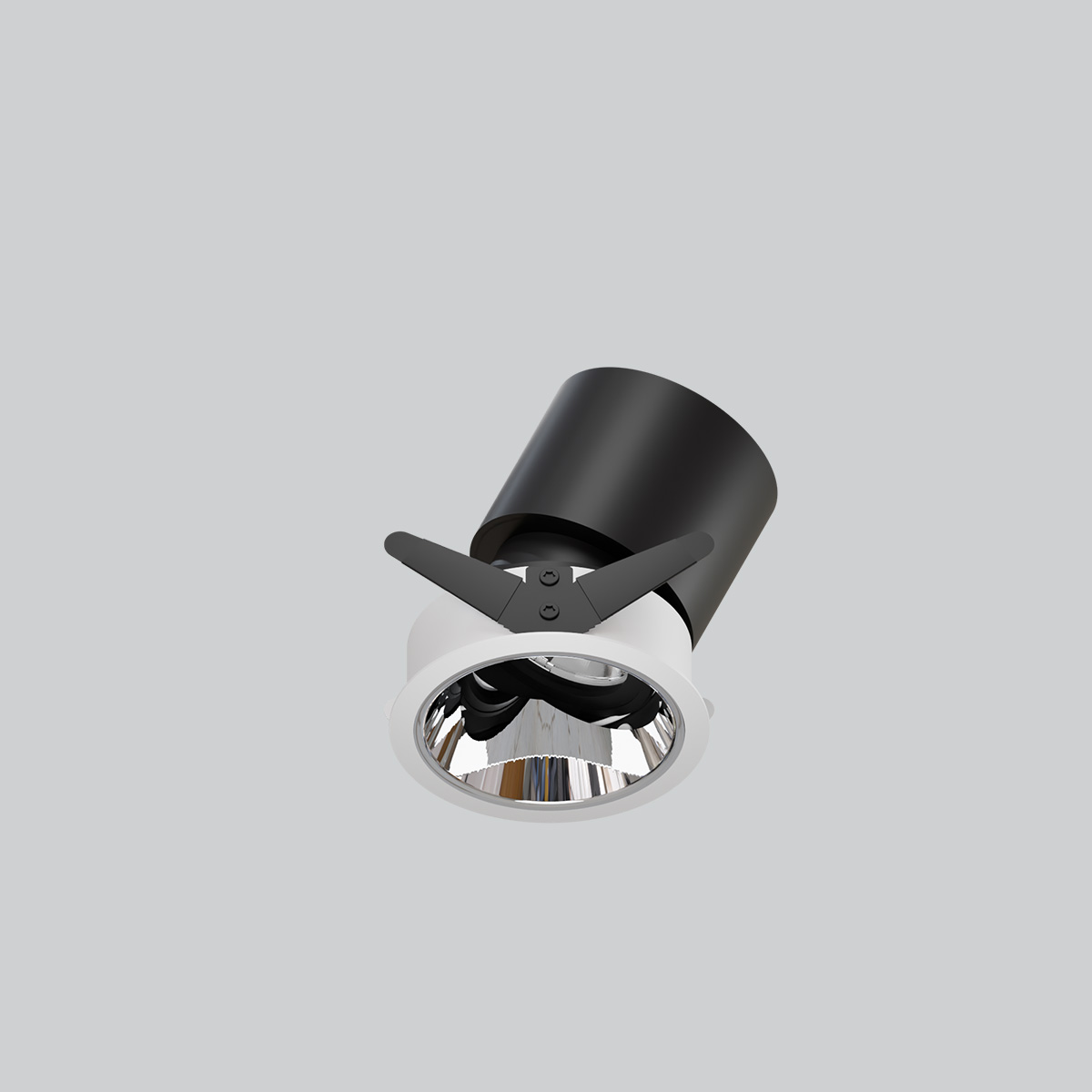

SILO 75
Wattage: 14W
Size: Ø114*95mm
Lumen Output: 1618lm
Beam Angle: 18° / 32° / 42° / 52°

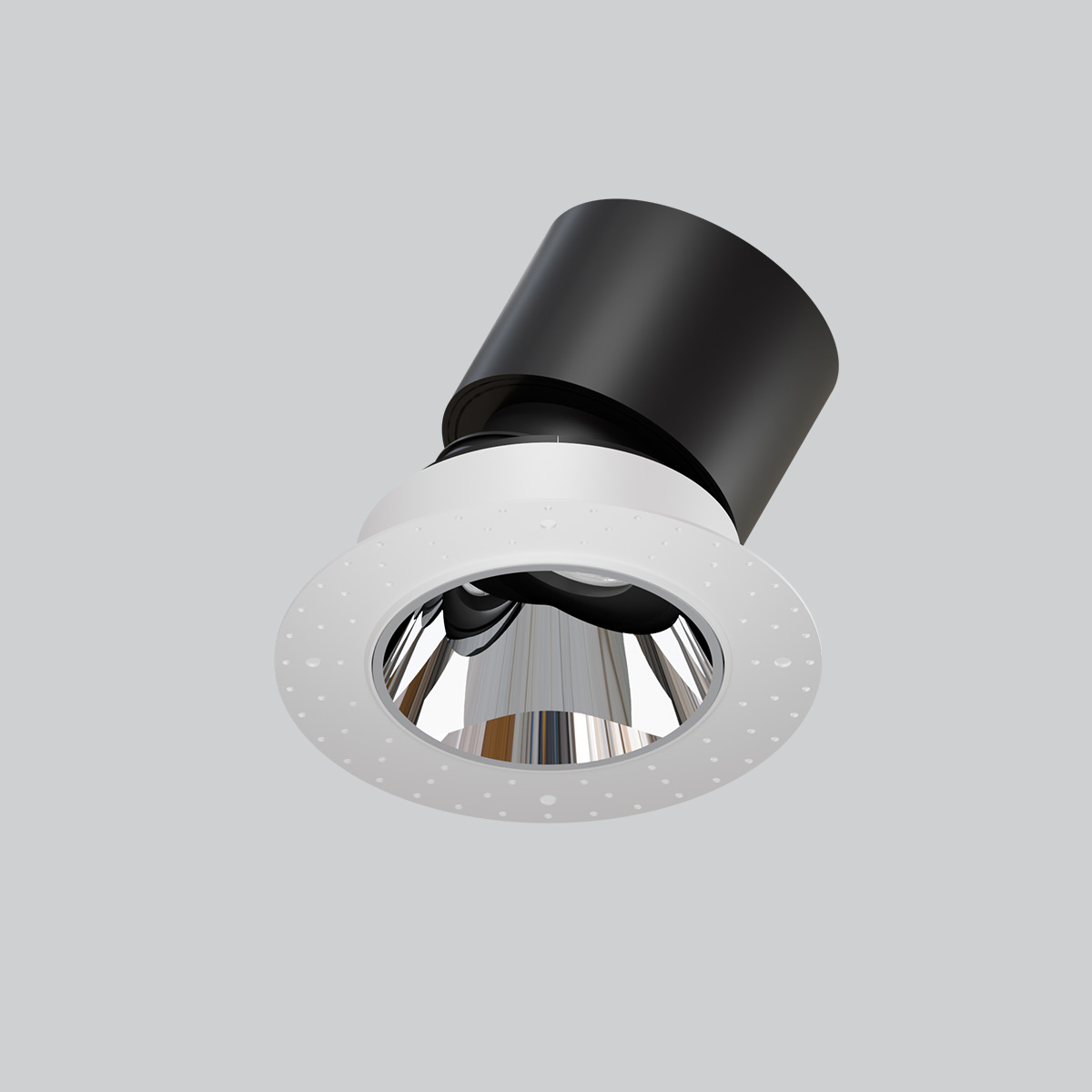

SILO 95
Wattage: 28W
Size: Ø135*140mm
Lumen Output: 2974lm
Beam Angle: 19° / 25° / 39° / 48°
Why Choose SILO
SILO helps designers create a consistent lighting language while matching the functional needs of real architectural projects.
With its focused product positioning and application-specific features, the system simplifies specification while supporting visual comfort, reliable performance and design flexibility.
Suitable for hotel / villa / luxury residential projects.
Characteristics
What defines SILO
Ultra-thin Trim Detail
The slim trim helps reduce visual weight and improve ceiling integration.
Curved Ceiling Fit
The curved frame is designed to sit naturally against the ceiling surface.
Removable Center Module
The center module supports practical maintenance while keeping a refined architectural look.
Applications
Where SILO Performs Best
SILO should be specified for luxury hotels, villas and high-end residential projects where ceiling detail, low-glare comfort and serviceable module design matter. Use it for refined interiors that need quiet downlighting rather than visible accent hardware.
Luxury Hotel Lighting
SILO suits luxury hotel interiors where guest comfort and refined ceiling details are critical, such as corridors, lift lobbies, suites, lounges and reception zones.
- Recommended mounting height: about 2.6–3.6 m for hotel rooms, corridors and public areas
- Why SILO fits: CNC housing, ultra-thin trim and removable center module support a premium ceiling detail
- Glare strategy: use low-brightness placement and dimming scenes for evening hospitality ambience
- Maintenance note: removable module design helps service planning in hotel operation
Villa Lighting
For villas, SILO works as a refined downlight layer for living rooms, dining areas, corridors and private rooms where glare control and clean ceiling appearance are more important than visible feature luminaires.
- Recommended mounting height: about 2.6–3.4 m for residential and villa interiors
- Use as part of layered lighting with coves, decorative fixtures or wall lights for ambience
- Control note: TRIAC or DALI scenes can support living/dining/private-room modes
- Installation limit: confirm cut-out, ceiling depth and driver position before decorative ceiling closure
High-end Residential Lighting
SILO supports high-end residential spaces where the downlight should almost disappear into the ceiling while still providing comfortable functional light.
- Recommended use: lounges, corridors, bedrooms, dressing areas and dining zones
- Select size by ceiling scale and required brightness; avoid over-sizing in quiet residential ceilings
- Avoid placing fittings directly above eye-level seating directions where glare may be noticed
- Use photometric files to confirm spacing and avoid uneven pools of light
Private Residence Lighting
In private residences, SILO is useful when the design requires a consistent premium downlight detail across multiple rooms with service access and flexible dimming options.
- Best for residential projects needing consistent trim detail and comfortable ambience
- Coordinate finish with ceiling colour and interior palette
- Confirm ON/OFF, TRIAC or DALI control before ordering so dimming behaviour matches the residence system
- Not intended as a decorative statement luminaire; use it for quiet architectural light
Projects
Projects using SILO
See how SILO delivers precision and performance in real-world projects.
Retail
LOTTE Shopping Mall Korea
SILO track lights were selected for precise beam control and high visual comfort, enhancing the shopping experience and product presentation.
Product usedSILO 75
Beam angle32°
ControlDALI
Retail

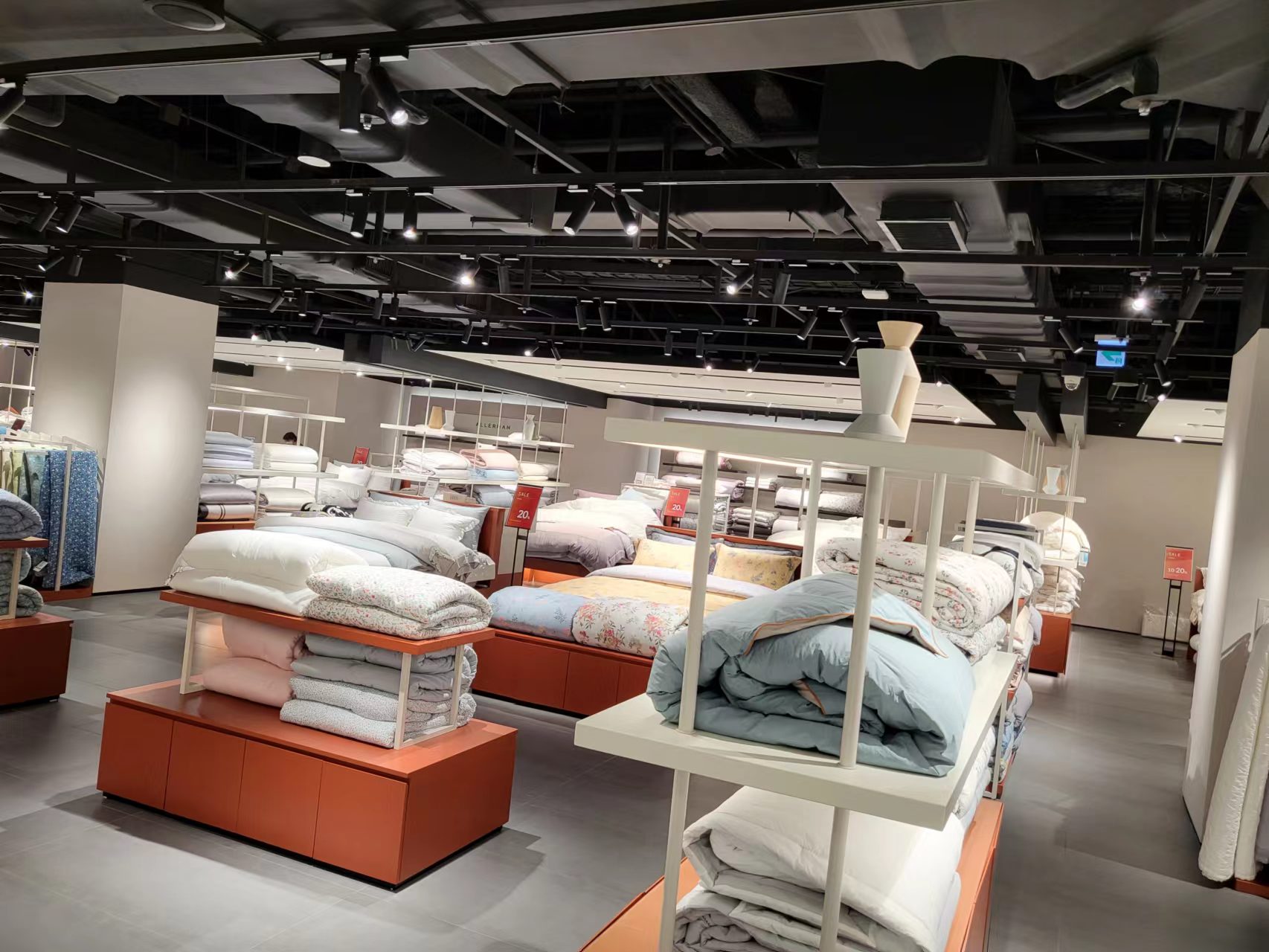

LOTTE Department Store
Custom beam angles and high CRI lighting bring out the true texture and colour of fabrics and materials, creating an elegant and inviting atmosphere.
Product usedSILO 55
Beam angle29°
ControlTRIAC
Retail
Xi'an Fashion Store
SILO provides uniform and comfortable lighting, supporting productivity while maintaining a clean architectural aesthetic.
Product usedSILO 55
Beam angle29°
ControlDALI
System catalogue
Download SILO system catalogue
Download the latest family catalogue, technical files and specification resources for this product system.
Project support
Request SILO for your next project
Get quotation support, samples and technical files for this product family.
