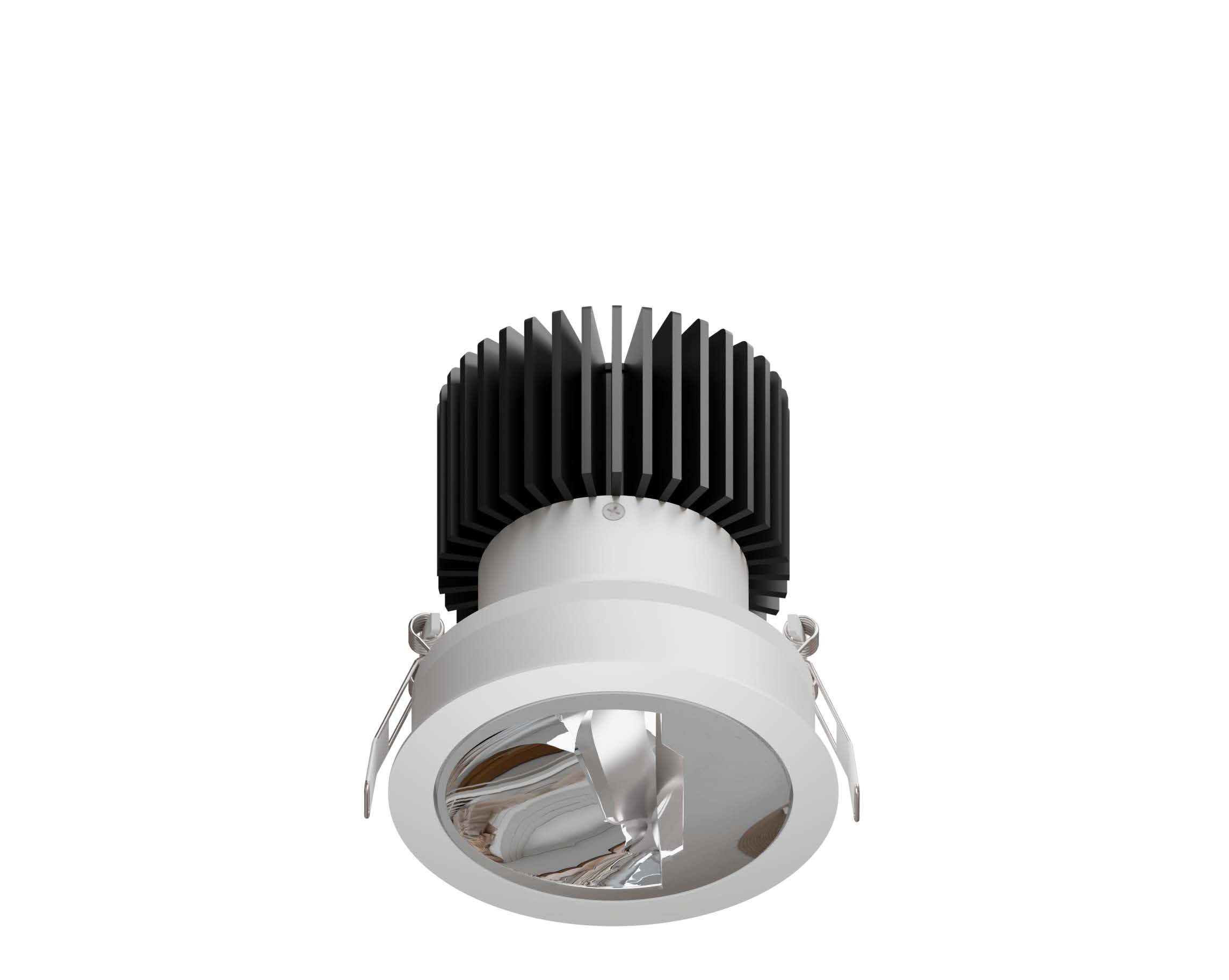

52.10512 WALLI Recessed Downlight
| Connected Load | 30W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | ww Tilted 20° Beam 40° |
| Cut Out | 105mm |

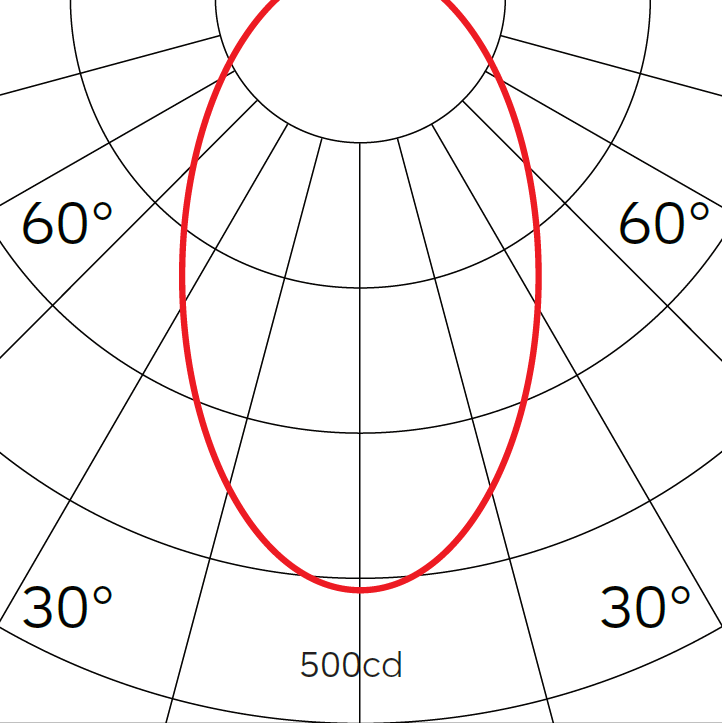

| Light Distribution | 52.10512 WALLI Recessed Downlight |
| Luminous Flux Of The Luminaire | 1707lm |
| Luminaire Efficacy | 58lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.9Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| WW | ||
| 1 | 500.38 | 0.64 |
| 2 | 125.10 | 1.28 |
| 3 | 55.60 | 1.92 |
| 4 | 31.27 | 2.57 |
| 5 | 20.02 | 3.21 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

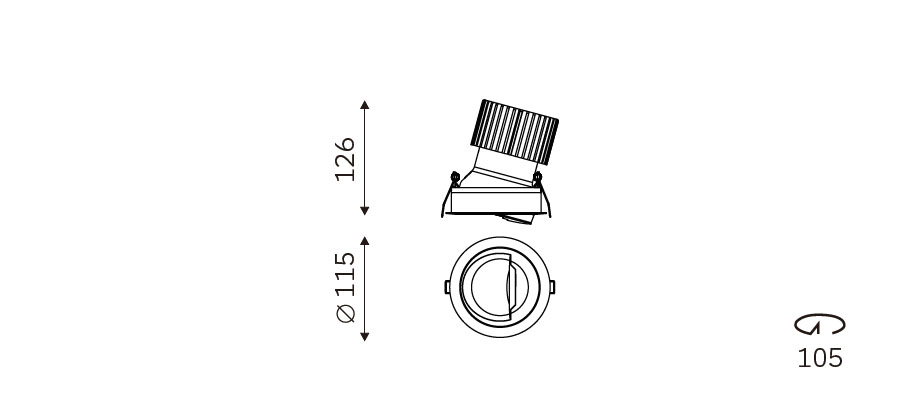

Technical Drawings
