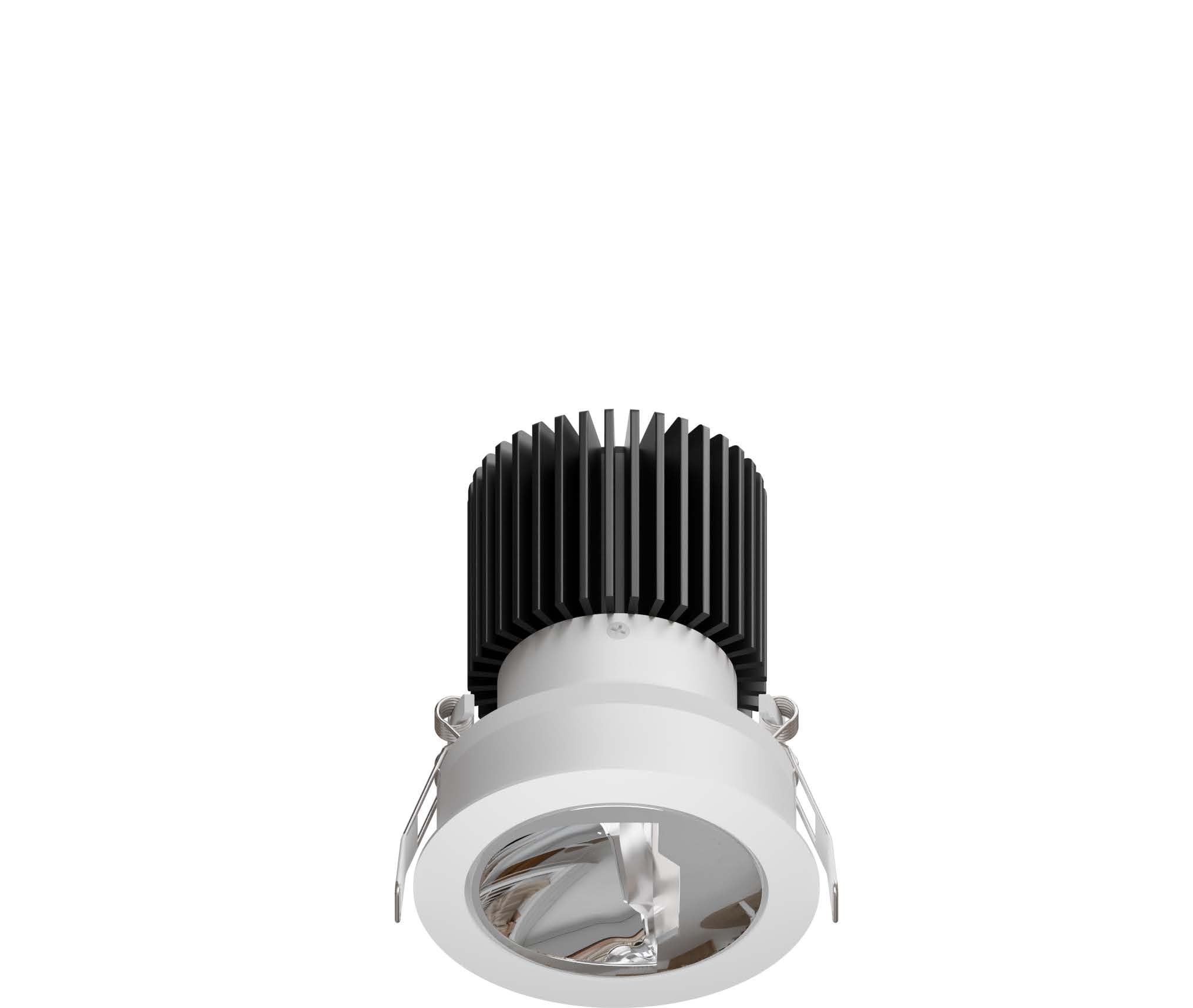

52.08525 WALLI Recessed Downlight
| Connected Load | 20W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | ww Tilted 25° Beam 51° |
| Cut Out | 85mm |
| Light Distribution | 52.08525 WALLI Recessed Downlight |
| Luminous Flux Of The Luminaire | 1366lm |
| Luminaire Efficacy | 67lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.7Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| WW | ||
| 1 | 411.66 | 0.73 |
| 2 | 102.92 | 1.45 |
| 3 | 45.74 | 2.18 |
| 4 | 25.73 | 2.90 |
| 5 | 16.47 | 3.63 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories

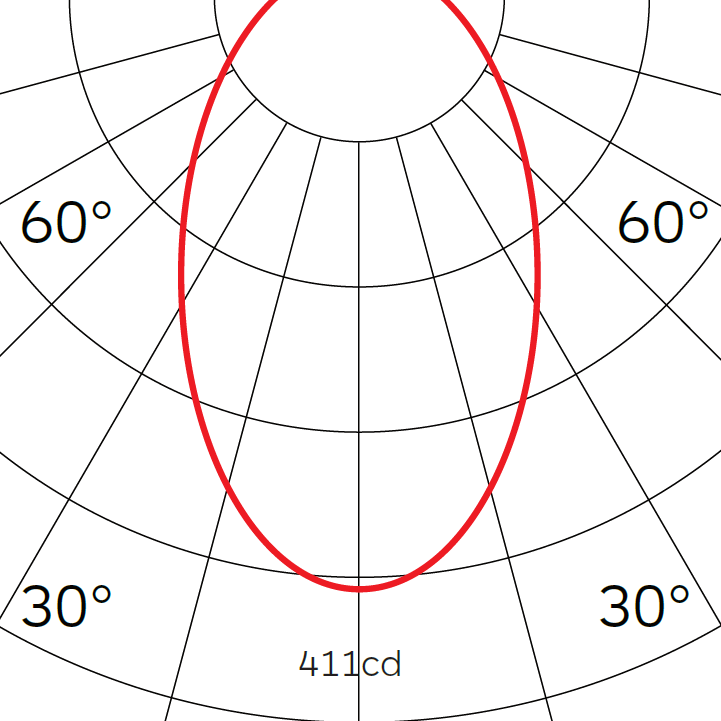

Photometric Files

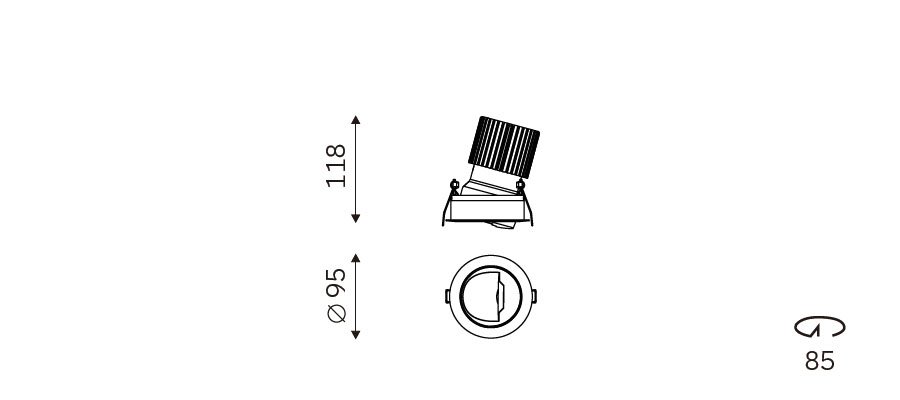

Technical Drawings
