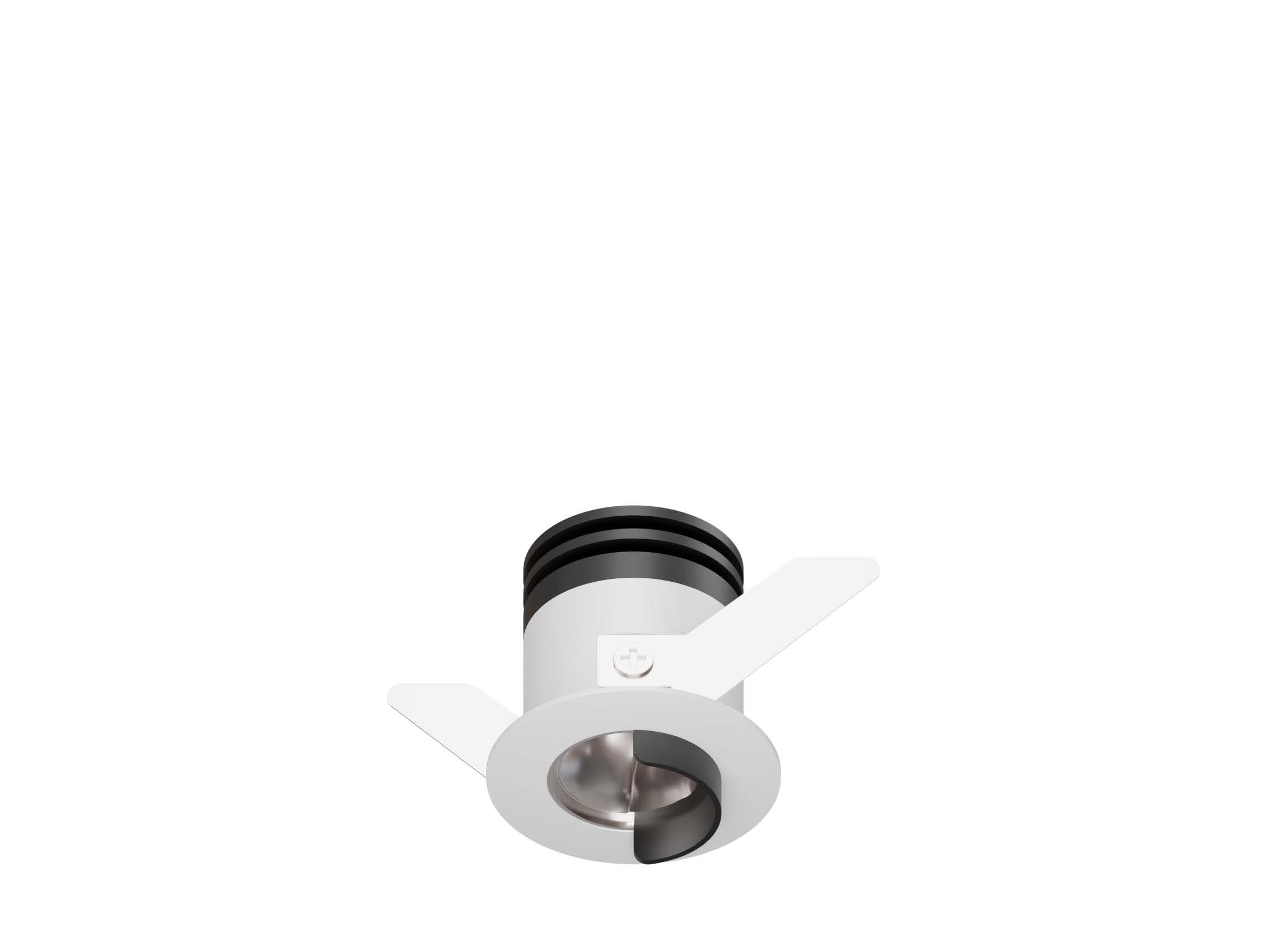

51.03027 SHOWLITE Recessed Downlight
| Connected Load | 4W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | Wall Washer |
| Cut Out | 30mm |

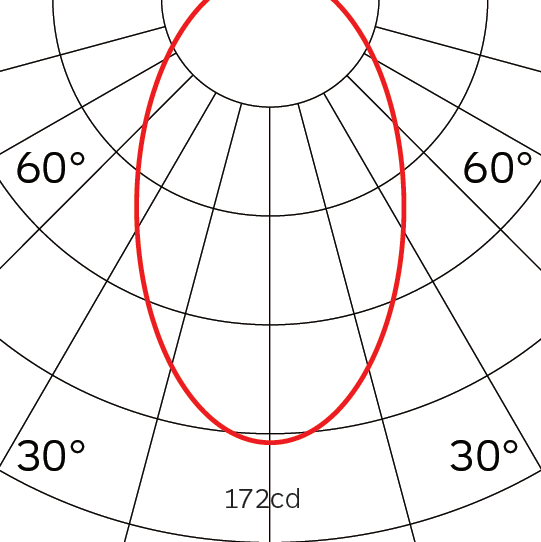

| Light Distribution | 51.03027 SHOWLITE Recessed Downlight |
| Luminous Flux Of The Luminaire | 150lm |
| Luminaire Efficacy | 37lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.2Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 45° | ||
| 1 | 172.68 | 0.82 |
| 2 | 43.17 | 1.63 |
| 3 | 19.19 | 2.45 |
| 4 | 10.79 | 3.26 |
| 5 | 6.91 | 4.08 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

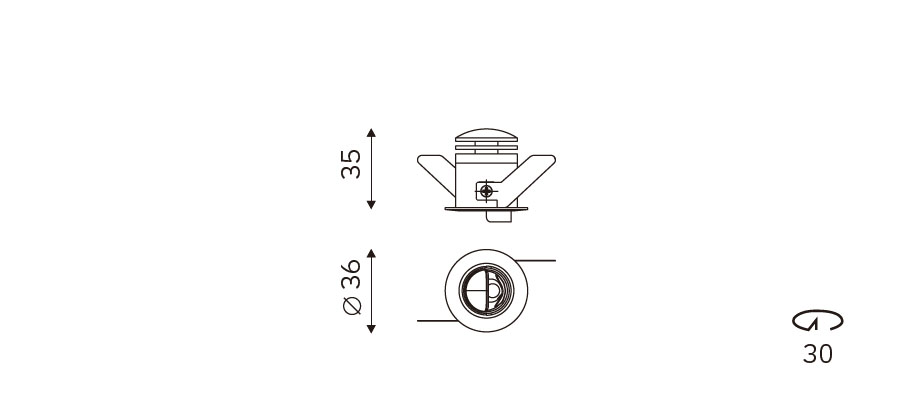

Technical Drawings
