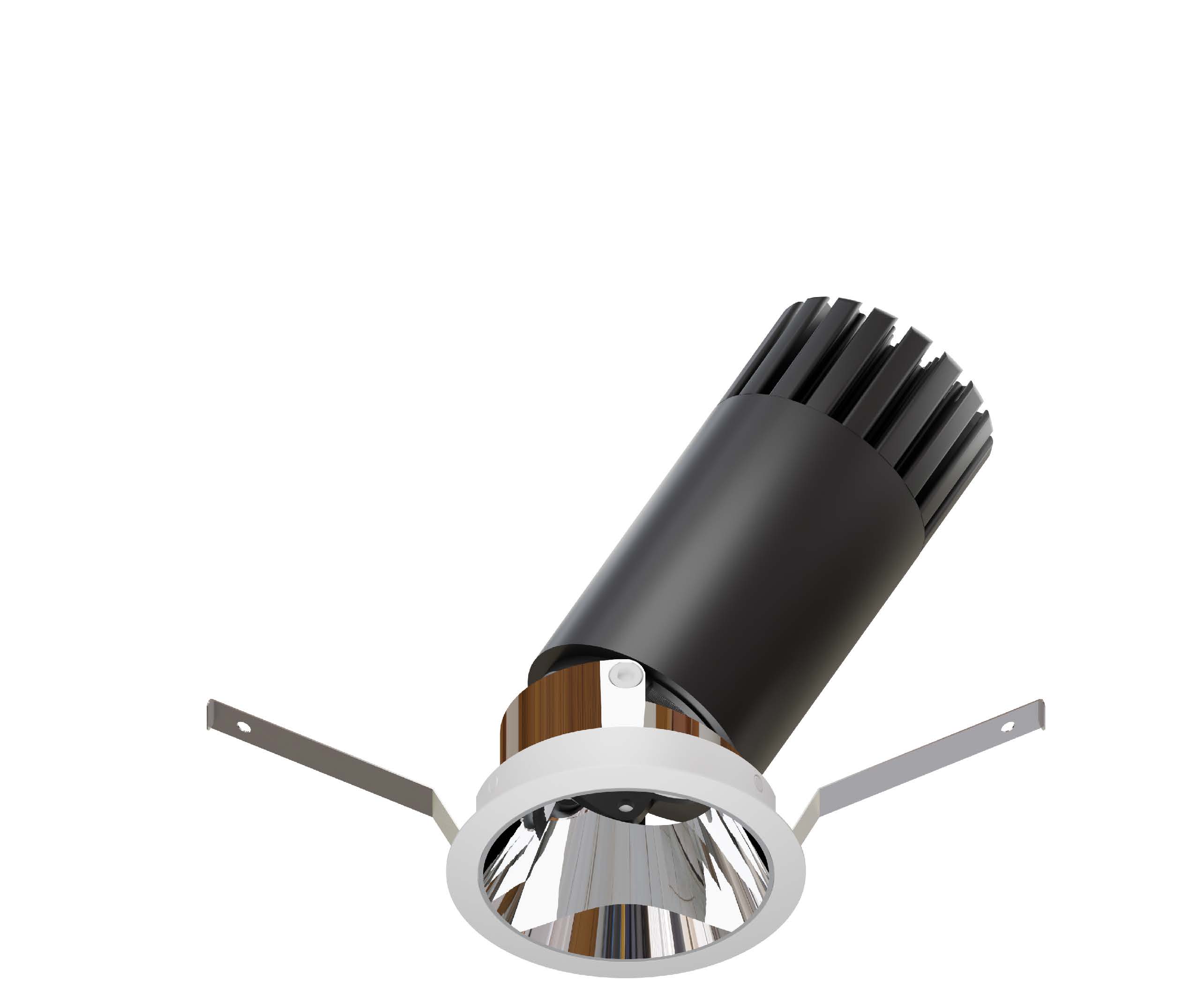

52.06513 OPTIMAX Recessed Downlight
| Connected Load | 14W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/30D/42D/51D |
| Cut Out | 65mm |

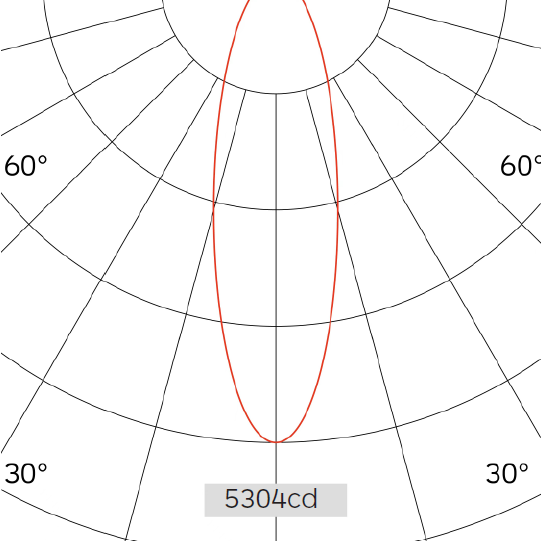

| Light Distribution | 52.06513 OPTIMAX Recessed Downlight |
| Luminous Flux Of The Luminaire | 1175lm |
| Luminaire Efficacy | 86lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 20° | ||
| 1 | 5304.05 | 0.35 |
| 2 | 1326.01 | 0.70 |
| 3 | 589.34 | 1.06 |
| 4 | 331.50 | 1.41 |
| 5 | 212.16 | 1.76 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

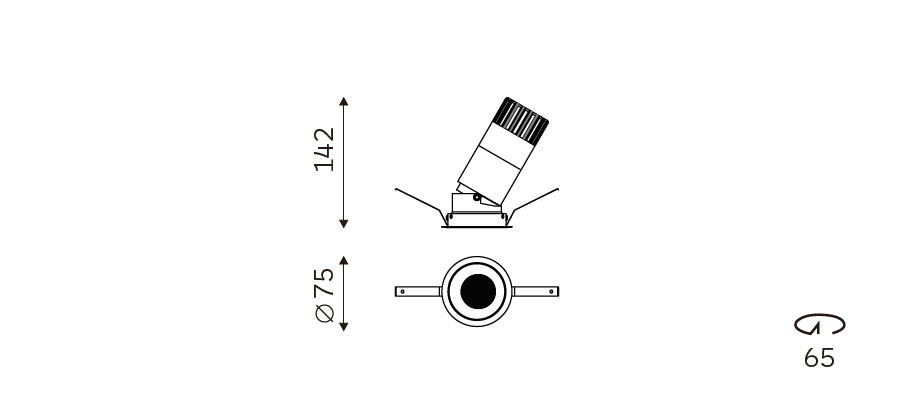

Technical Drawings
