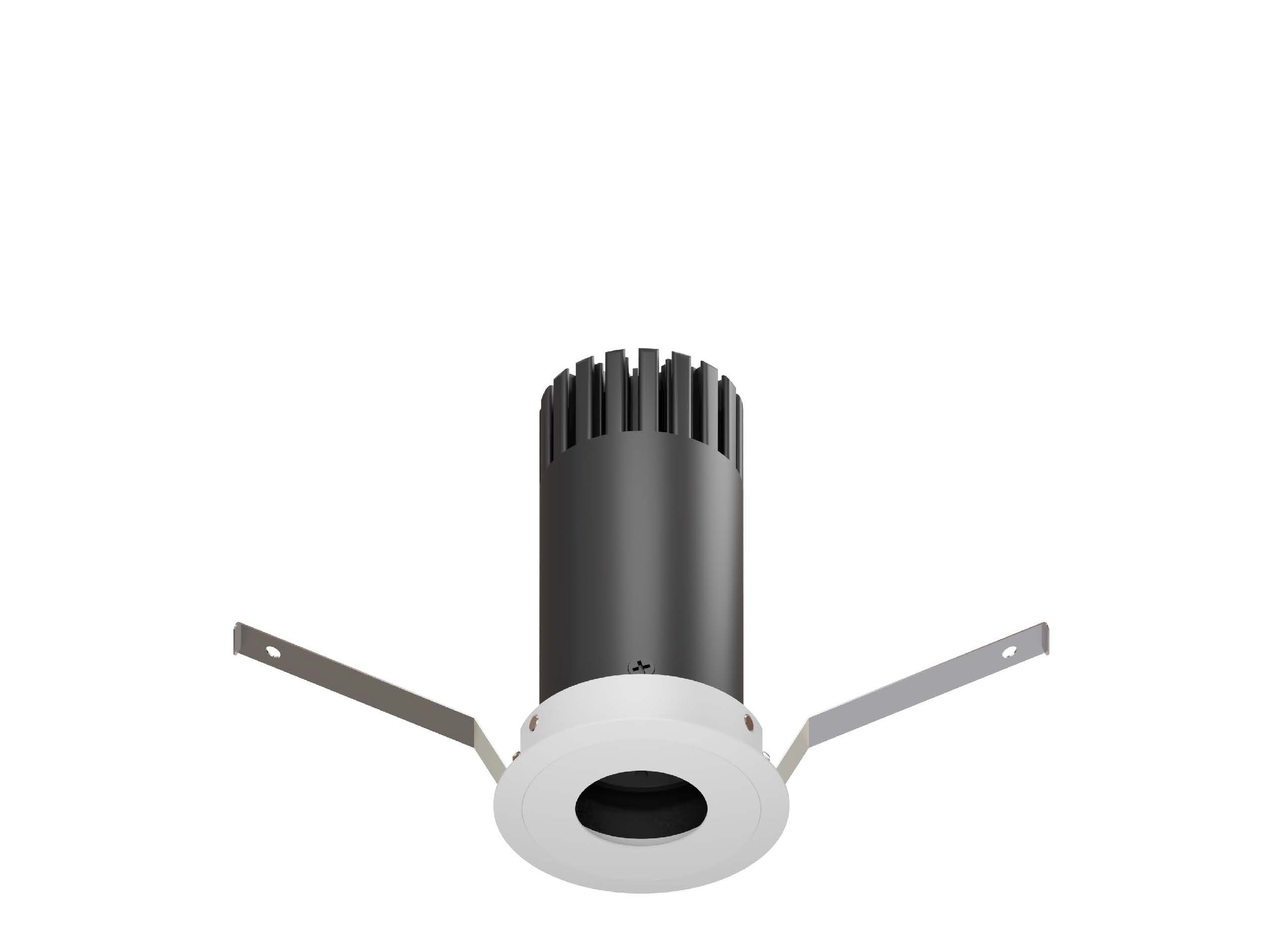

51.05012 OPTIMAX Recessed Downlight
| Connected Load | 8W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/25D/38D/47D |
| Cut Out | 50mm |

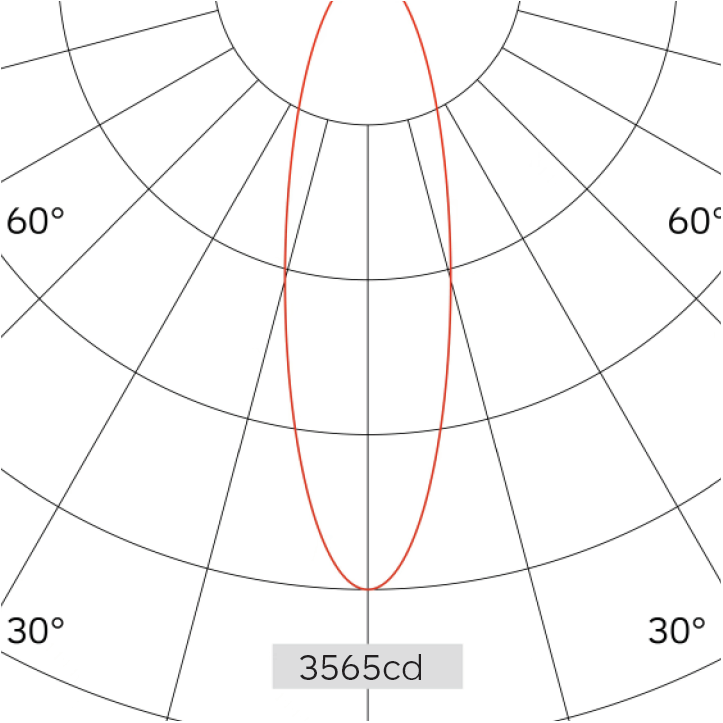

| Light Distribution | 51.05012 OPTIMAX Recessed Downlight |
| Luminous Flux Of The Luminaire | 514lm |
| Luminaire Efficacy | 62lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.4Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 17° | ||
| 1 | 3565.56 | 0.30 |
| 2 | 891.39 | 0.61 |
| 3 | 396.17 | 0.91 |
| 4 | 222.85 | 1.21 |
| 5 | 142.62 | 1.52 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

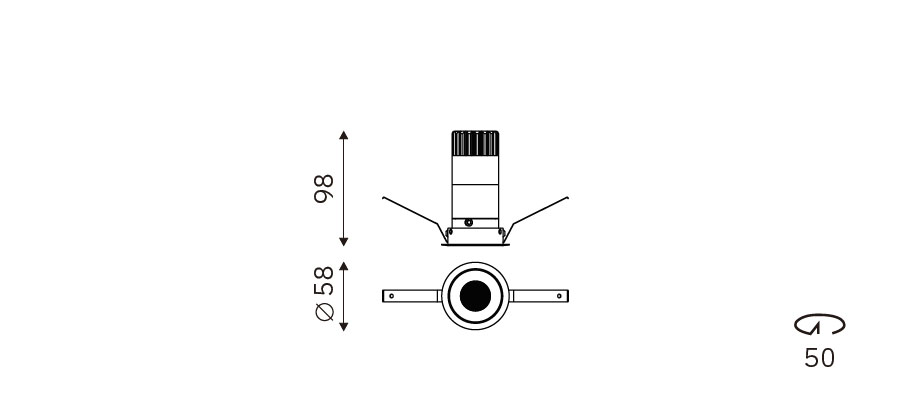

Technical Drawings
