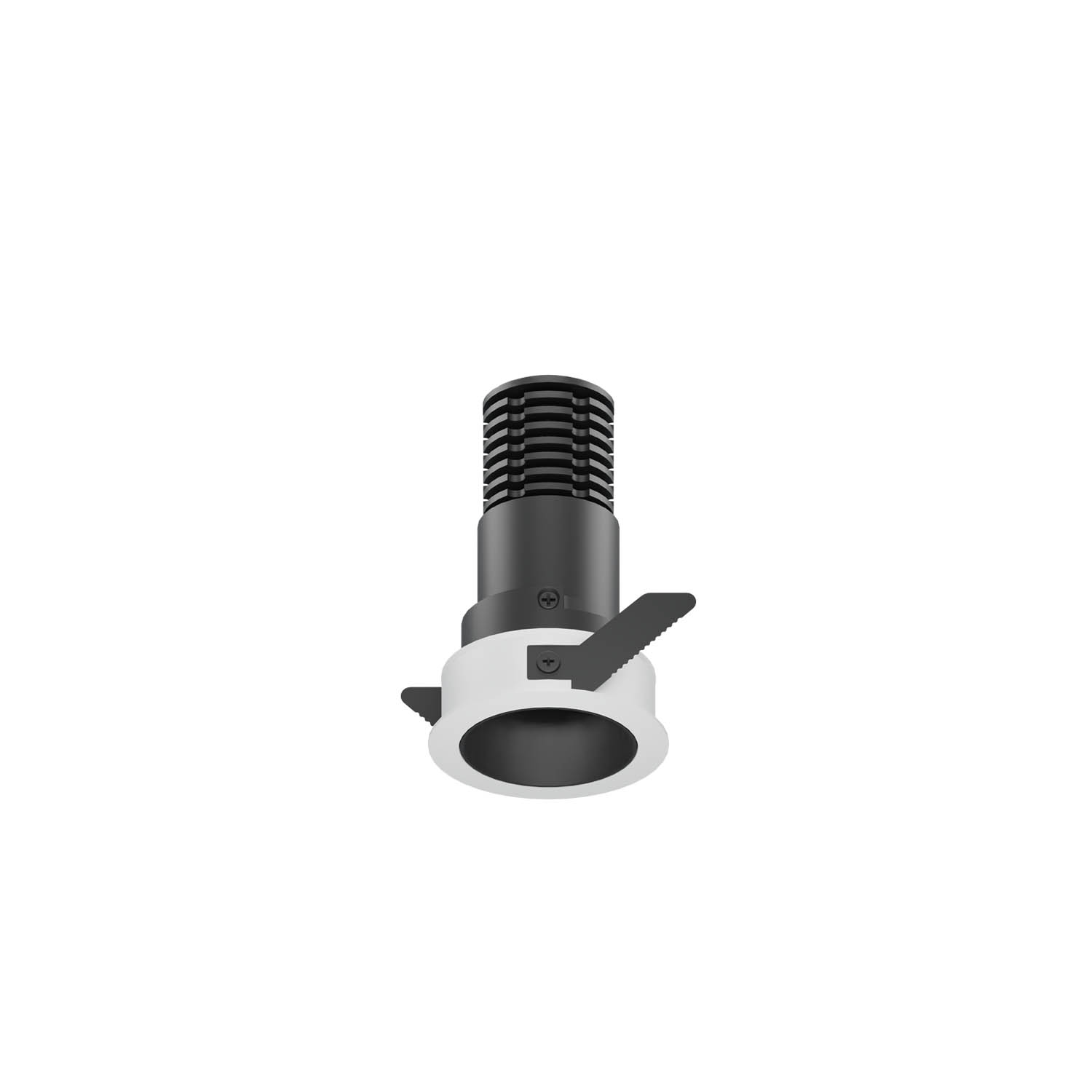

52.04512 MINI Recessed Downlight-Adjust
| Connected Load | 6W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 20D/25D/38D/54D |
| Cut out | 45mm |
| Light Distribution | 52.04512 MINI Recessed Downlight-Adjust |
| Luminous Flux Of The Luminaire | 384lm |
| Luminaire Efficacy | 61lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.2Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 20° | ||
| 1 | 2465 | 0.36 |
| 2 | 616 | 0.71 |
| 3 | 273 | 1.07 |
| 4 | 154 | 1.43 |
| 5 | 98 | 1.78 |
Application areas: High end residential and retail projects, hotels, museums and galleries.
