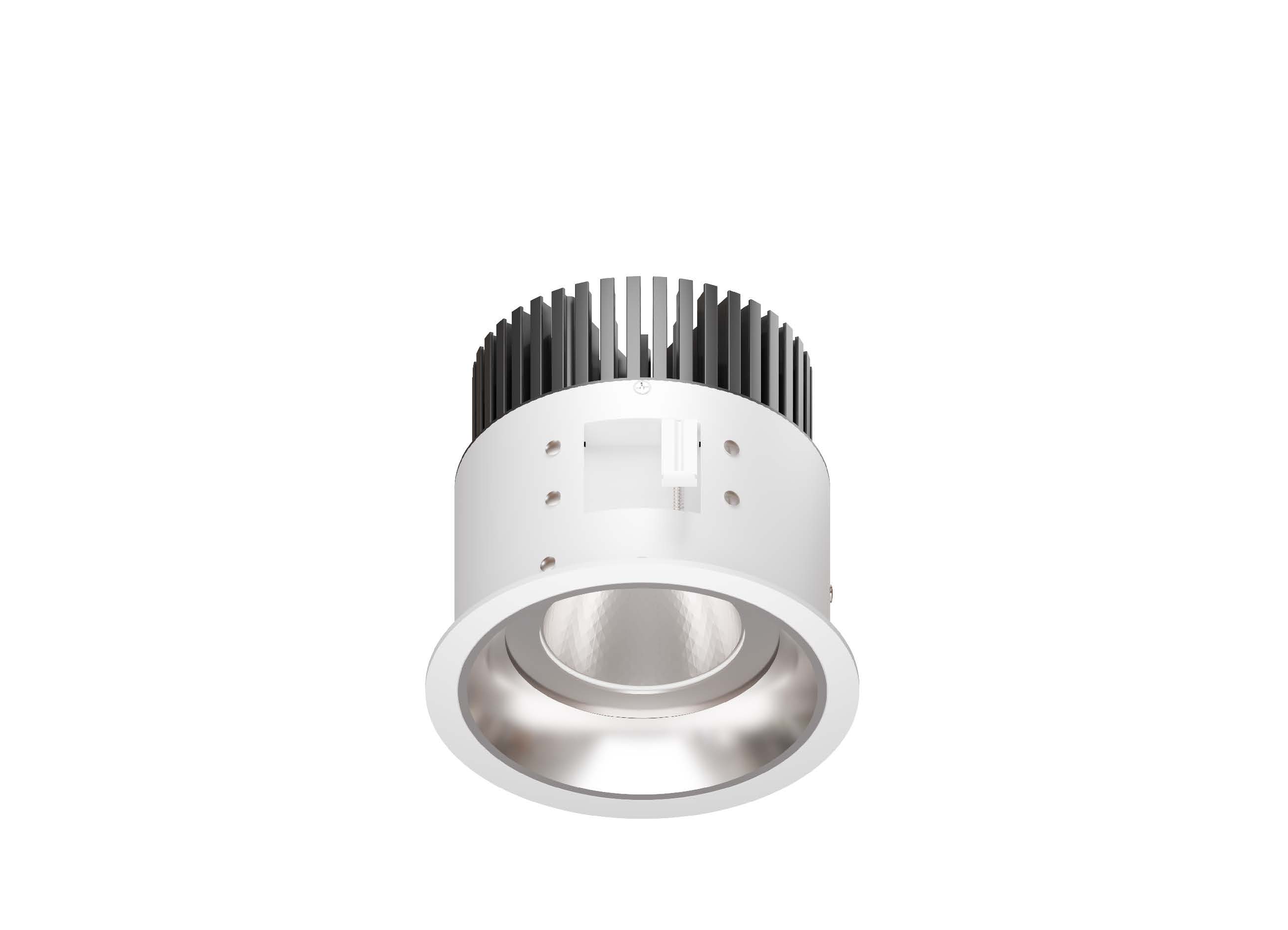

51.11011 HICORE Recessed Downlight
| Connected Load | 40W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 22D/42D/60D |

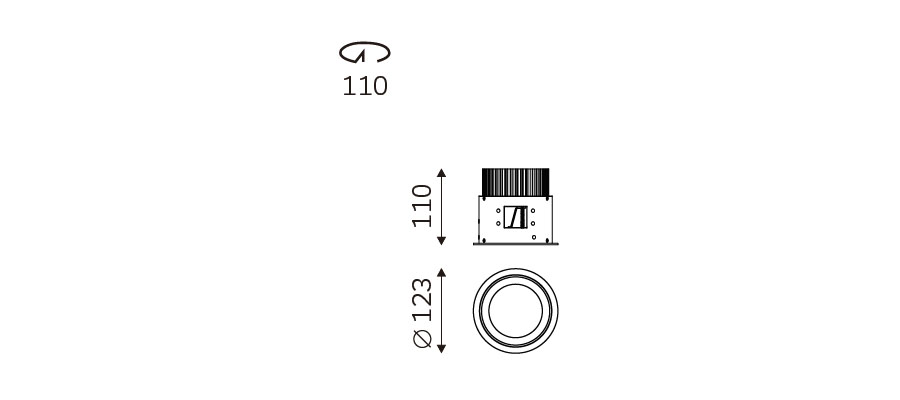

| Cut Out | 110mm |

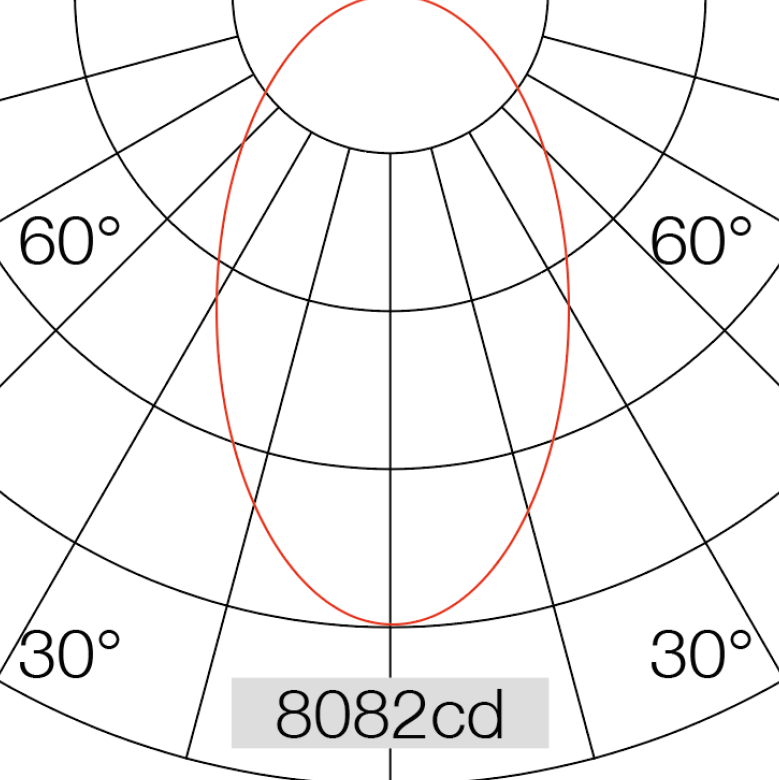

| Light Distribution | 51.11011 HICORE Recessed Downlight Trimless |
| Luminous Flux Of The Luminaire | 4769lm |
| Luminaire Efficacy | 116lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 1Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 60° | ||
| 1 | 5200.14 | 1.17 |
| 2 | 1300.04 | 2.34 |
| 3 | 577.79 | 3.51 |
| 4 | 325.01 | 4.68 |
| 5 | 208.01 | 5.85 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
