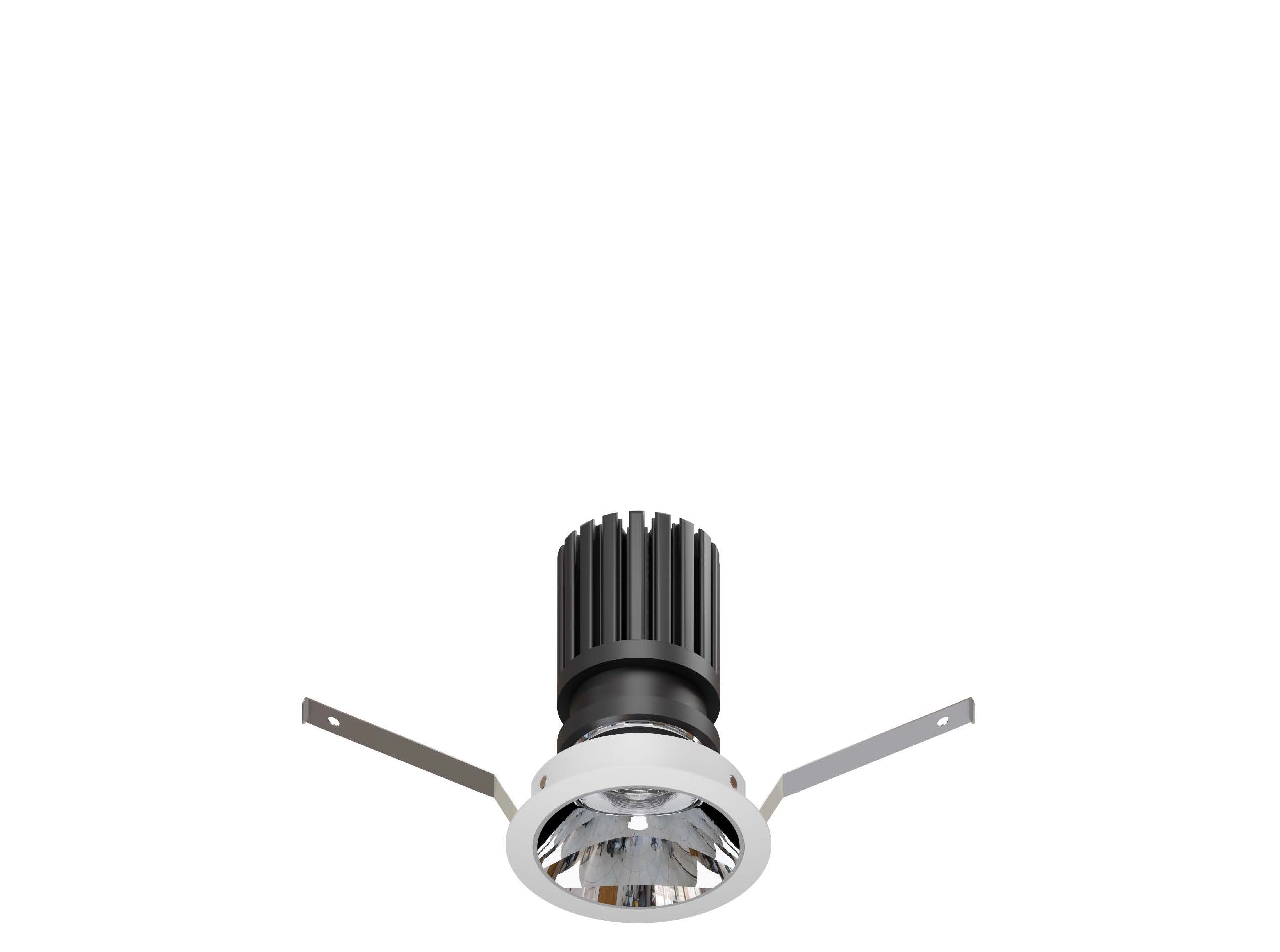

51.05521 FLEXI Recessed Downlight
| Connected Load | 9W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 15D/22D/37D/49D |
| Cut Out | 55mm |

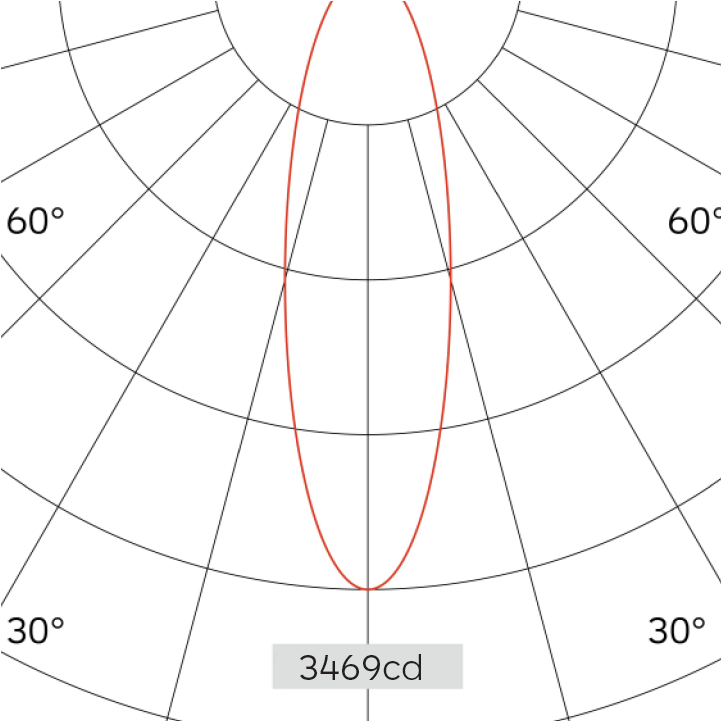

| Light Distribution | 51.05521 FLEXI Recessed Downlight |
| Luminous Flux Of The Luminaire | 625lm |
| Luminaire Efficacy | 69lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 22° | ||
| 1 | 3469.48 | 0.39 |
| 2 | 867.37 | 0.78 |
| 3 | 385.50 | 1.17 |
| 4 | 216.84 | 1.56 |
| 5 | 138.78 | 0.95 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

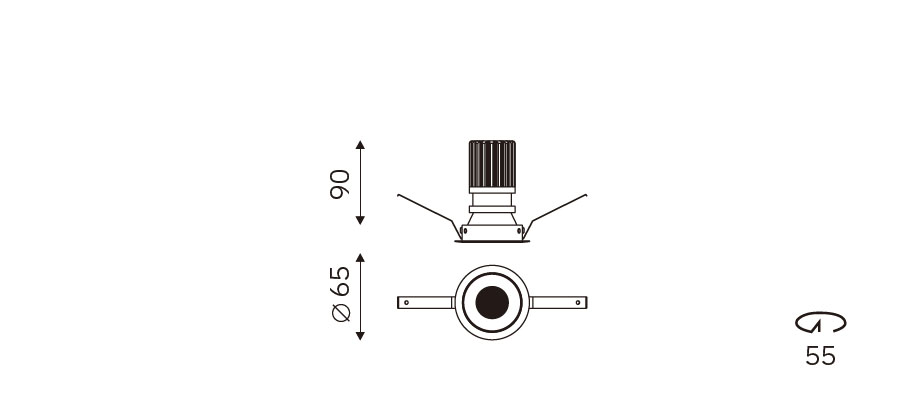

Technical Drawings
