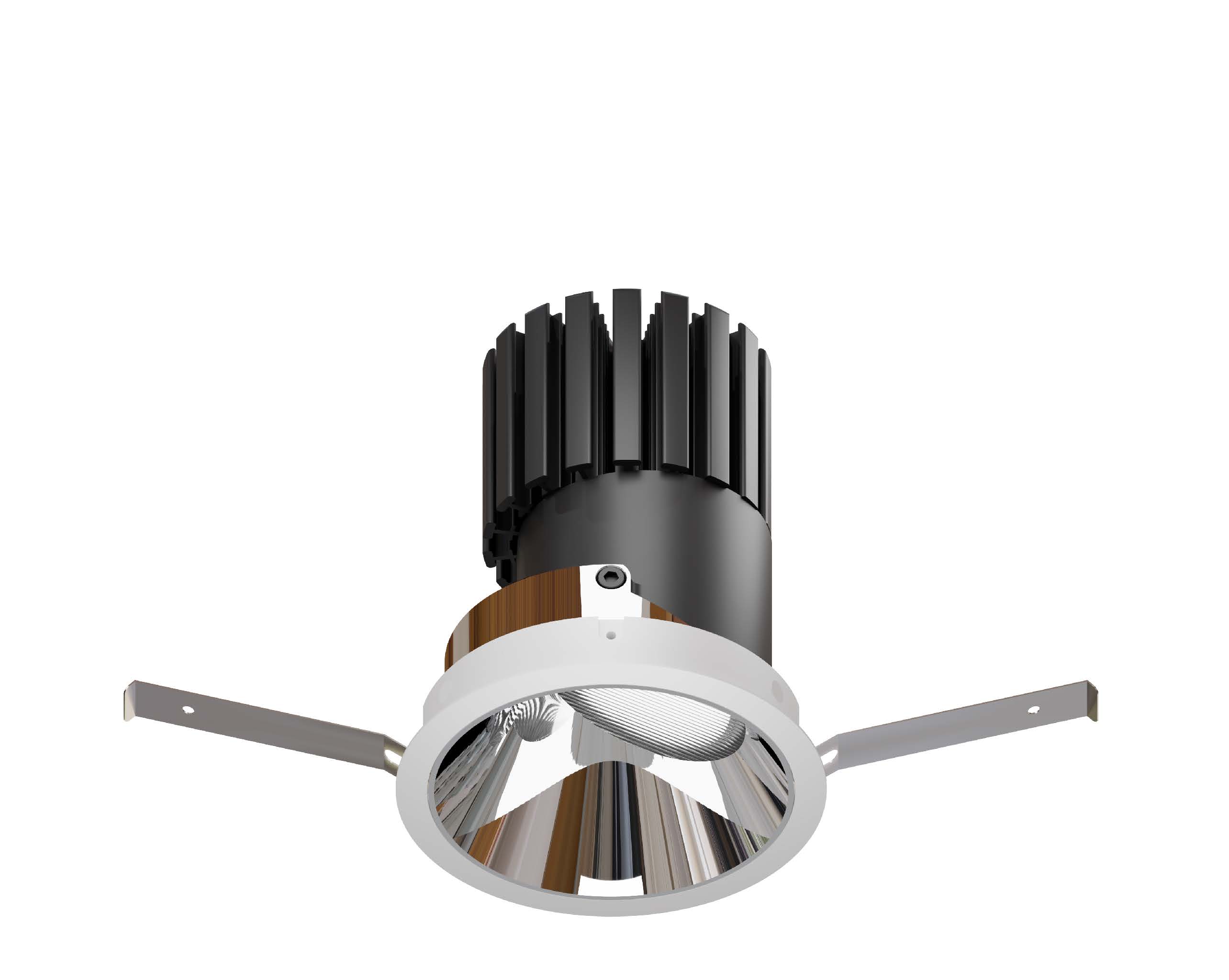

51.10013 FLEXI Recessed Downlight
| Connected Load | 28W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | ww Tilted 22° Beam 52° |
| Cut Out | 100mm |
| Light Distribution | 51.10013 FLEXI Recessed Downlight |
| Luminous Flux Of The Luminaire | 1754lm |
| Luminaire Efficacy | 62lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.9Kg |
| Technical Region | 220-240V 50/60Hz |

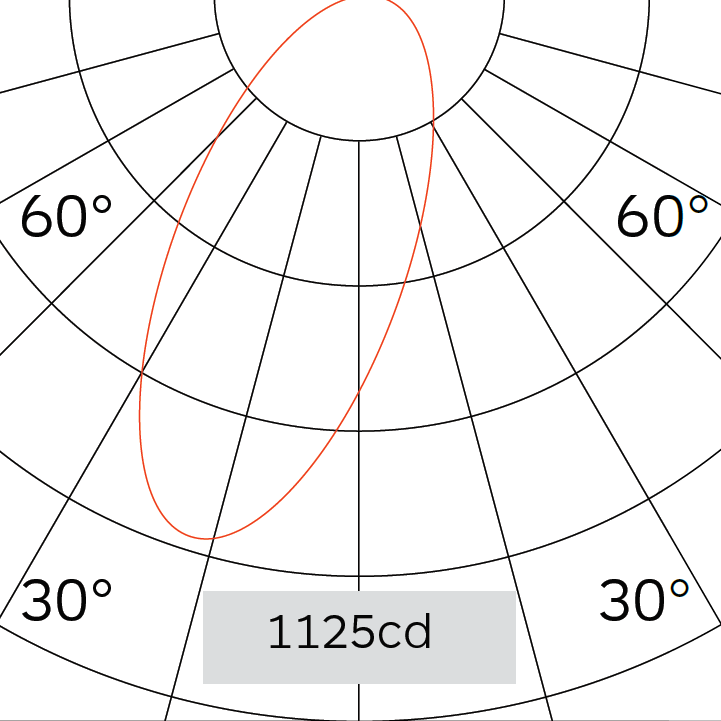

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| ww | ||
| 1 | 1125.53 | 1.14 |
| 2 | 281.38 | 2.28 |
| 3 | 125.06 | 3.43 |
| 4 | 70.35 | 4.57 |
| 5 | 45.02 | 5.71 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

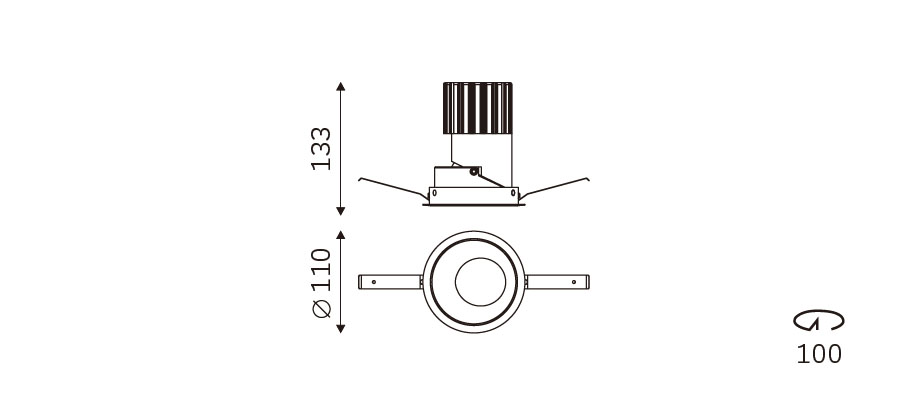

Technical Drawings
