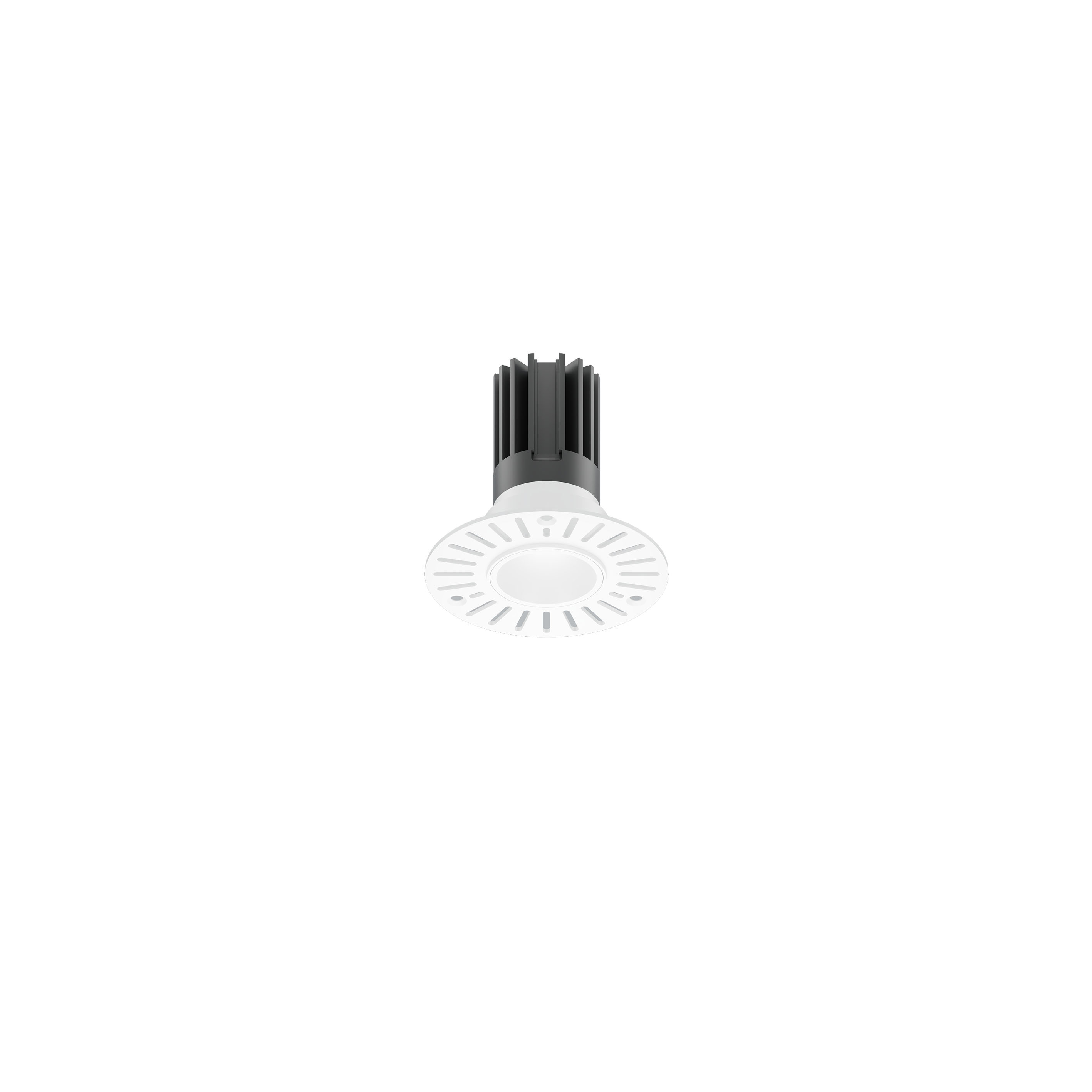

60.04513 MINI PRO Recessed Downlight Trimless
| Connected Load | 8W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/22D/32D/45D |
| Cut Out | 45mm |

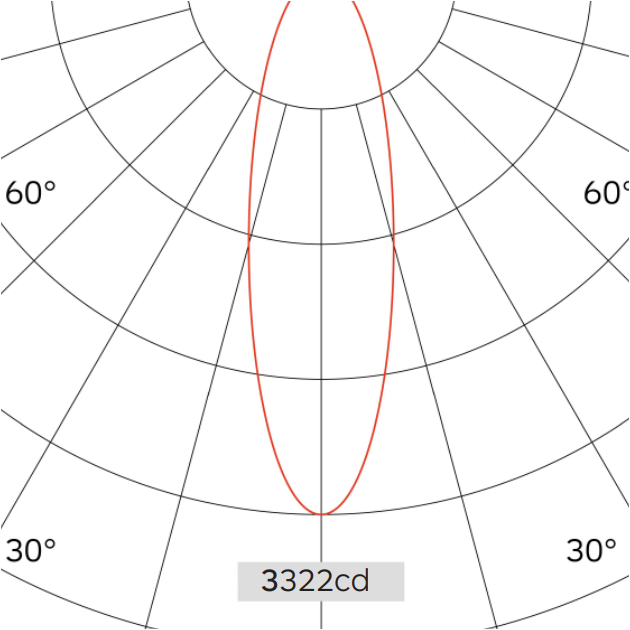

| Light Distribution | 60.04513 Mini Pro Recessed Downlight Trimless |
| Luminous Flux Of The Luminaire | 608lm |
| Luminaire Efficacy | 76lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.2Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 22° | ||
| 1 | 3322.93 | 0.39 |
| 2 | 830.73 | 0.77 |
| 3 | 369.21 | 1.16 |
| 4 | 207.68 | 1.54 |
| 5 | 132.92 | 1.93 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories
Photometric Files

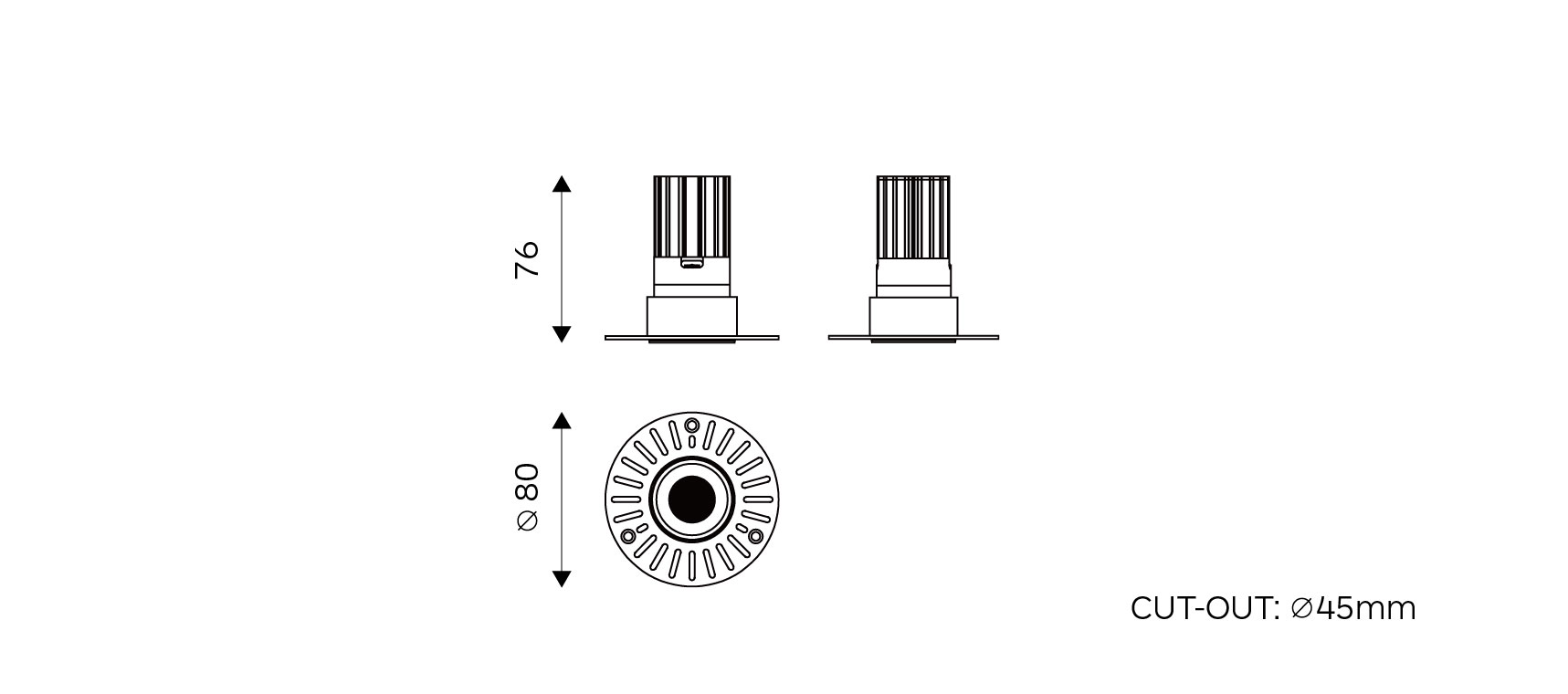

Technical Drawings
