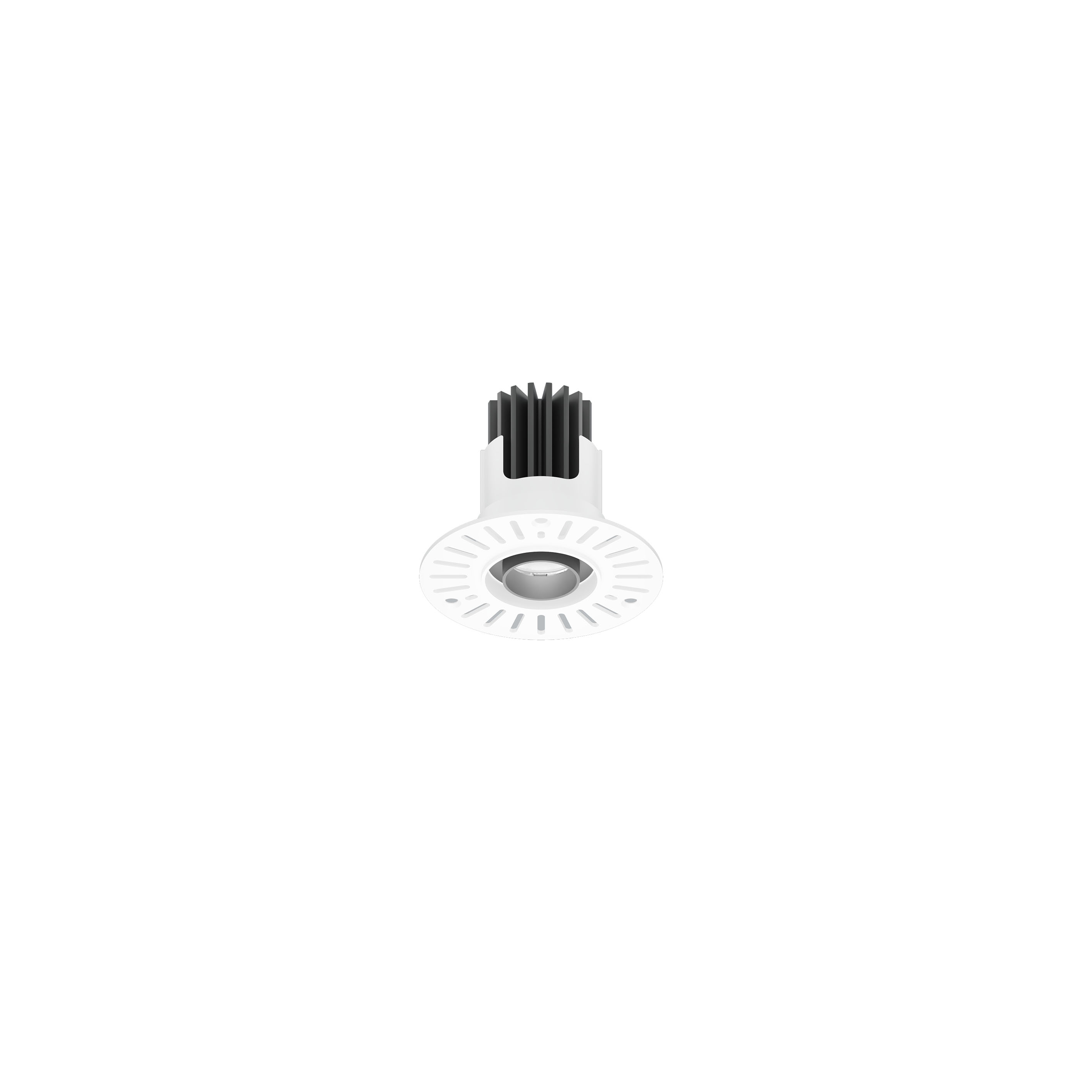

60.04512 MINI PRO Recessed Downlight Trimless
| Connected Load | 8W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/23D/34D/55D |
| Cut Out | 45mm |
| Light Distribution | 60.04512 Mini Pro Recessed Downlight Trimless |
| Luminous Flux Of The Luminaire | 684lm |
| Luminaire Efficacy | 85.5lm/W |
| Colour Deviation | SDCM＜5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/ 0-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Matt White/ Matt Black |
| Weight | 0.5Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 23° | ||
| 1 | 3503.07 | 0.40 |
| 2 | 875.77 | 0.80 |
| 3 | 389.23 | 1.20 |
| 4 | 218.94 | 1.60 |
| 5 | 140.12 | 2.00 |
Application areas: Commercial spaces, malls,stores, retail projects, hotels, museums and gyms.
Suitable accessories

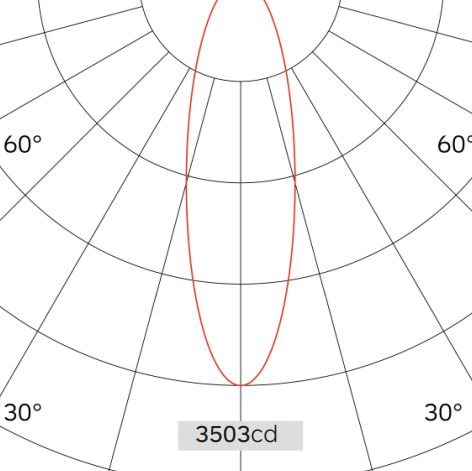

Photometric Files

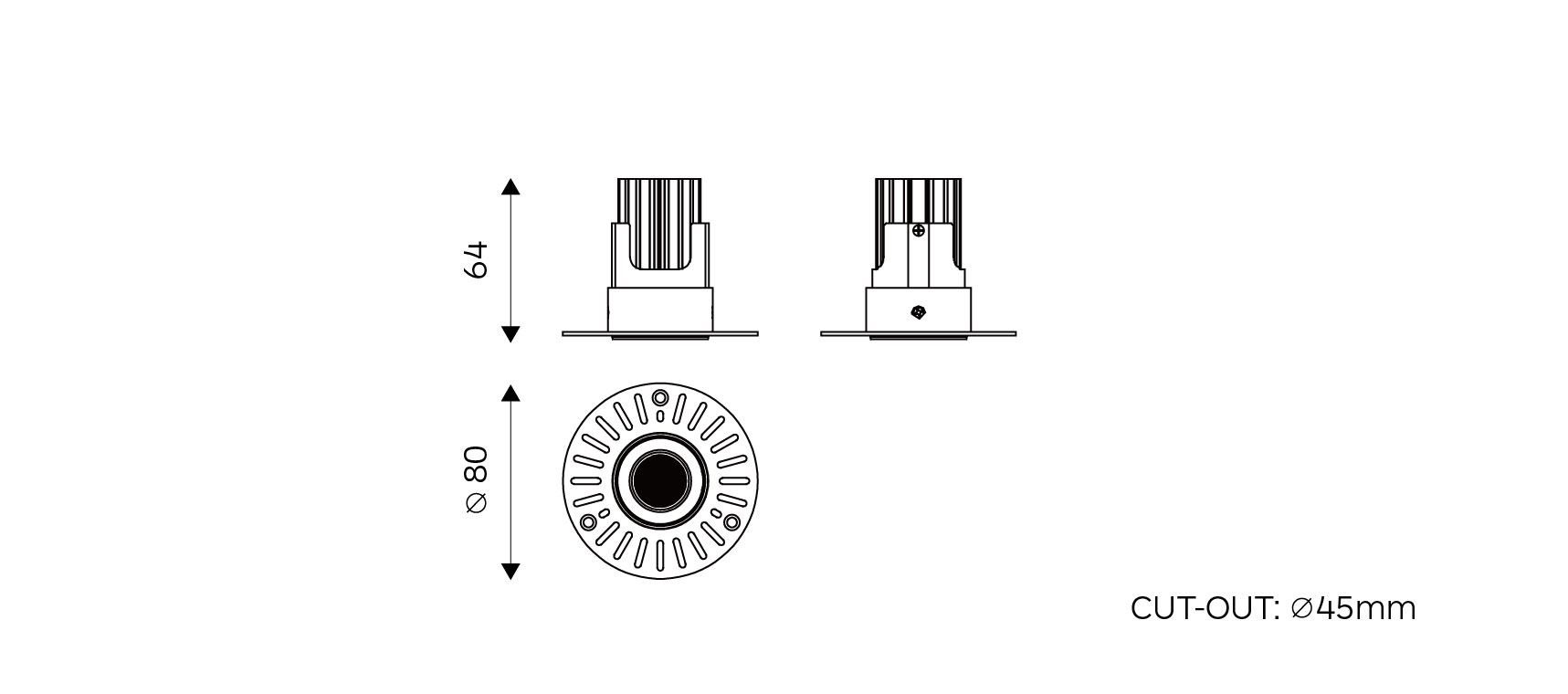

Technical Drawings
